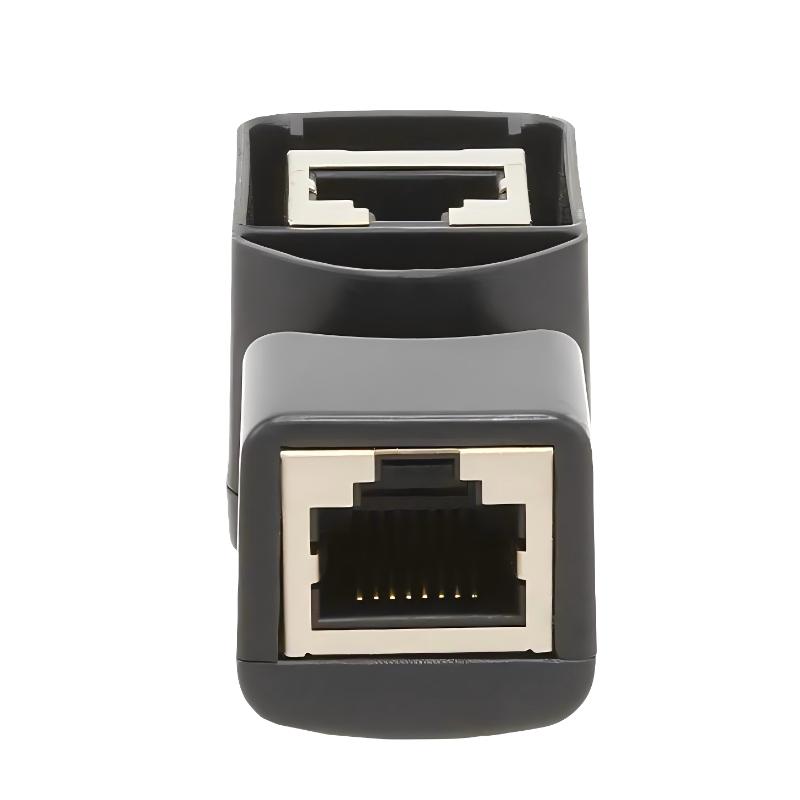

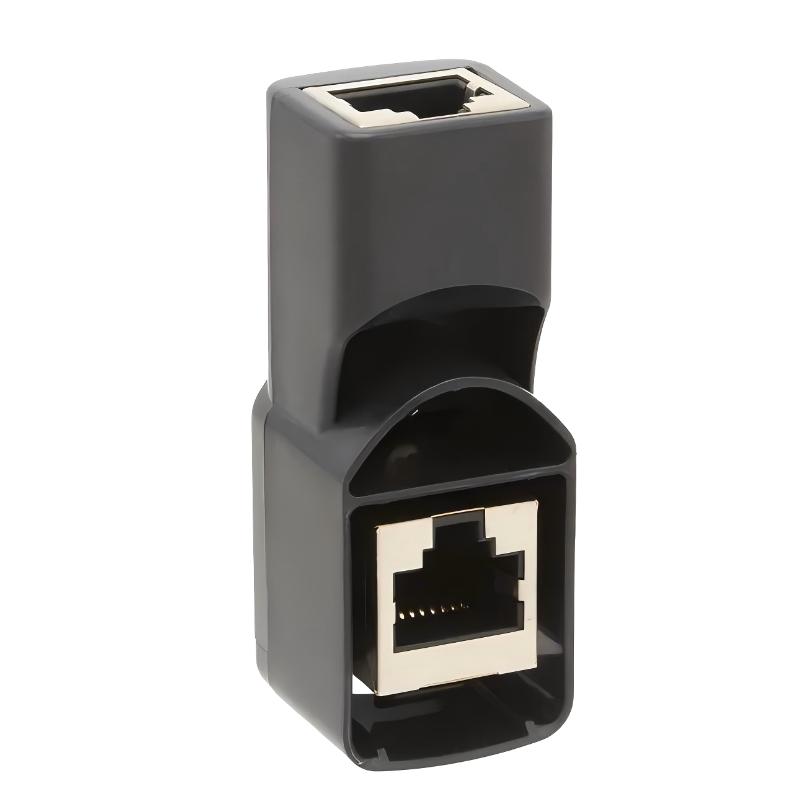

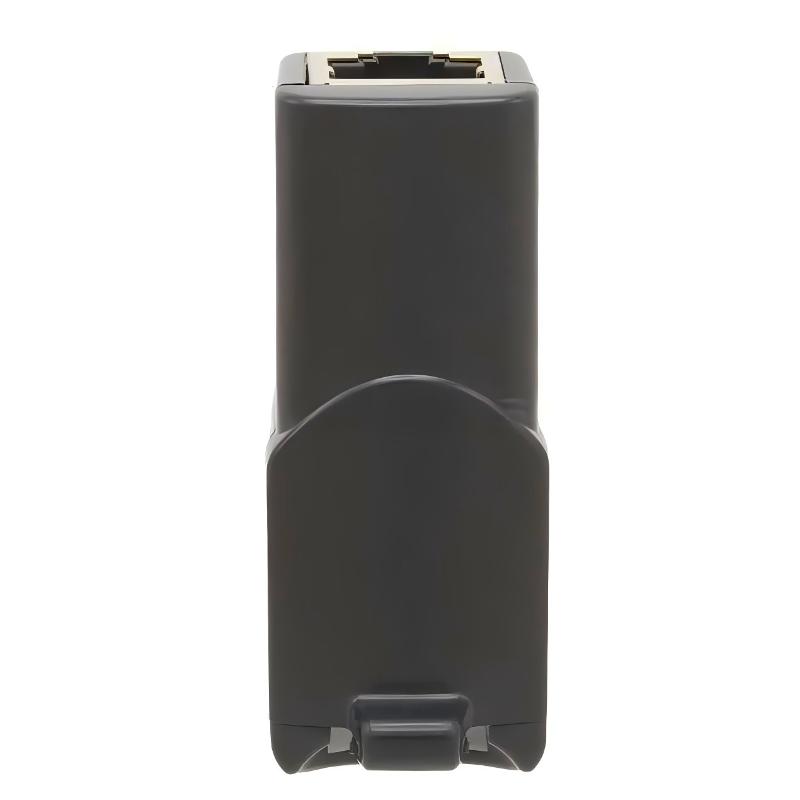

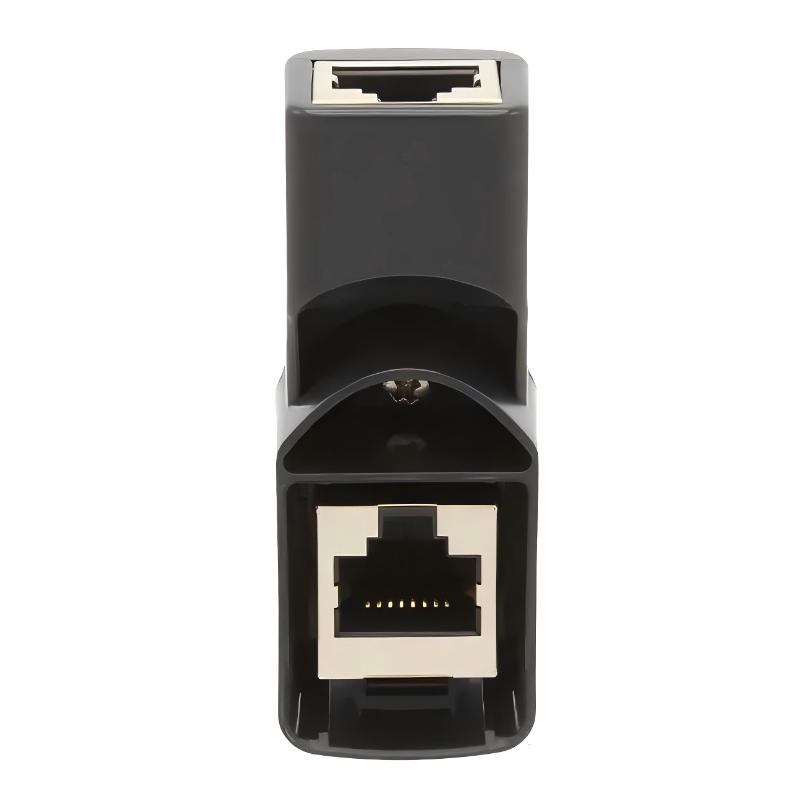

The Schneider VW3A1105 is a compact and essential RJ45 female-to-female adapter designed for Altivar variable speed drive systems, enabling reliable connection of remote graphic terminals. It is typically used together with remote display units and connection cables to extend communication between the drive and operator interface. With its simple plug-and-play design, this adapter ensures stable signal transmission and flexible installation in industrial automation environments.
Technical Specifications
| Specification | Detail |
|---|
| Model | VW3A1105 |
| Module Type | RJ45 Adapter / Communication Accessory |
| Product Range | Altivar |
| Function | Connection adapter for remote graphic terminal |
| Connector Type | RJ45 female to RJ45 female |
| Number of Ports | 2 |
| Compatibility | Altivar 12, 32, 312, 61, 71, ATV320, ATV340 |
| Compatible Accessories | VW3A1101, VW3A1104Rxx remote cables |
| Installation | Inline connection (plug-and-use) |
| Dimensions (L×W×H) | 28×20×15 mm |
| Weight | 0.01 kg |
| Material Type | Industrial-grade plastic housing |
| Operating Environment | Industrial control cabinets |
| Protection Rating | IP20 |
| Lifecycle Status | Active |
Recommended Related Models
| Model | Why It’s Recommended |
|---|
| VW3A1101 | Remote graphic terminal used with this adapter |
| VW3A1104R10 | 10 m connection cable for remote installation |
| VW3A1104R30 | 30 m cable for extended distance |
| VW3A1007 | IP65 keypad terminal for harsh environments |
Popular Schneider Altivar Series
| Series | Key Strength |
|---|
| Altivar 12 | Compact drive for simple applications |
| Altivar 32 | General-purpose industrial drive |
| Altivar 312 | Flexible and energy-efficient control |
| Altivar Machine ATV320 | Advanced machine automation drive |
