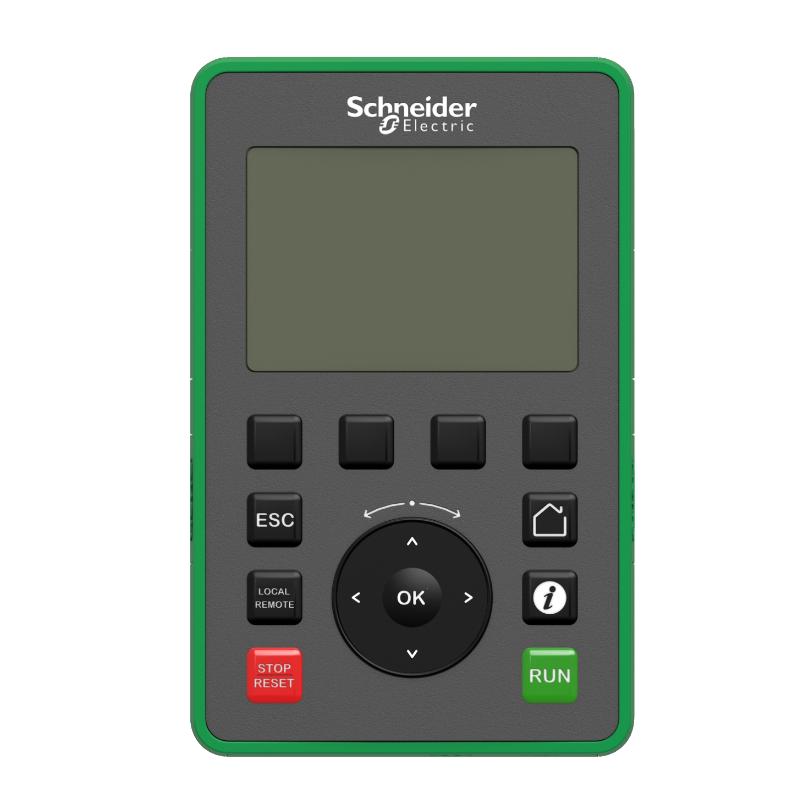

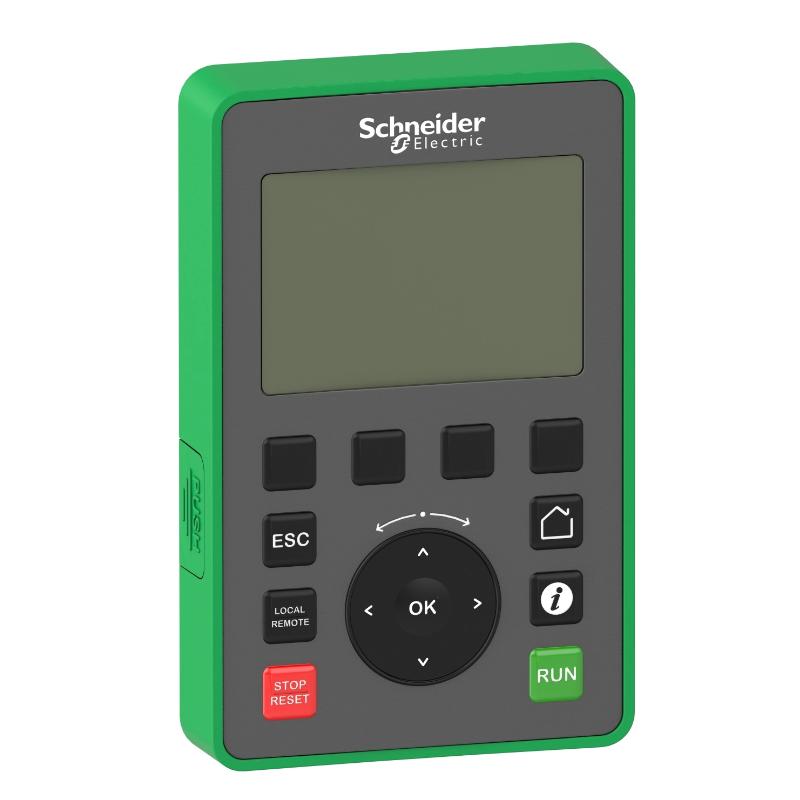

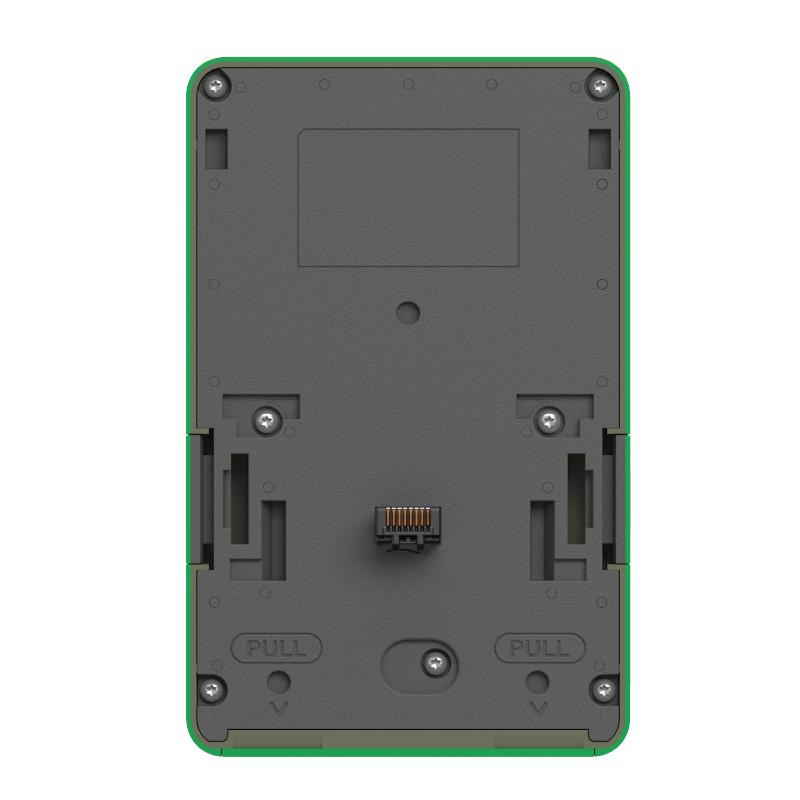

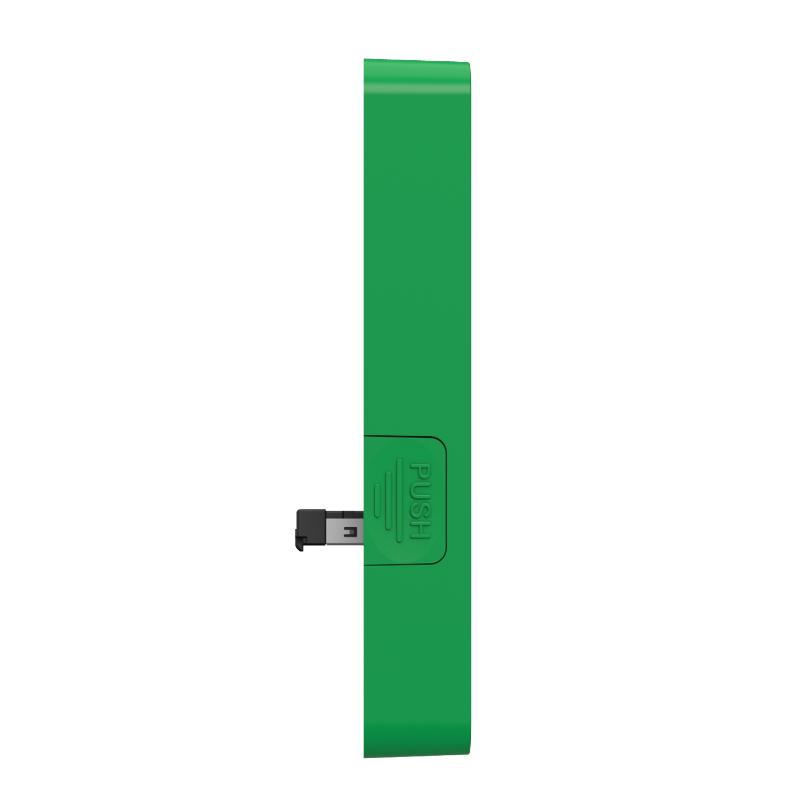

The Schneider VW3A1111 is an advanced graphic display terminal (HMI interface) designed for Altivar variable speed drives, delivering powerful visualization, control, and configuration capabilities. Equipped with a high-resolution graphic screen and intuitive navigation controls, it enables operators to monitor real-time data, adjust parameters, and manage drive performance directly from the panel door. With its IP65 protection rating, this terminal is ideal for harsh industrial environments requiring reliable and accessible operator interaction.

Technical Specifications

Advanced Graphic Interface: Clear visualization of parameters, trends, and diagnostics
IP65 Protection: Suitable for harsh industrial environments
Remote Accessibility: Operate drives without opening the cabinet
Parameter Storage & Transfer: Easily copy configurations between drives
Multi-language Support: Supports a wide range of industrial languages

What is the VW3A1111 used for?
It is a graphic display terminal for monitoring and configuring Altivar drives.
What display resolution does it provide?
240 × 160 pixels graphic LCD.
What protection level does it offer?
IP65, suitable for industrial environments.
Can it store configurations?
Yes, it can save and transfer drive parameters between devices.
What communication interfaces are available?
RJ45 for drive connection and USB for data transfer.
What is the operating temperature range?
−15 °C to 50 °C.
What are its physical dimensions?
130×80×30 mm.
Is it compatible with all Altivar drives?
Compatible with major Altivar series including ATV320, ATV340, ATV600, and ATV900.
Does it require external power?
It is powered via connection to the drive.
What is the weight of the unit?
Approximately 0.20 kg.

Look forward to your comments!Comment

Latest comments

Tags:	VW3A1111

Specification	Detail
Model	VW3A1111
Module Type	Graphic Display Terminal / HMI Interface
Product Range	Altivar
Compatible Series	ATV320, ATV340, ATV600, ATV900 and related drives
Display Type	Backlit graphic LCD
Resolution	240 × 160 pixels
Display Capacity	Up to 8 lines of text
User Interface	Function keys + navigation controls
Function	Monitoring, configuration, diagnostics, parameter storage
Protection Rating	IP65
Communication Interface	RJ45 / USB (for data transfer)
Battery Type	CR2032 (internal memory backup)
Battery Life	Up to 10 years
Dimensions (L×W×H)	130×80×30 mm
Weight	0.20 kg
Operating Temperature	−15 °C to 50 °C
Storage Temperature	−20 °C to 70 °C
Installation	Panel / enclosure door mounting
Lifecycle Status	Active
