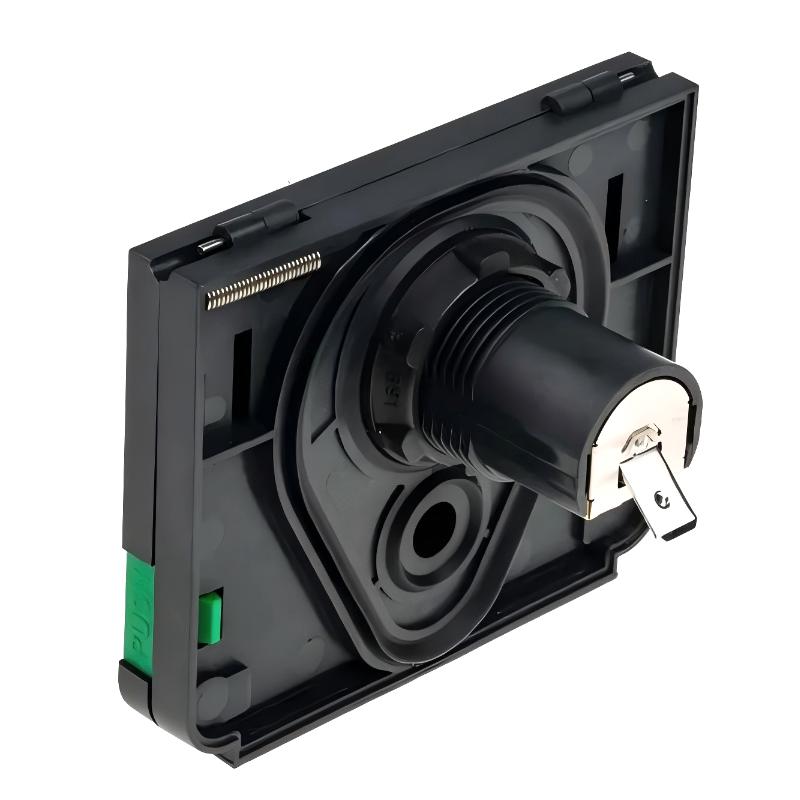

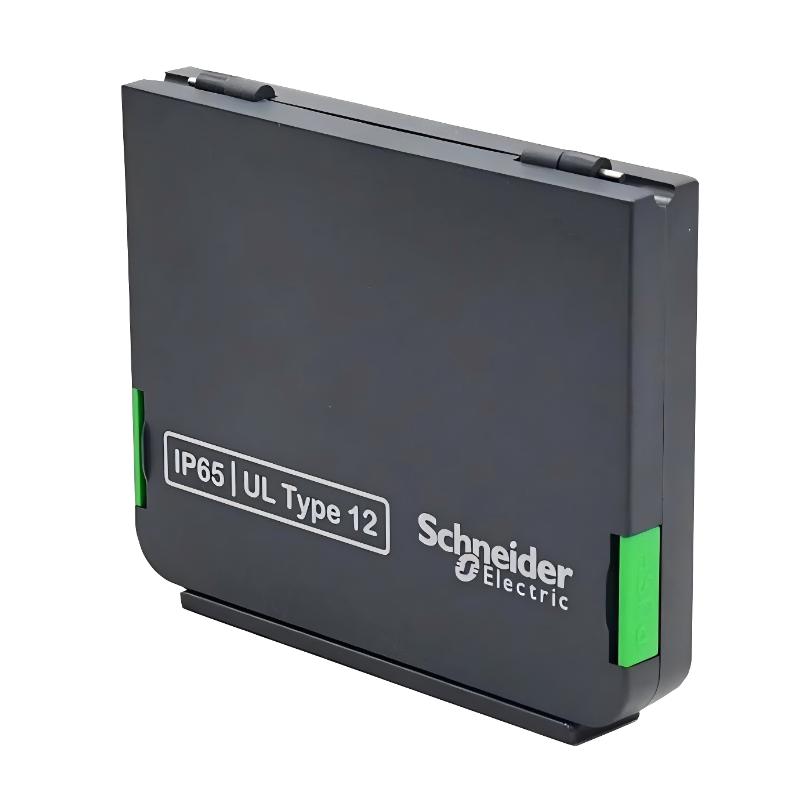

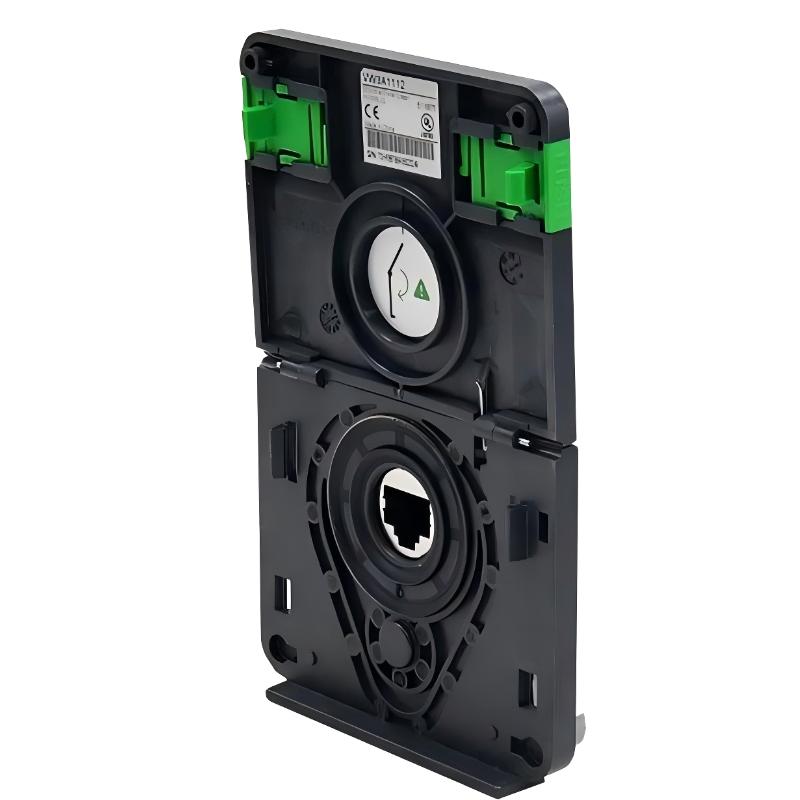

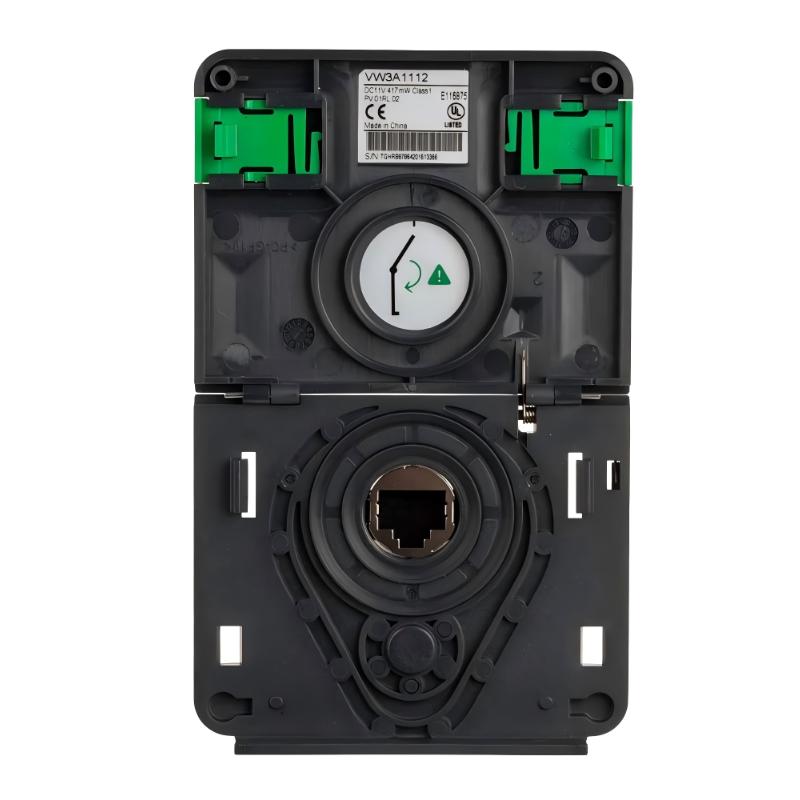

The Schneider VW3A1112 is an IP65 door mounting kit designed for installing Altivar remote graphic display terminals on control cabinet doors. It enables a secure and sealed mechanical installation of the HMI interface, allowing operators to access drive parameters, diagnostics, and configuration without opening the enclosure. Built for demanding industrial environments, this kit ensures both mechanical stability and environmental protection for advanced variable speed drive systems.
Technical Specifications
| Specification | Detail |
|---|
| Model | VW3A1112 |
| Module Type | Door Mounting Kit / Installation Accessory |
| Product Range | Altivar |
| Compatible Series | ATV320, ATV340, ATV600, ATV900, ATV610, ATV Process series |
| Function | Panel door installation for graphic terminal |
| Protection Rating | IP65 (front assembly condition) |
| Kit Composition | Mounting plate, fixing nut, anti-rotation pin, sealing components, tightening wrench |
| Installation Type | Enclosure door mounting |
| Application | Remote graphic display terminal integration |
| Dimensions (L×W×H) | 127×80×40 mm |
| Weight | 0.46 kg |
| Operating Environment | Industrial control cabinets |
| Mechanical Role | Fixing + sealing + alignment support |
| Lifecycle Status | Active |
Recommended Related Models
| Model | Why It’s Recommended |
|---|
| VW3A1111 | Graphic display terminal compatible with this kit |
| VW3A1101 | Standard remote terminal for Altivar drives |
| VW3A1007 | IP65 keypad terminal alternative interface |
| VW3A1105 | RJ45 adapter for terminal communication |
Popular Schneider Altivar Series
| Series | Key Strength |
|---|
| Altivar 12 | Compact drive for simple machines |
| Altivar 32 | Flexible general-purpose VFD |
| Altivar Process ATV600 | Process optimization and energy control |
| Altivar Process ATV900 | High-performance industrial drive |
