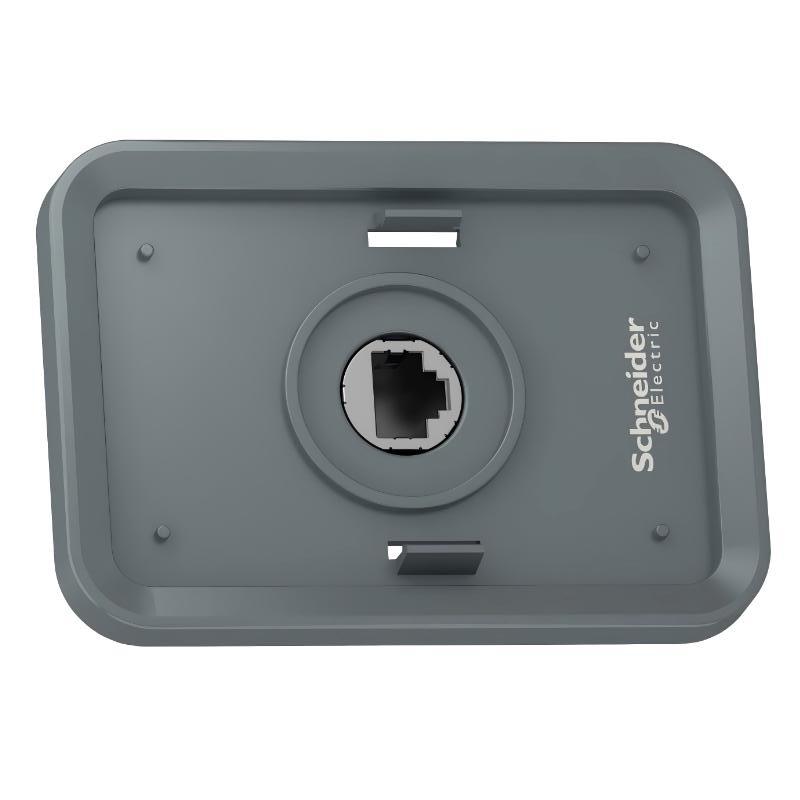

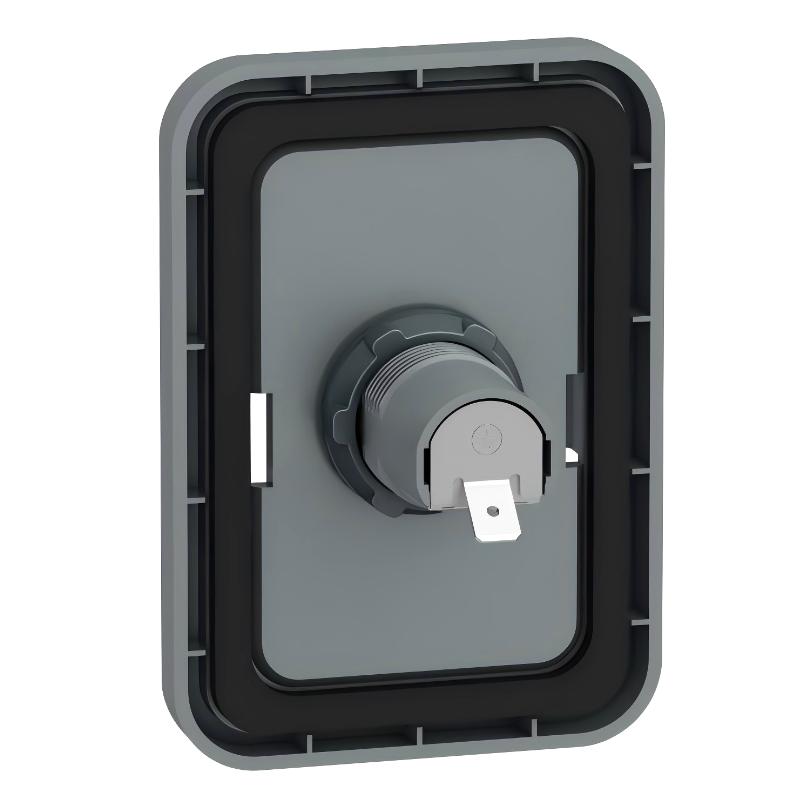

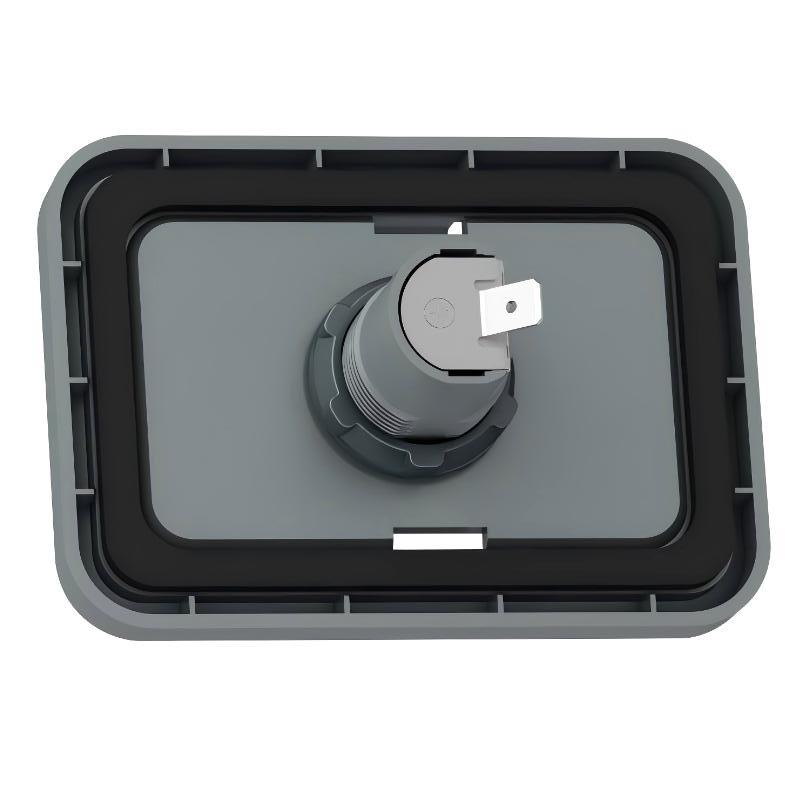

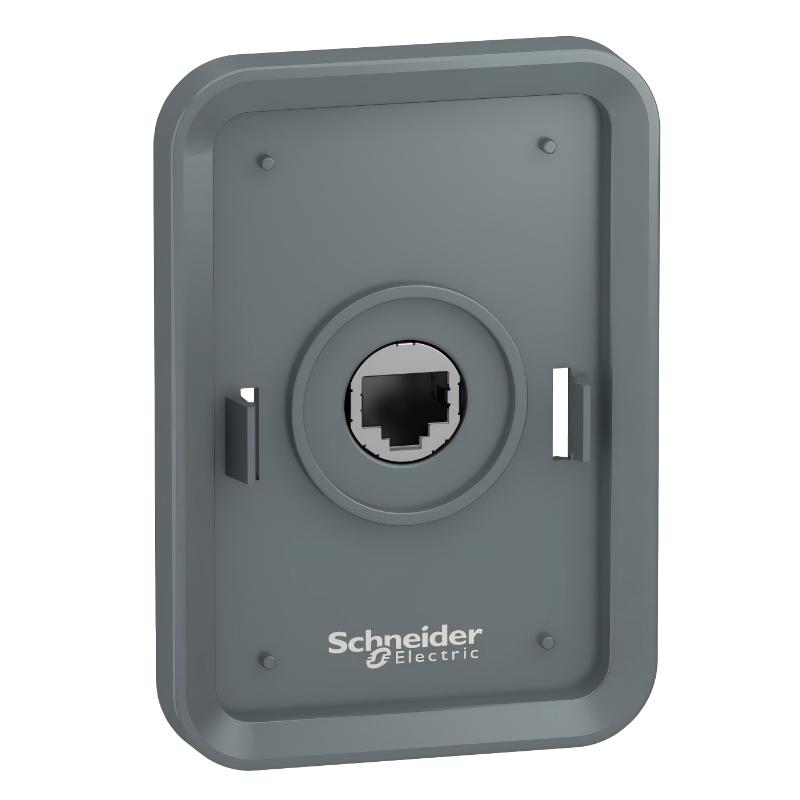

The Schneider VW3A1114 is a basic keypad door mounting kit designed for Altivar variable speed drive systems, enabling secure installation of remote display terminals on control cabinet doors. It provides a mechanical interface for mounting HMI keypads externally, allowing operators to access drive parameters, monitoring, and diagnostics without opening the enclosure. This improves safety, usability, and service efficiency in industrial automation environments.

Technical Specifications

Specification	Detail
Model	VW3A1114
Module Type	Door Mounting Kit / Installation Accessory
Product Range	Altivar
Compatible Series	Altivar Easy 610, Altivar Machine ATV340
Function	Mounting keypad or display terminal on enclosure door
Protection Rating	IP20 (installation dependent)
Kit Composition	Connector, fixing nut, mounting frame components
Installation Type	Panel / enclosure door mounting
Application	Remote HMI installation for VFD systems
Dimensions (L×W×H)	110×95×40 mm
Weight	0.04 kg
Operating Environment	Industrial control cabinets
Mechanical Role	Fixing + alignment for keypad interface
Lifecycle Status	Active

Recommended Related Models

Model	Why It’s Recommended
VW3A1111	Graphic display terminal for advanced monitoring
VW3A1101	Remote HMI terminal for Altivar drives
VW3A1007	IP65 keypad terminal for harsh environments
VW3A1102	Enhanced door mounting kit for graphic terminals

Popular Schneider Altivar Series

Series	Key Strength
Altivar 12	Compact drive for simple machine control
Altivar 32	Flexible general-purpose VFD
Altivar 340	Machine automation with advanced control features
Altivar 610	Easy process and HVAC optimization drive

Applications

Mounting keypad interfaces on control cabinet doors
Industrial variable speed drive monitoring systems
HVAC, pump, and conveyor control panels
Machine operation interfaces requiring external HMI access
Retrofit and upgrade of Altivar drive installations

Advantages

Simple Mechanical Installation: Quick and stable mounting solution
Improved Operator Access: Enables external control without opening cabinets
Compact Design: Minimal space requirement in panel structures
Wide Compatibility: Works with Altivar Easy 610 and ATV340 systems
Cost-Efficient Solution: Low-cost accessory for HMI integration

Technical FAQs

What is the VW3A1114 used for?
It is used to mount keypad or display terminals on enclosure doors for Altivar drives.
Which drives is it compatible with?
Compatible with Altivar Easy 610 and Altivar Machine ATV340.
What is the protection rating?
IP20 (system-dependent installation environment).
What is included in the kit?
Connector, fixing nut, and mounting components.
Is it an electrical component?
No, it is a mechanical mounting accessory.
Where is it installed?
On the door or front panel of control cabinets.
What are its dimensions?
110×95×40 mm.
What is the weight?
Approximately 0.04 kg.
Does it require wiring or power?
No, it has no electrical function.
What is its main purpose?
To enable safe and convenient external installation of Altivar keypad interfaces.
