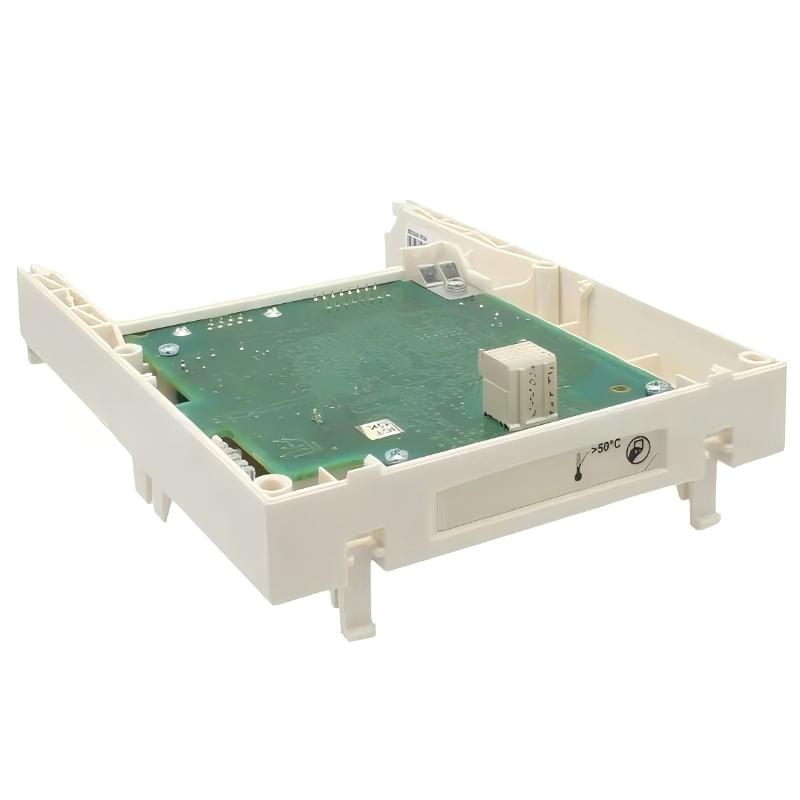

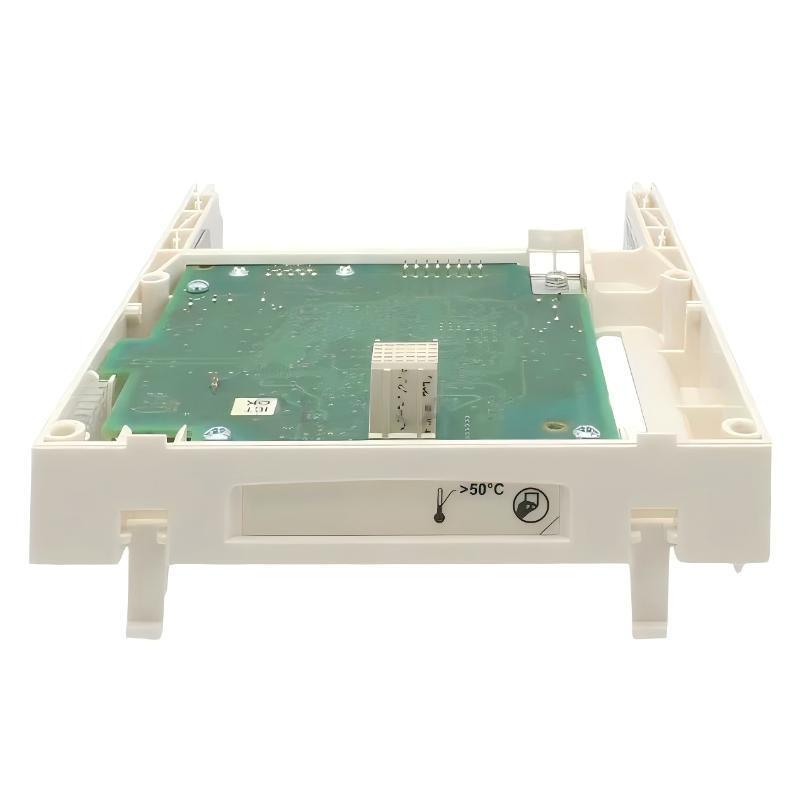

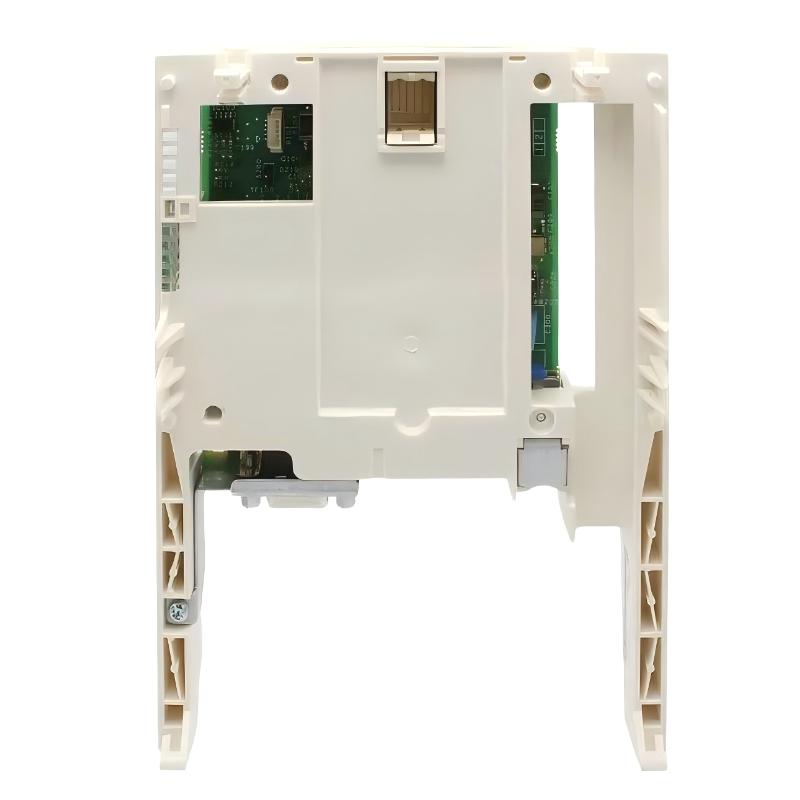

The Schneider VW3A3307 is a Profibus DP communication card designed for Altivar 61 and Altivar 71 variable speed drives, enabling seamless integration into industrial fieldbus networks. It allows the drive to communicate with PLCs and supervisory systems via Profibus DP V0 protocol, making it a key component in distributed automation architectures. With stable data exchange and reliable diagnostics, this module is widely used in process control, manufacturing systems, and large-scale industrial automation networks.
Technical Specifications
| Specification | Detail |
|---|
| Model | VW3A3307 |
| Module Type | Communication Option Card |
| Network Protocol | Profibus DP V0 |
| Compatible Drives | Altivar 61 / 61Q / 71 / 71Q |

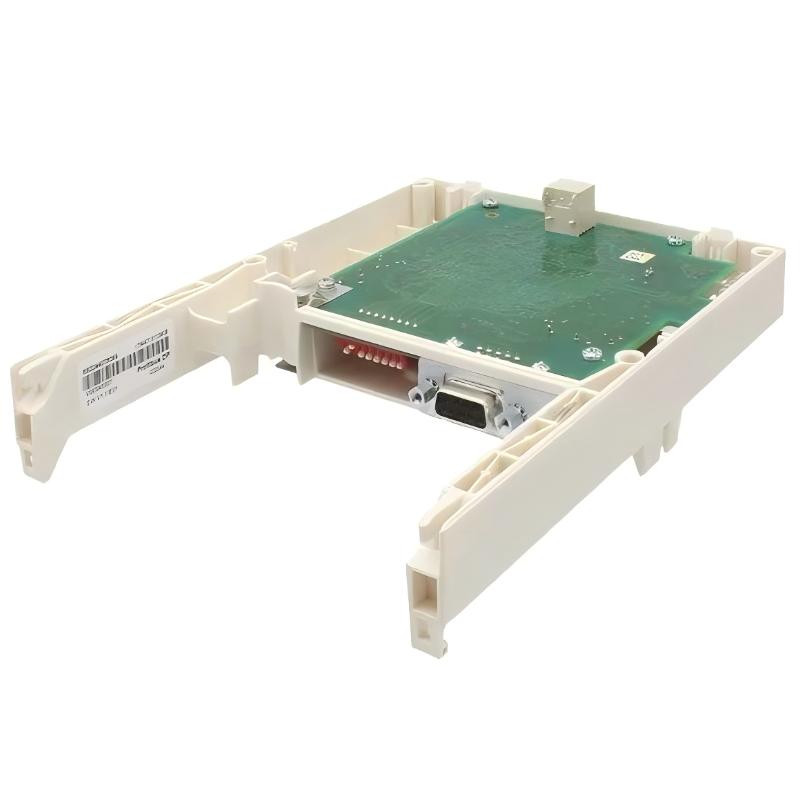

| Connector Type | 9-way female SUB-D |
| Transmission Rates | 9.6 kbps to 12 Mbps |
| Address Range | 1 to 126 |
| Communication Profile | CiA 402 / PPO type 5 |
| Data Types | Control word, reference, I/O data |
| Status Indicators | 2 LEDs (ST / DX) |
| Power Supply | Supplied via drive backplane |
| Installation | Plug-in internal option card |
| Dimensions (L×W×H) | 160×90×40 mm |
| Weight | 0.30 kg |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −25 °C to 70 °C |
| Protection Rating | Installed inside drive enclosure |
| Lifecycle Status | Legacy / still widely used in installed base |
