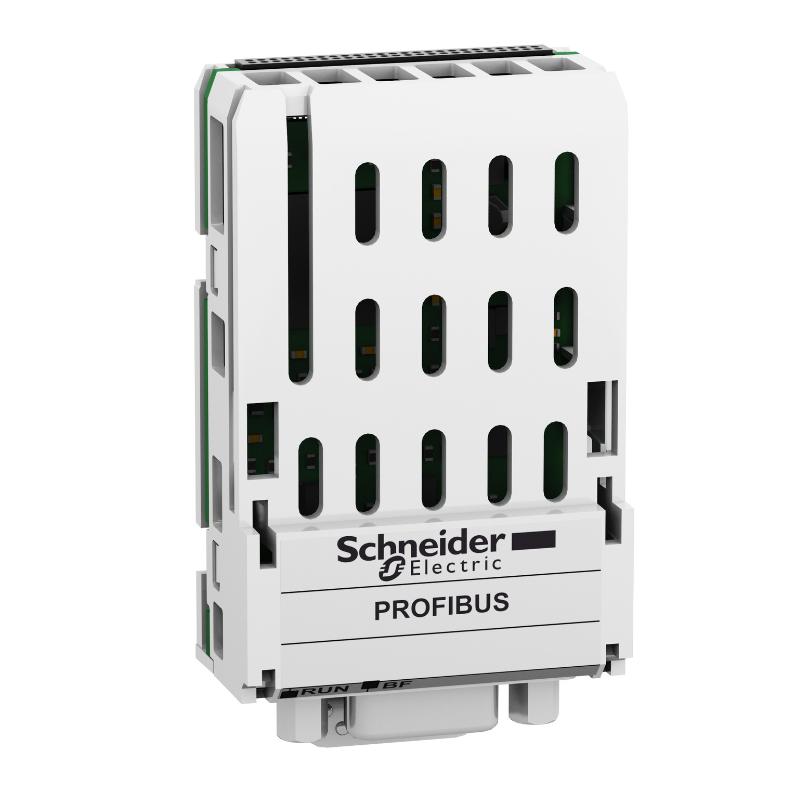

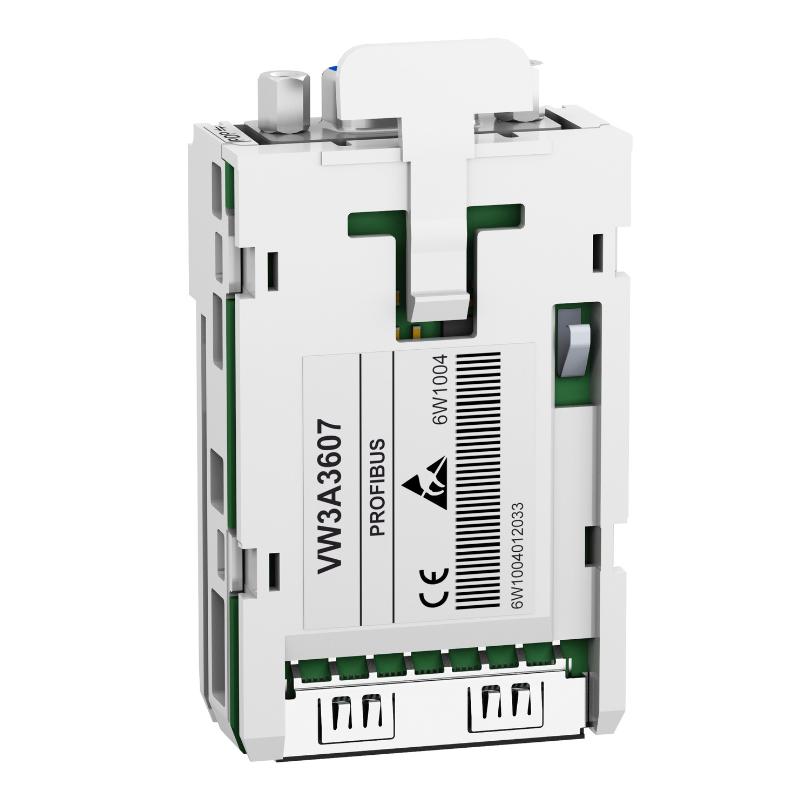

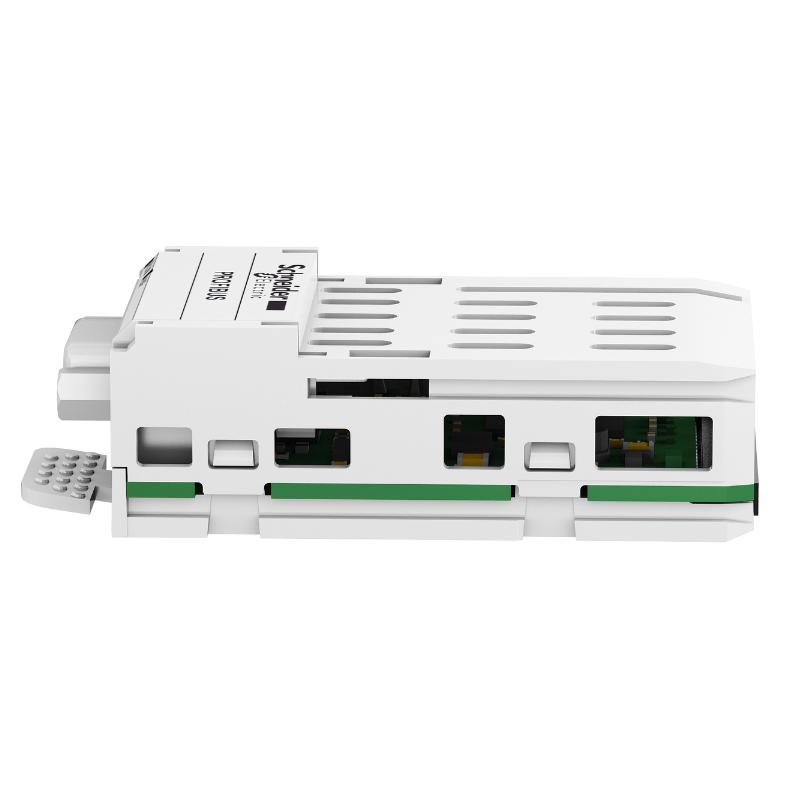

The Schneider VW3A3607 is a PROFIBUS DP V1 communication module designed for integration of Altivar variable speed drives into industrial automation networks. It enables high-speed communication between PLCs and drives, allowing full remote control, monitoring, and diagnostics over a PROFIBUS DP fieldbus system.
This module is widely used in ATV320, ATV340, ATV600, ATV900, Altivar 32, and Lexium 32 systems, making it a standard solution for industrial network connectivity in Schneider drive platforms.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | VW3A3607 |
| Module Type | PROFIBUS DP Communication Module |
| Protocol | PROFIBUS DP V1 |
| Compatible Drives | Altivar 32 / ATV320 / ATV340 / ATV600 / ATV900 / Lexium 32 |
| Baud Rate | 9.6 kbps to 12 Mbps |

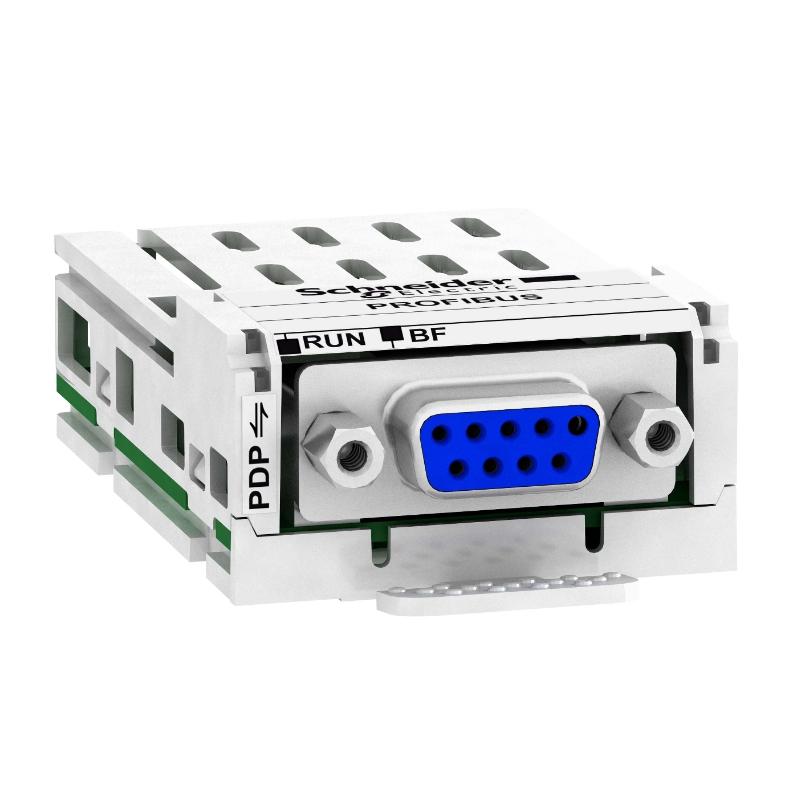

| Connector | 1 × 9-pin female SUB-D connector |
| Bus Profile | PROFIdrive / CiA 402 |
| Address Range | 1–126 configurable |
| Diagnostics | RUN LED + Bus Fault LED |
| Functions | Parameter access, diagnostics, process data exchange |
| Installation | Plug-in removable option card |
| Power Supply | Supplied by drive backplane |
| Dimensions (L×W×H) | ~160 × 90 × 40 mm |
| Weight | ~0.14–0.25 kg |
| Operating Temperature | 0 °C to 50 °C |
| Protection | Internal installation (inside drive enclosure) |
Key Features
-
PROFIBUS DP V1 industrial communication
-
Supports high-speed data exchange up to 12 Mbps
-
Full integration with PLC systems (Siemens S7, etc.)
-
Real-time monitoring and control of drive parameters
-
Built-in diagnostics (RUN / BUS FAULT LEDs)
-
Easy plug-in installation and removal
Recommended Related Models
| Model | Function |
|---|---|
| VW3A3616 | Ethernet/IP + Modbus communication module |
| VW3A3627 | PROFINET communication module |
| VW3A3407 | Encoder interface card (push-pull) |
| VW3A3401 | Encoder feedback module (RS422) |
