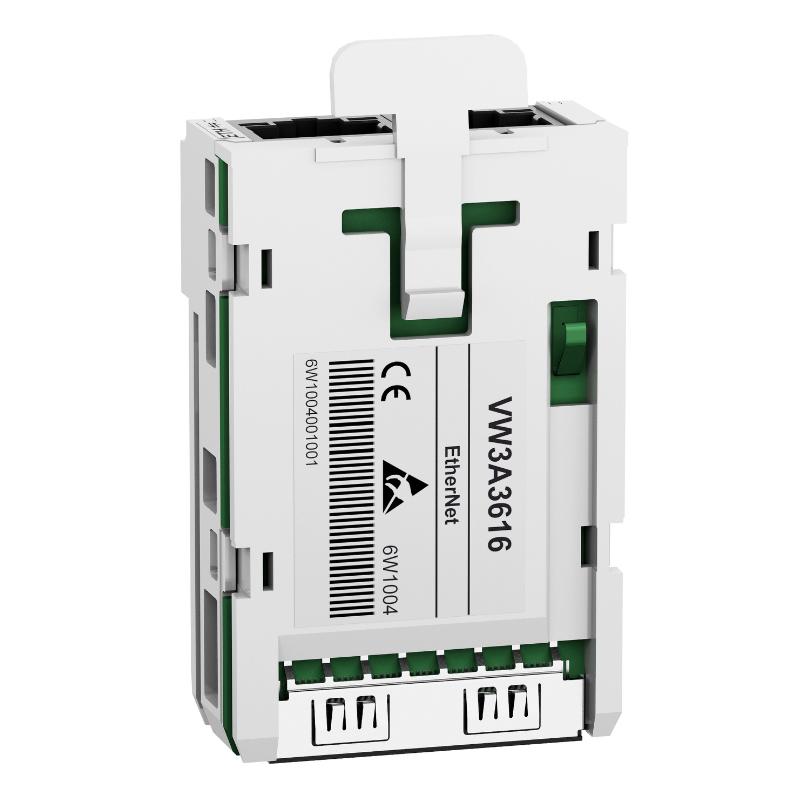

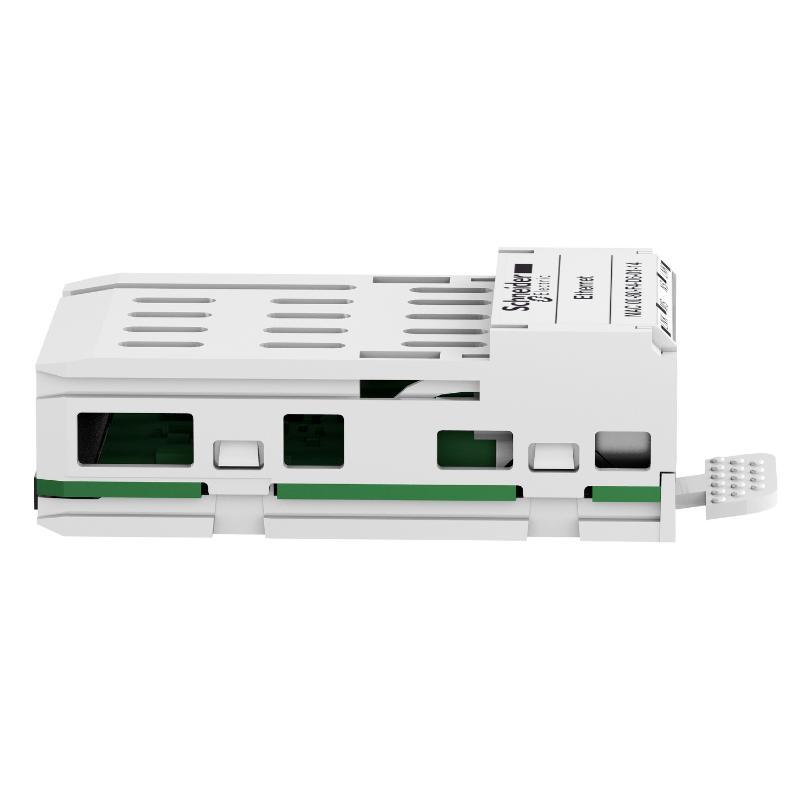

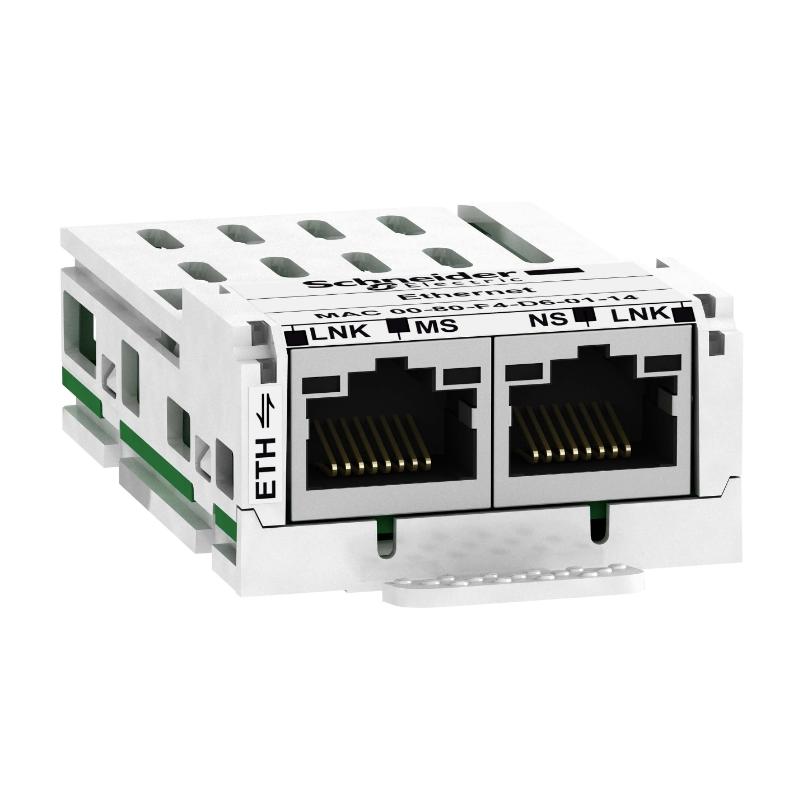

The Schneider VW3A3616 is an Ethernet communication option module designed for Altivar 32, Altivar 320, Altivar 340, and Lexium 32 drive systems. It enables seamless integration of Schneider drives into industrial Ethernet networks, supporting both Modbus TCP and EtherNet/IP protocols for real-time data exchange with PLC and SCADA systems.
This module is widely used in machine automation, conveyor systems, packaging lines, and distributed drive architectures where flexible Ethernet communication is required.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | VW3A3616 |
| Module Type | Ethernet TCP/IP Communication Module |
| Supported Protocols | Modbus TCP / EtherNet/IP |
| Compatible Drives | Altivar 32 / ATV320 / ATV340 / Lexium 32 |
| Communication Ports | 2 × RJ45 Ethernet ports |
| Transmission Speed | 10/100 Mbps |
| Network Modes | Half duplex / Full duplex |
| IP Configuration | DHCP / BOOTP / Manual IP |
| Max Connections | Up to 8 simultaneous Ethernet connections |
| Fieldbus Services | I/O scanning, read/write registers, diagnostics |
| Diagnostics | LED indicators (MS, NS, Ethernet, Modbus) |
| Web Server | Embedded HTTP server for remote access |
| Installation | Internal plug-in option card |
| Power Supply | Supplied by drive backplane |
| Dimensions (L×W×H) | ~160 × 90 × 40 mm |
| Weight | ~0.14–0.30 kg |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −25 °C to 70 °C |
Key Features
-
Dual protocol support: Modbus TCP + EtherNet/IP
-
High-speed 10/100 Mbps industrial Ethernet communication
-
Integrated web server for remote diagnostics and configuration
-
Real-time I/O scanning for PLC integration
-
Plug-in design for fast installation in Altivar drives
-
Multiple simultaneous communication channels (up to 8 connections)
Recommended Related Models
| Model | Function |
|---|---|
| VW3A3627 | PROFINET communication module (Siemens PLC systems) |
| VW3A3607 | PROFIBUS DP communication module |
| VW3A3401 | Encoder feedback interface (RS422) |
| VW3A3407 | Encoder interface (24 V push-pull) |
