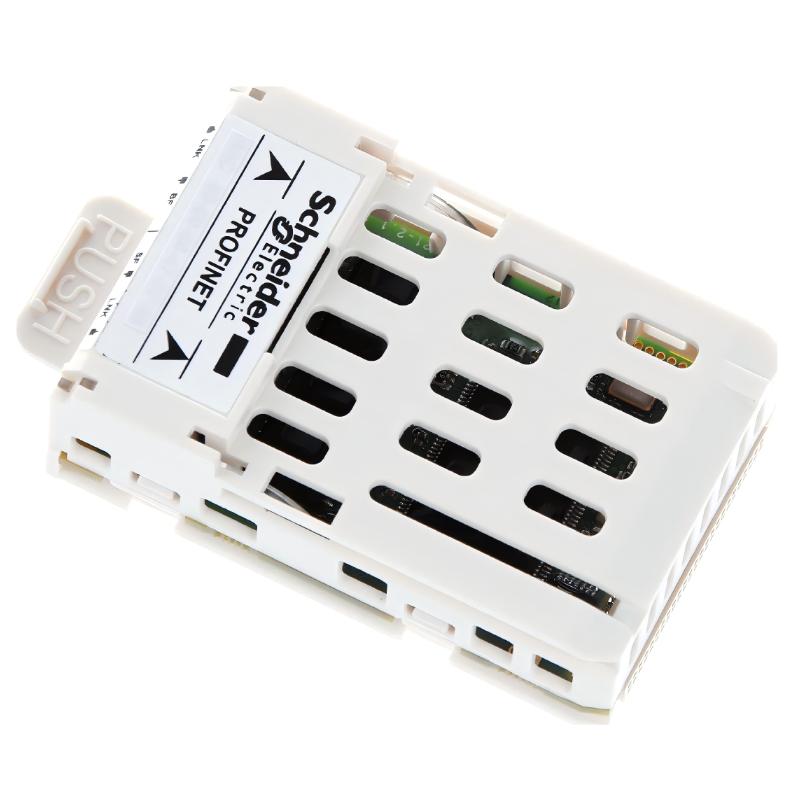

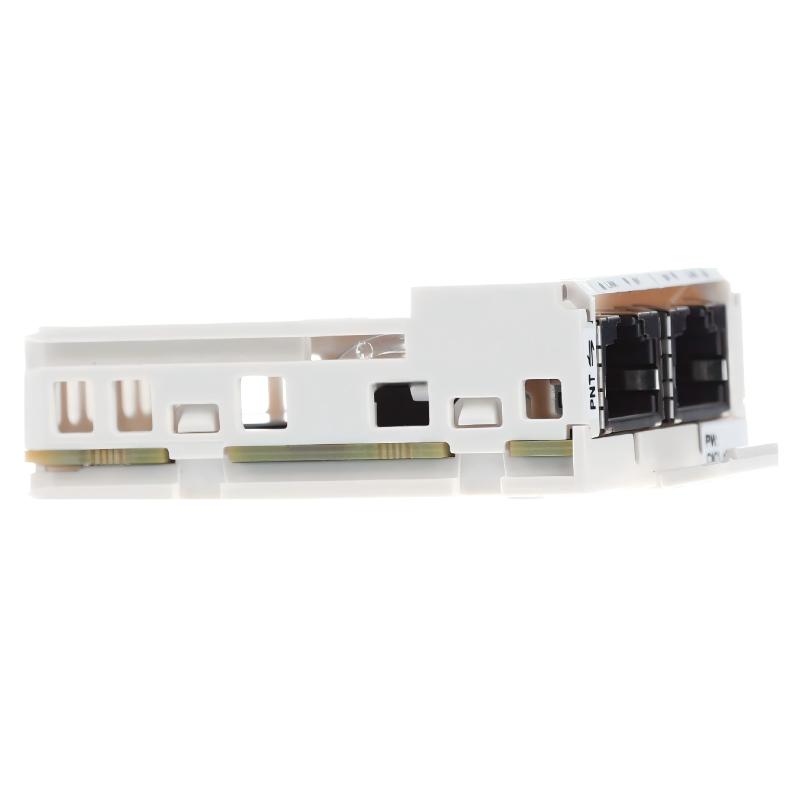

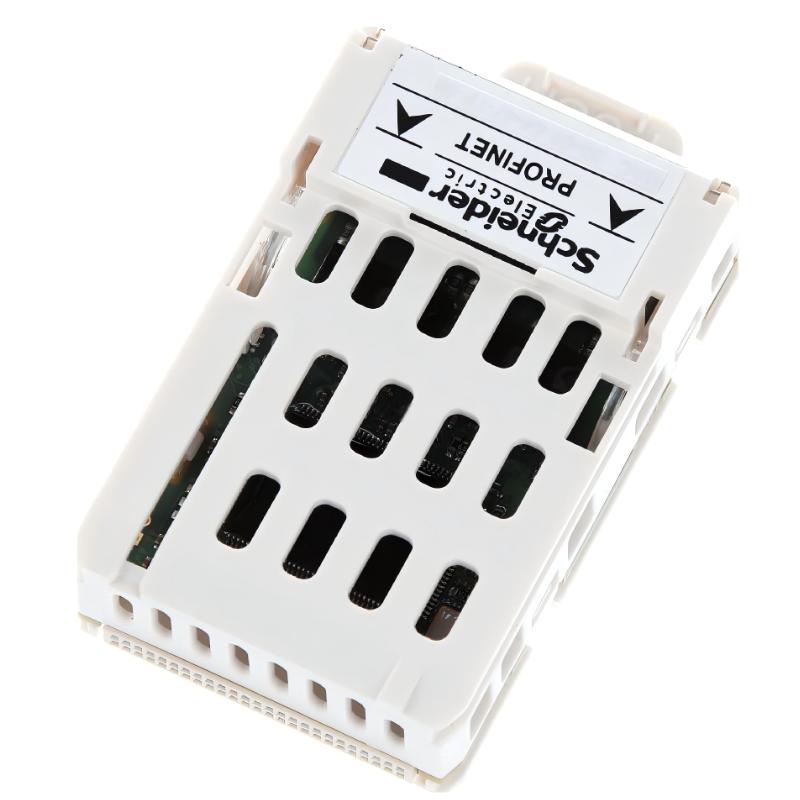

The Schneider VW3A3627 is a PROFINET IO communication module designed for integration of Altivar variable speed drives into Siemens and other PROFINET-based industrial automation systems. It enables high-speed, real-time communication between PLCs and drives, supporting full remote control, parameter access, and diagnostics.
This module is widely used with Altivar 32, ATV320, ATV340, ATV600, ATV900, and Lexium systems, making it a standard choice for Siemens PLC-centric architectures.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | VW3A3627 |
| Module Type | PROFINET IO Communication Module |
| Protocol | PROFINET RT (Real-Time) |
| Compatible Drives | ATV320 / ATV340 / ATV600 / ATV900 / Altivar 32 / Lexium 32 |

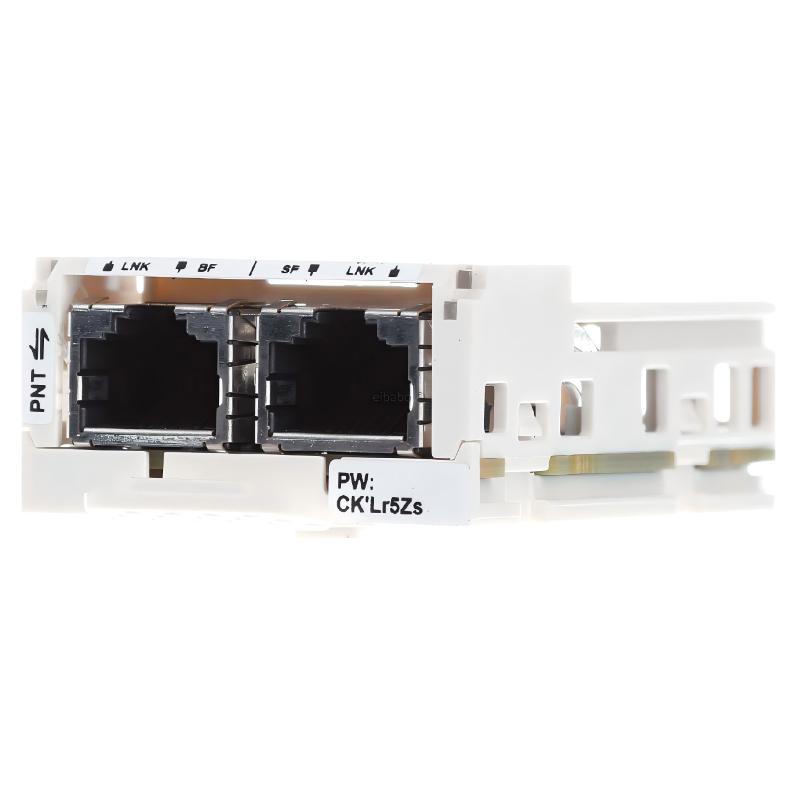

| Communication Ports | 2 × RJ45 Ethernet ports |
| Transmission Rate | 100 Mbps |
| Bus Profile | PROFIdrive / IEC 61800-7 (CiA 402) |
| Network Features | LLDP support |
| Diagnostics | MS (Module Status), NS (Network Status), TX/RX LEDs |
| Data Exchange | Cyclic I/O + acyclic parameter access |
| Web Server | Embedded diagnostic web pages |
| IP Configuration | DHCP / BOOTP / Manual IP |
| Installation | Plug-in internal option card |
| Power Supply | Supplied by drive backplane |
| Dimensions (L×W×H) | ~160 × 90 × 40 mm |
| Weight | ~0.3 kg |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −25 °C to 70 °C |
| Protection | Internal (inside drive enclosure) |
Key Features
-
Native PROFINET IO integration for Siemens PLC systems
-
High-speed 100 Mbps real-time industrial Ethernet
-
Supports PROFIdrive profile (IEC 61800-7) for motion control compatibility
-
Dual RJ45 ports for line topology networking
-
Built-in diagnostics via LEDs and web interface
-
Easy plug-in installation for Altivar drives
Recommended Related Models
| Model | Function |
|---|---|
| VW3A3616 | Modbus TCP / EtherNet/IP communication module |
| VW3A3607 | PROFIBUS DP communication module |
| VW3A3401 | RS422 encoder interface module |
| VW3A3407 | 24 V push-pull encoder feedback module |
