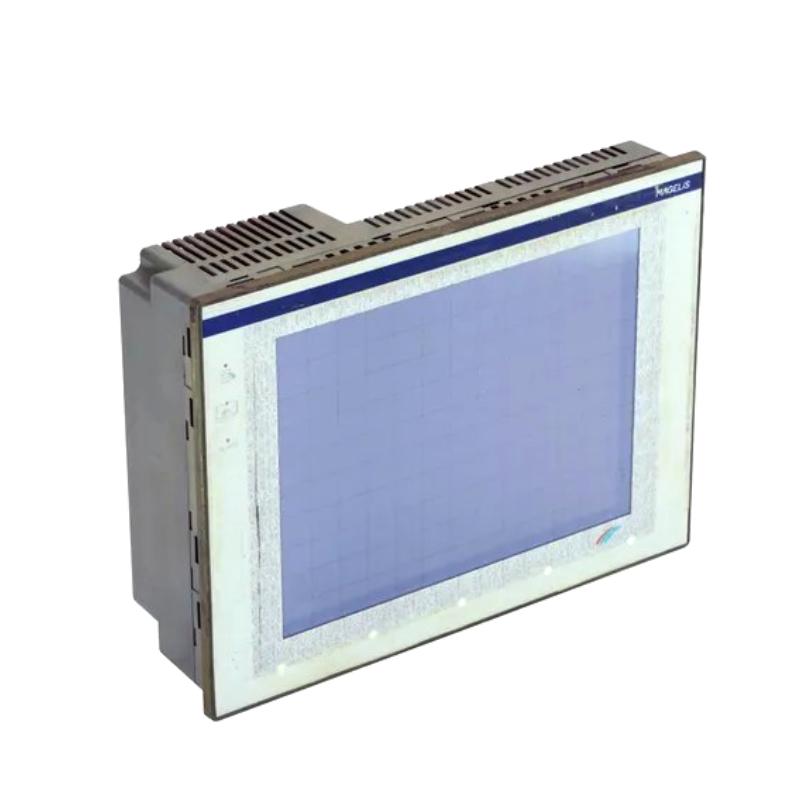

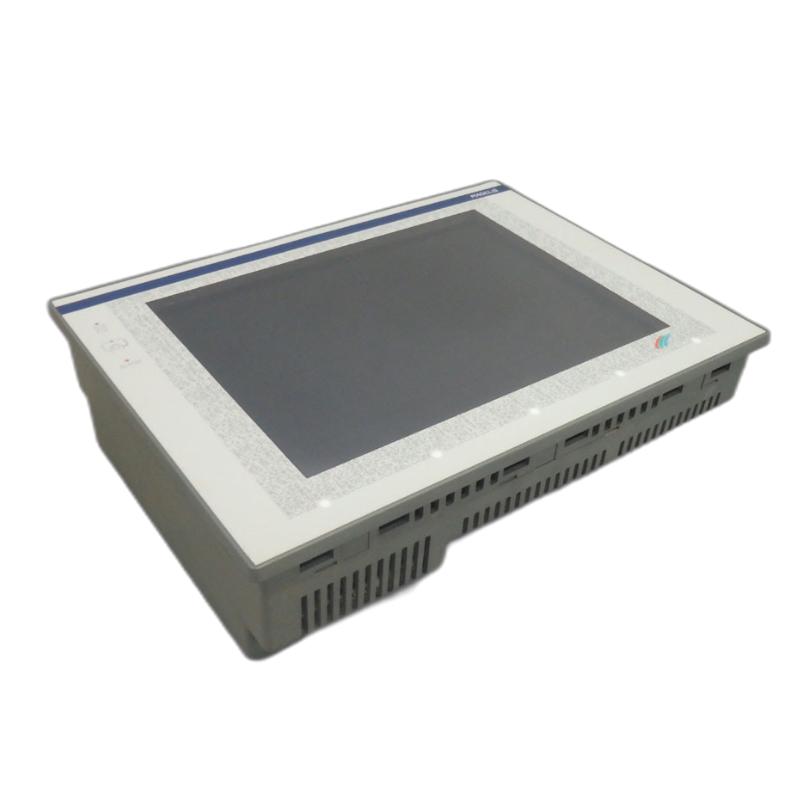

The Schneider Electric XBTF034110 is a Magelis XBT F series industrial HMI touch panel designed for machine visualization, operator control, and PLC communication in industrial automation systems. It provides a reliable human–machine interface for monitoring processes, controlling equipment, and displaying real-time production data in factory environments.
This model is commonly used in legacy automation systems and OEM machinery, and is now mainly found as a replacement or maintenance spare part.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XBTF034110 |
| Series | Magelis XBT F |
| Device Type | Industrial HMI Touch Panel |
| Display Size | 10.4-inch STN LCD |
| Touch Type | Resistive touchscreen |
| Communication Ports | Serial communication (RS-232 / RS-485 depending on configuration) |
| Power Supply | 24 V DC |
| Application Software | Vijeo Designer / XBT-L1000 (legacy systems) |
| Mounting Type | Panel-mounted industrial installation |
| Front Protection | Industrial-grade sealed front panel (IP65 front typical for XBT F series) |
Mechanical Dimensions (mm)
- Width × Height × Depth: 380 mm × 279 mm × 127 mm
Weight
- Weight: approximately 4.6 kg
Key Features
- 10.4-inch industrial-grade operator touchscreen
- Designed for machine control and visualization
- Rugged structure for harsh industrial environments
- Stable serial communication with PLC systems
- Suitable for continuous 24/7 operation
- Proven reliability in legacy automation architectures
