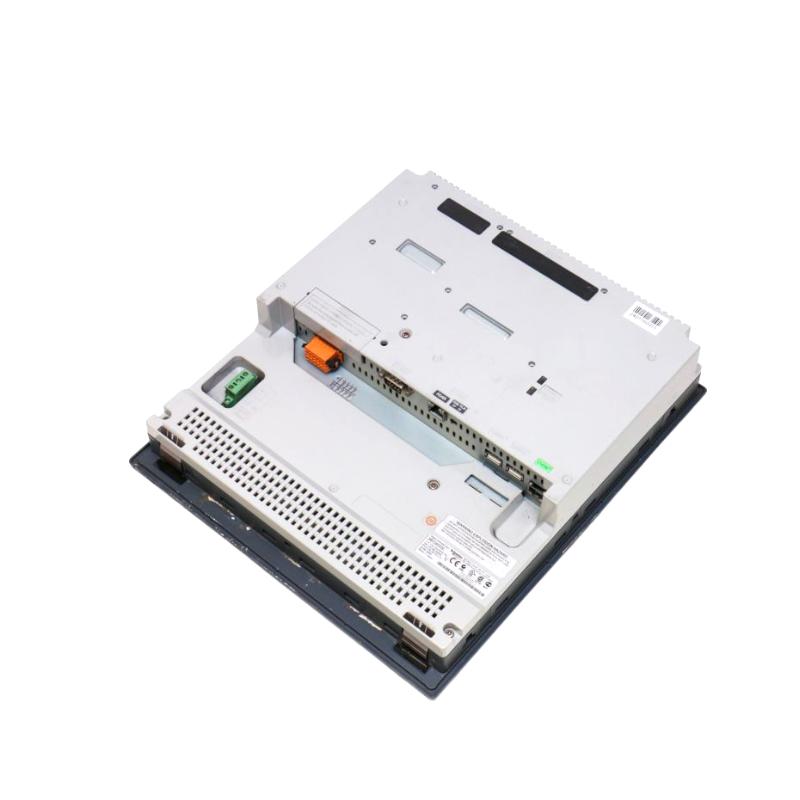

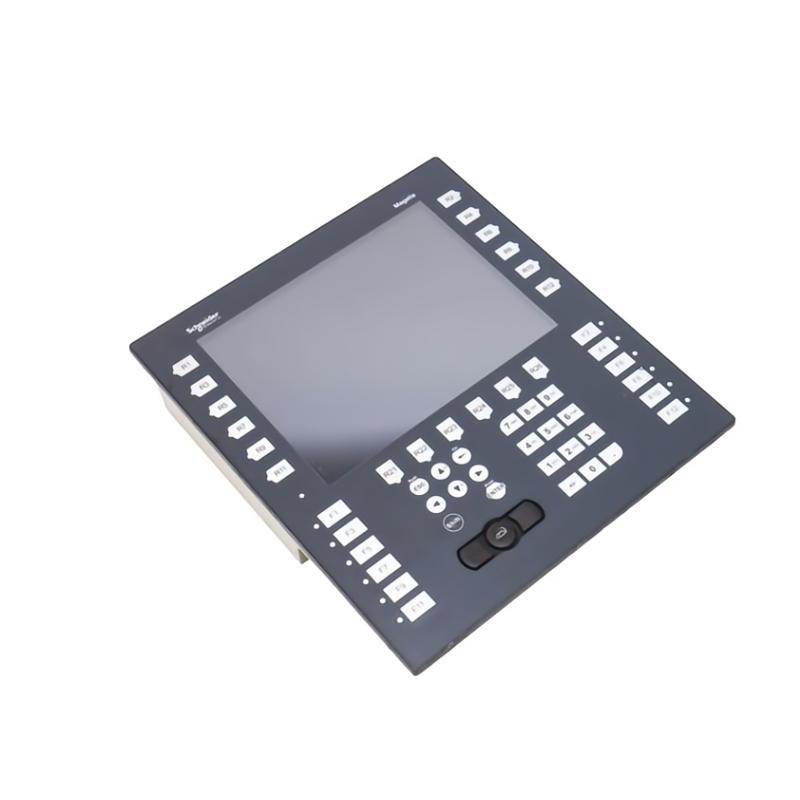

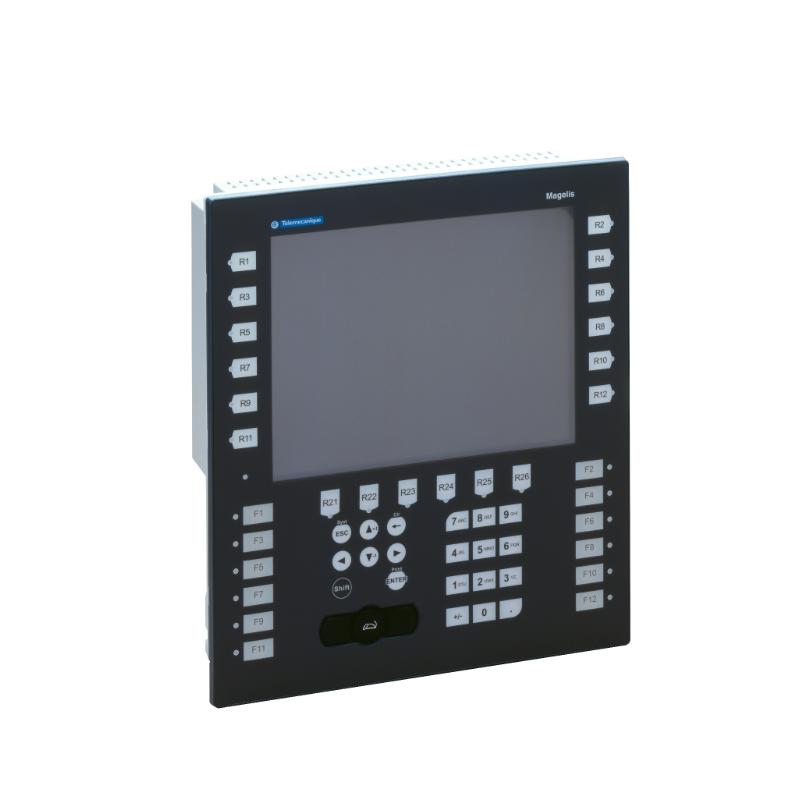

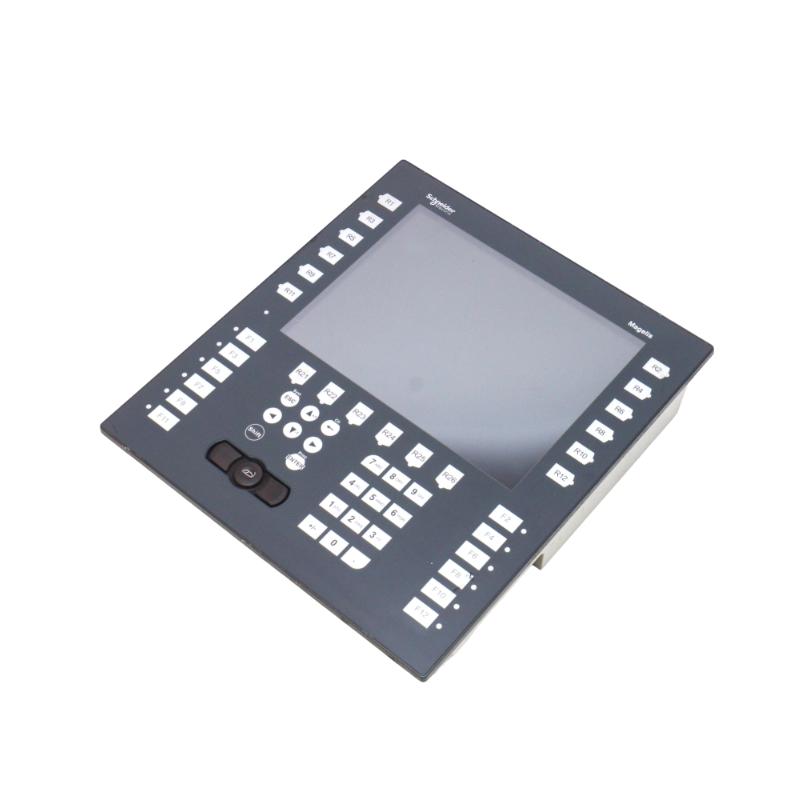

The Schneider XBTGK5330 is a Magelis XBT GK series industrial operator interface terminal engineered for reliable machine control in demanding automation environments.
Built around a keypad-driven interaction concept, this HMI is optimized for environments where touchscreen operation may not be ideal, such as dusty production areas, vibration-heavy machinery, or glove-required operation zones. It delivers precise tactile feedback and stable command execution, helping operators maintain full control even under harsh industrial conditions.
Unlike modern high-graphics HMIs, this model focuses on functional reliability, long-term stability, and simple but effective machine interaction, making it a strong choice for OEM equipment and legacy automation systems.
Technical Specifications — Compact Industrial Design with Reliable Performance
Core Technical Data
| Parameter | Specification |
|---|---|
| Product Model | XBTGK5330 |
| Series | Magelis XBT GK |
| Brand | Schneider |
| Display Type | Graphic LCD (monochrome class) |
| Input Method | Keypad + function keys |
| Configuration Software | Vijeo Designer / XBT-L1000 (system dependent) |
| Communication | Industrial serial communication (Modbus-compatible) |
| Mounting Type | Panel mount |
Mechanical Data
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 210 × 150 × 58 mm |
| Weight | Approx. 1.1 kg |
Operating Conditions
- Designed for industrial vibration resistance
- Suitable for 24/7 continuous operation
- Stable performance in electrically noisy environments
- Control cabinet integration ready
- Long lifecycle support for legacy automation systems
