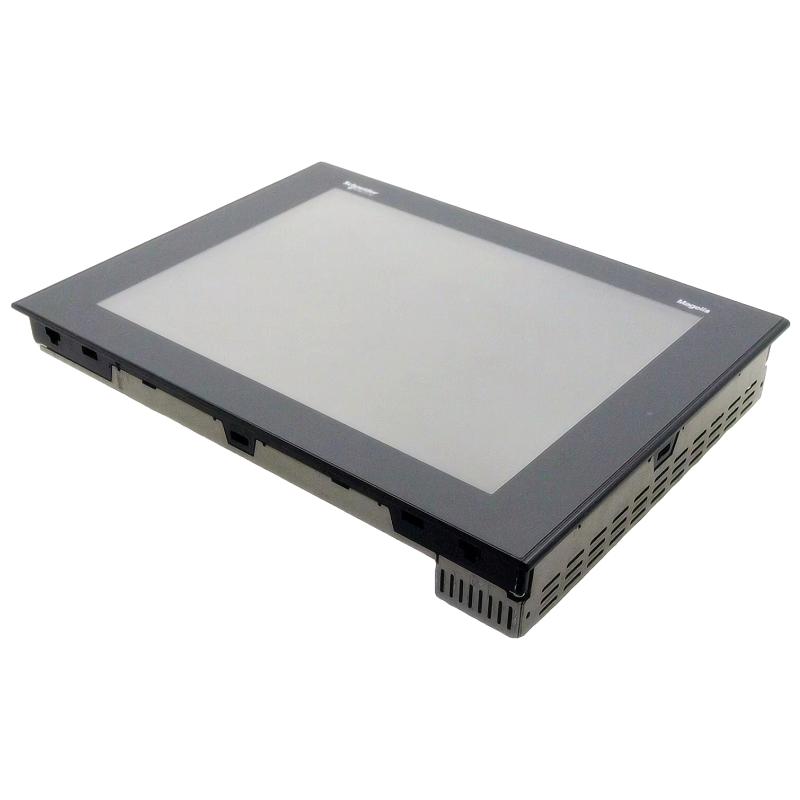

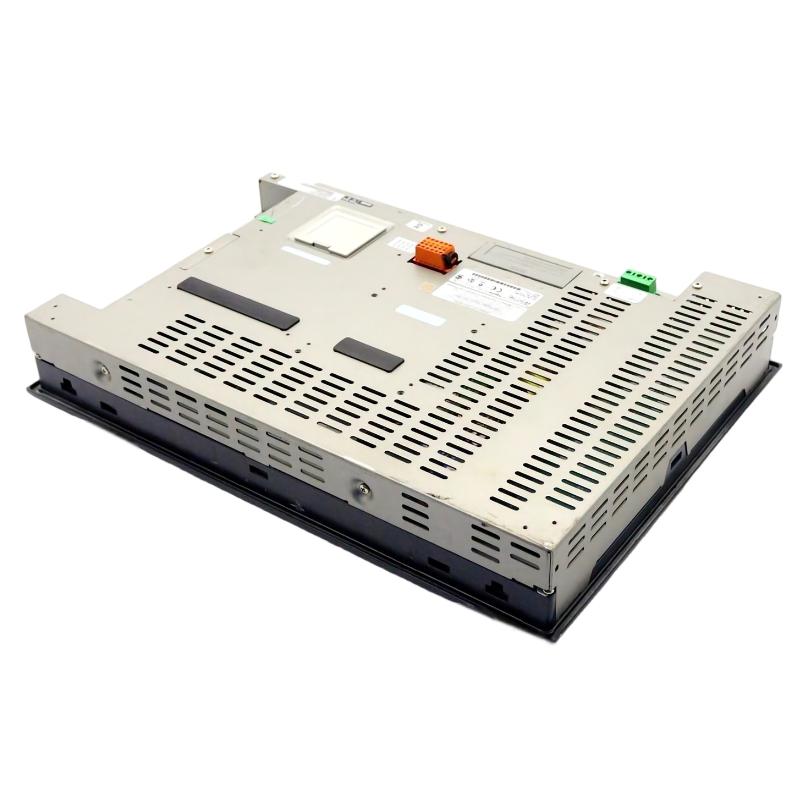

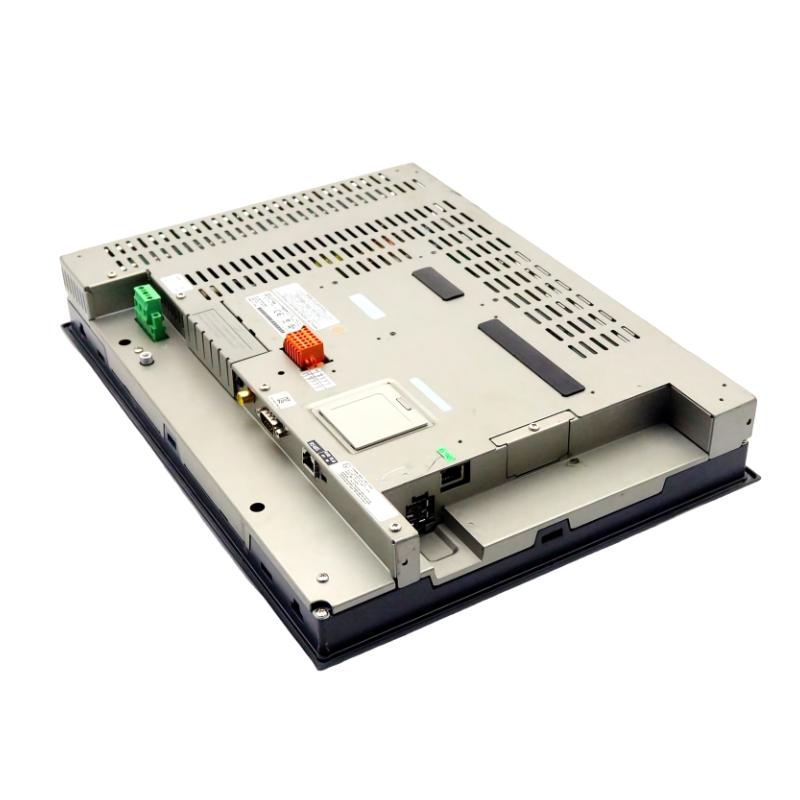

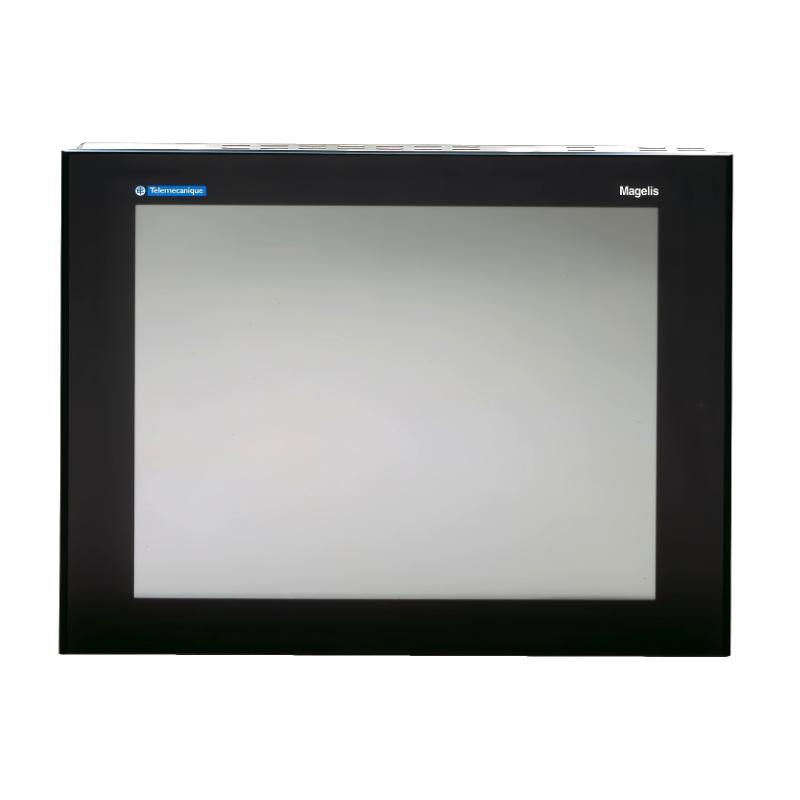

The Schneider XBTGT7340 is a premium Magelis XBT GT series industrial touchscreen HMI designed for complex automation and process control applications requiring high-resolution visualization and stable operator interaction.
Equipped with a 15-inch TFT color display (1024 × 768 XGA), this model delivers clear process data visualization, multi-window operation, and intuitive machine control. It is widely used in medium to large-scale automation systems where operators need full visibility of production status, alarms, trends, and control parameters in real time.
Built for industrial reliability, the XBTGT7340 integrates robust communication capabilities and supports multi-protocol environments, making it suitable for heterogeneous PLC networks and large factory systems.
Technical Specifications — Full Industrial Grade Performance Overview
Core Technical Data
| Parameter | Specification |
|---|---|
| Product Model | XBTGT7340 |
| Series | Magelis XBT GT |
| Brand | Schneider |
| Display Type | TFT LCD Color Touchscreen |
| Screen Size | 15 inch |
| Resolution | 1024 × 768 (XGA) |
| Input Type | Analog touchscreen |
| Processor | RISC CPU ~266 MHz |
| Configuration Software | Vijeo Designer |
| Mounting Type | Panel mount |
Mechanical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 395 × 294 × 60 mm |
| Weight | Approx. 5.6 kg |
Electrical & Environmental Data
- Power supply: 24 V DC
- Power consumption: ~30–42 W depending configuration
- Operating temperature: industrial automation range (0–50°C typical)
- Protection: industrial front panel protection (IP65 level front typical design)
- Designed for vibration, electrical noise, and continuous operation
Recommended Related Models — System Expansion & Upgrade Path
- Schneider XBTGT6330 — smaller 12-inch HMI alternative
- Schneider XBTGT5330 — compact operator terminal version
- Schneider HMIGTO2310 — modern Magelis touchscreen upgrade
- Schneider HMISTO705 — IIoT-ready smart HMI platform
- Schneider HMIGXU series — advanced high-performance HMI systems
These models allow scalable upgrades from legacy Magelis systems to modern EcoStruxure-connected architectures.
