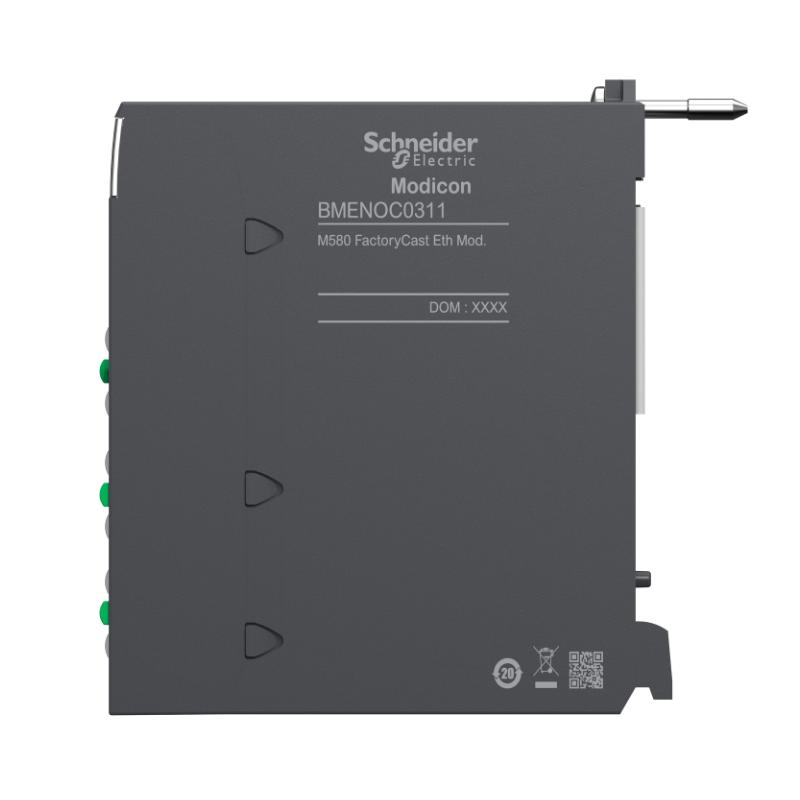

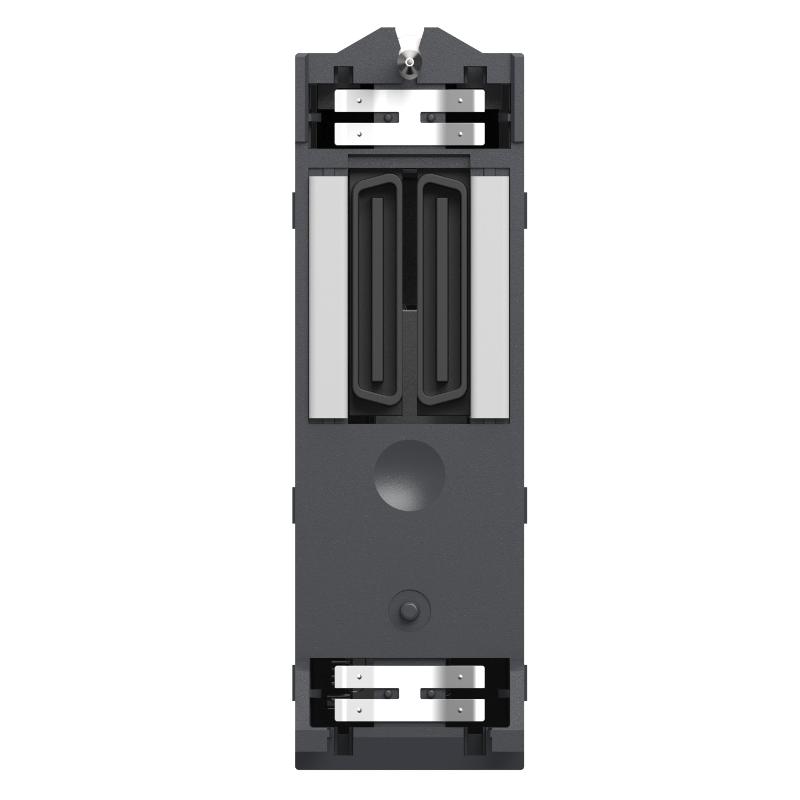

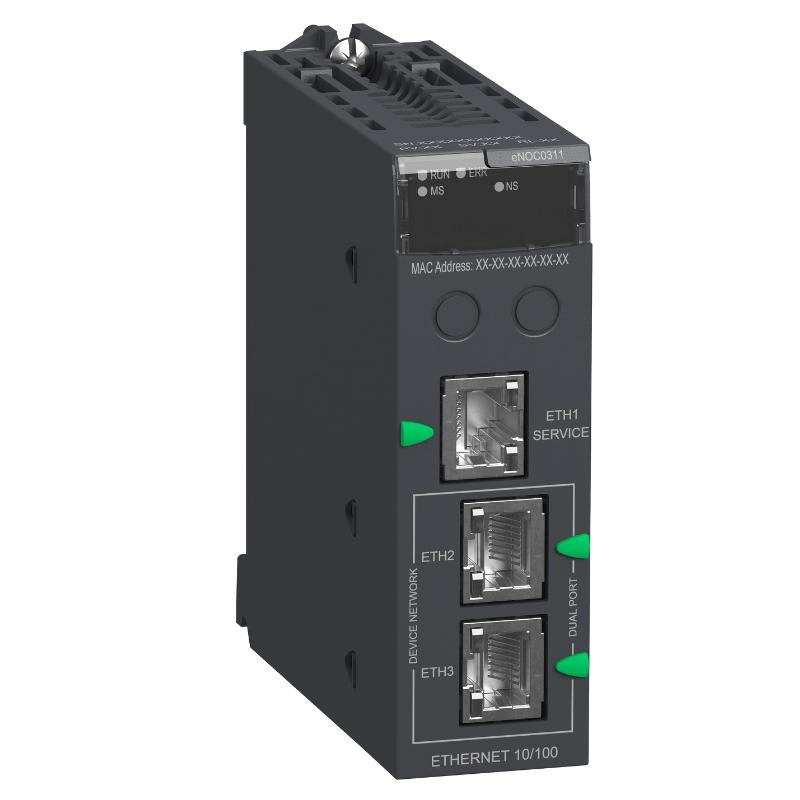

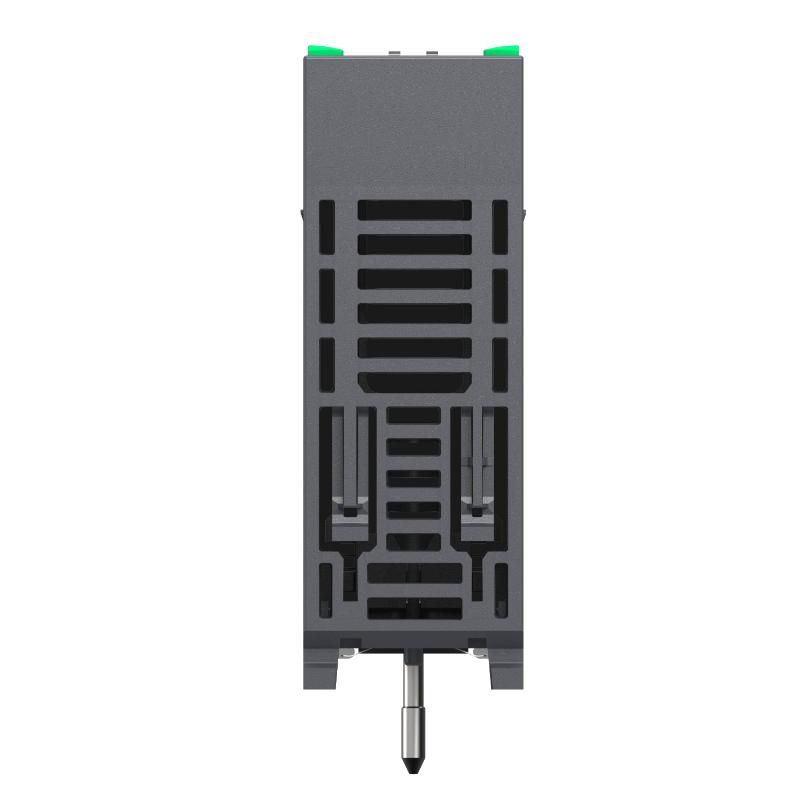

The Schneider BMENOC0311 is a high-performance Ethernet communication module designed for the Modicon M580 ePAC platform, enabling fast, secure, and scalable industrial networking.
Engineered for modern automation architectures, this module integrates FactoryCast Ethernet functionality with multi-protocol support, allowing seamless communication between PLCs, SCADA systems, remote I/O, and enterprise networks. It is particularly valued in large distributed systems where data transparency, network reliability, and real-time communication are critical.
With its built-in multiport switch and advanced diagnostics, the BMENOC0311 provides a powerful foundation for Industry 4.0-ready automation systems.
Technical Specifications — High-Speed Industrial Networking Capability
Core Technical Data
| Parameter | Specification |
|---|---|
| Product Model | BMENOC0311 |
| Series | Modicon M580 |
| Brand | Schneider |
| Module Type | Ethernet Communication Module |
| Ethernet Ports | 3 × RJ45 |
| Transmission Speed | 10/100 Mbps |
| Power Supply | Internal via rack |
| Current Consumption | ~555 mA |
| Protection Rating | IP20 |
Communication Features
- Supports Modbus TCP I/O scanning and messaging
- Supports EtherNet/IP communication
- SNMP network management support
- Bandwidth management and port mirroring
- RSTP (Rapid Spanning Tree Protocol) support
- Embedded multiport Ethernet switch
- FactoryCast web server for remote diagnostics and configuration
Mechanical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 29 × 130 × 120 mm (approx.) |
| Weight | Approx. 0.2 kg |
System Capabilities
- Supports up to 128 connected devices (distributed architecture)
- Compatible with BMEXBP Ethernet + X-bus racks
- Designed for medium to large-scale automation systems
- Integrated LED diagnostics for network and module status
Recommended Related Models — Network Expansion Options
- Schneider BMENOC0301 — standard Ethernet communication module
- Schneider BMENOC0321 — enhanced network performance version
- Schneider BMEP584040 — M580 processor module
- Schneider BMXNOC0401 — M340 Ethernet communication module
- Schneider BMEXBP series — M580 rack system
These models allow scalable network architecture design across different PLC platforms.
