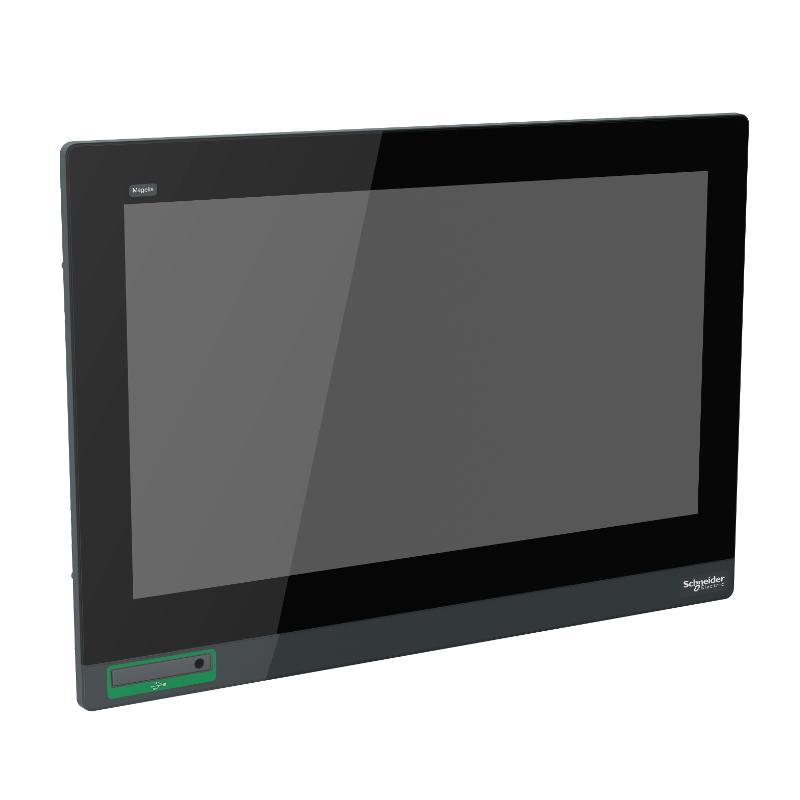

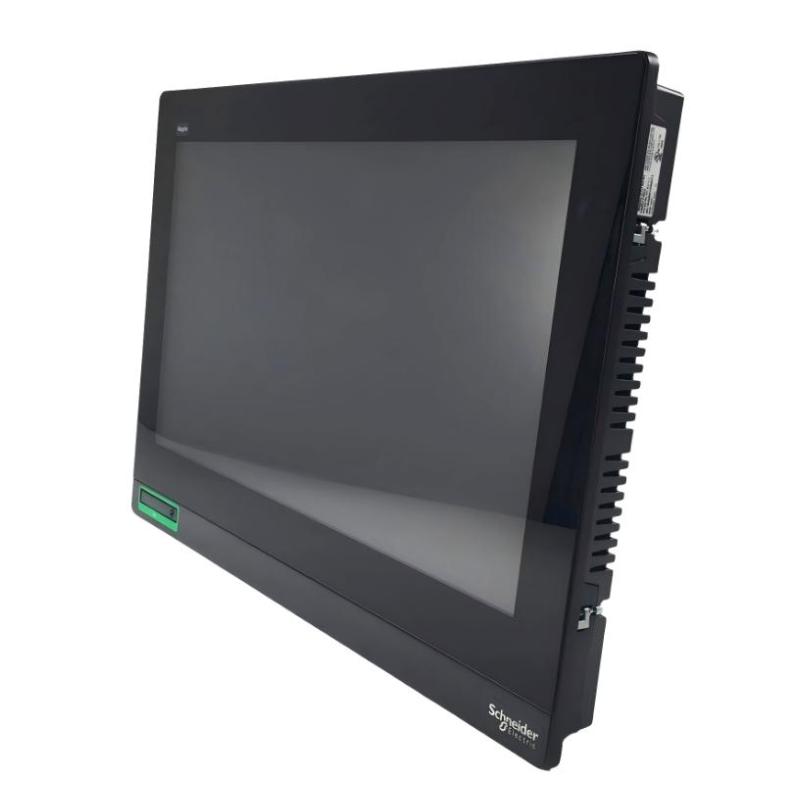

The Schneider HMIDT952 is a high-end Harmony GTU series industrial touchscreen display designed for complex automation environments that demand large-screen visualization, intuitive operation, and modern connectivity.
Featuring an 18.5-inch widescreen display with FWXGA resolution (1366 × 768), this HMI delivers sharp graphics, multi-window monitoring, and enhanced operator interaction. It is widely deployed in systems where real-time data visualization, alarms, and process control must be clearly presented on a large interface.
With multi-touch capability and modular GTU architecture, the HMIDT952 is built for scalable, IIoT-ready automation platforms, making it ideal for modern industrial digitalization projects.
Technical Specifications — High-Resolution Industrial Touch Interface
Core Technical Data
| Parameter | Specification |
|---|---|
| Product Model | HMIDT952 |
| Series | Harmony GTU |
| Brand | Schneider |
| Product Type | Touchscreen HMI Display |
| Display Size | 18.5 inch (19-inch class) |
| Resolution | 1366 × 768 (FWXGA) |
| Display Type | TFT LCD, 16 million colors |
| Touch Technology | Projected capacitive multi-touch |
| Power Supply | 12–24 V DC |
| Power Consumption | ~19 W |
Mechanical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 483 × 337 × 69 mm |
| Weight | Approx. 6.8 kg |
Performance & Features
- Multi-touch panel with up to 50 million touch cycles durability
- Backlight lifespan up to 50,000 hours
- Integrated USB interfaces (Type A & Mini-B)
- Built-in brightness sensor for adaptive display
- IP66/IP67 front protection for dust and water resistance
- Designed for 0–55°C industrial operating range
- Modular GTU architecture for flexible system integration
Recommended Related Models — Expansion and Alternative Options
- Schneider HMIDT752 — 15-inch version with similar architecture
- Schneider HMIDT642 — 12.1-inch industrial HMI
- Schneider HMIGTO2310 — compact modern touchscreen panel
- Schneider XBTGT7340 — large HMI alternative with integrated design
- Schneider HMIGXU series — next-generation high-performance HMI
These models support flexible scaling from compact panels to large visualization systems.
