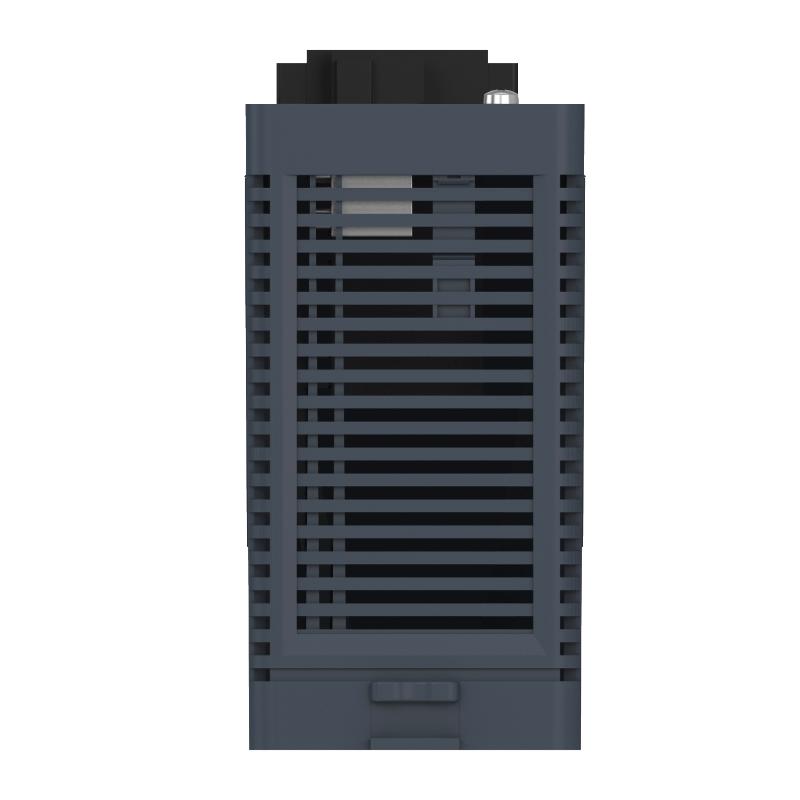

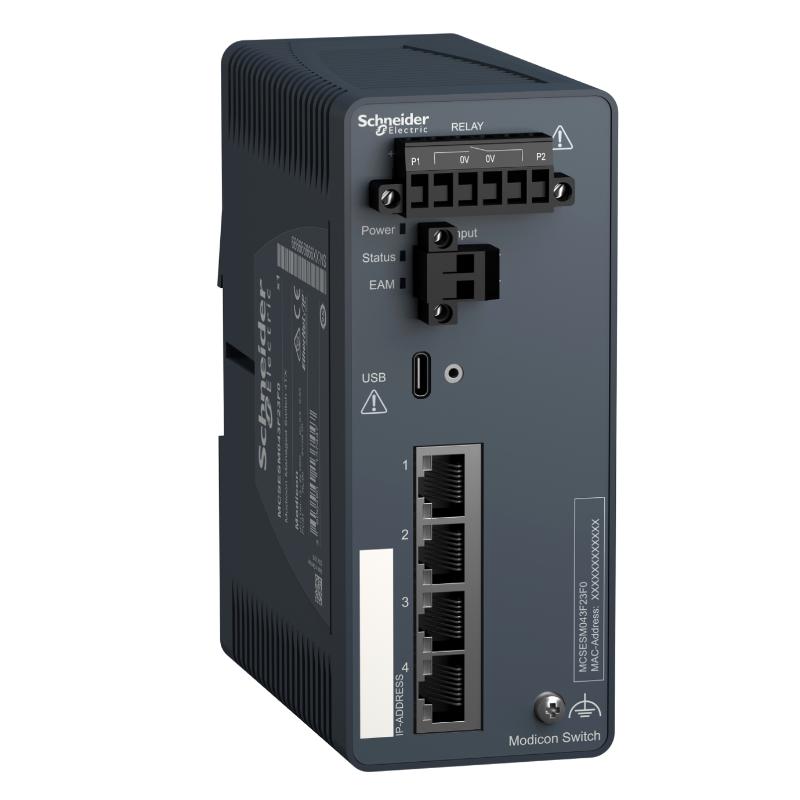

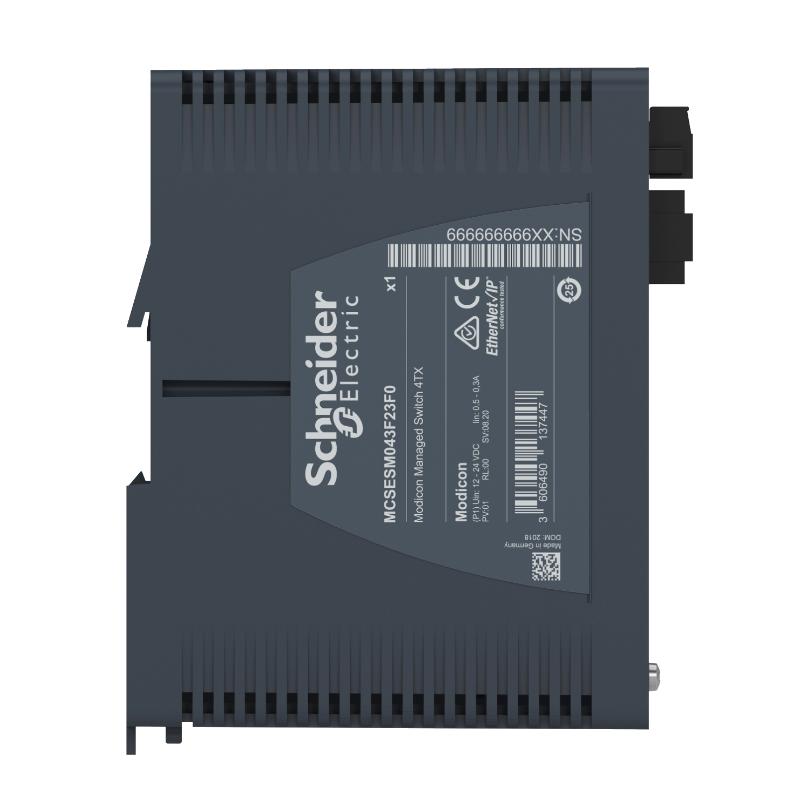

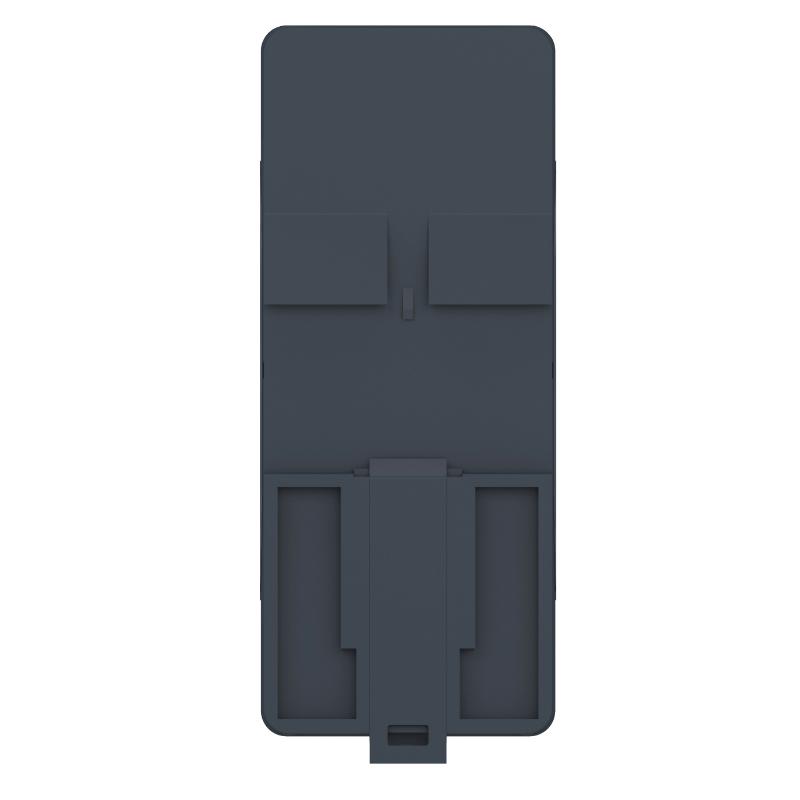

The Schneider MCSESM043F23F0 is a Modicon industrial managed Ethernet switch designed to provide secure, stable, and scalable network connectivity within automation systems.
Built for industrial environments, this switch delivers 4-port managed Ethernet communication with advanced cybersecurity, redundancy protocols, and flexible configuration capabilities. It is ideal for connecting PLCs, HMIs, drives, and remote I/O devices in a unified control network.
With its compact DIN rail design and robust performance, it offers a dependable networking solution for both small machine-level systems and distributed industrial architectures.
Technical Specifications — Industrial Networking Performance and Reliability
Core Technical Data
| Parameter | Specification |
|---|---|
| Product Model | MCSESM043F23F0 |
| Series | Modicon Networking |
| Brand | Schneider |
| Device Type | Managed Industrial Ethernet Switch |
| Number of Ports | 4 × RJ45 |
| Ethernet Type | 10/100Base-TX |
| Protocols | Ethernet TCP/IP, SNMP, HTTP, HTTPS, SSH |
| Mounting Type | DIN Rail |
| Protection Rating | IP30 |
Electrical & Network Features
- Input voltage: 9.6 – 32 V DC
- Supports Layer 2 switching and VLAN-based control
- Cybersecurity features: port security, access control, DoS protection
- Redundancy protocols: RSTP, MRP, HIPER-ring
- Web-based configuration (HTML5 interface)
Mechanical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 57 × 138 × 111 mm |
| Weight | Approx. 0.38 kg |
Environmental Conditions
- Operating temperature: 0°C to 60°C
- Humidity: up to 95% non-condensing
- Designed for industrial vibration and electrical noise environments
- Suitable for continuous 24/7 operation
Recommended Related Models — Network Expansion Options
- Schneider MCSESM083F23F0 — 8-port managed switch
- Schneider MCSESM103F2CS0 — advanced industrial Ethernet switch
- Schneider TCSESM083F23F0 — ConneXium managed switch series
- Schneider BMENOC0311 — M580 Ethernet communication module
- Schneider BMXNOC0401 — M340 Ethernet module
