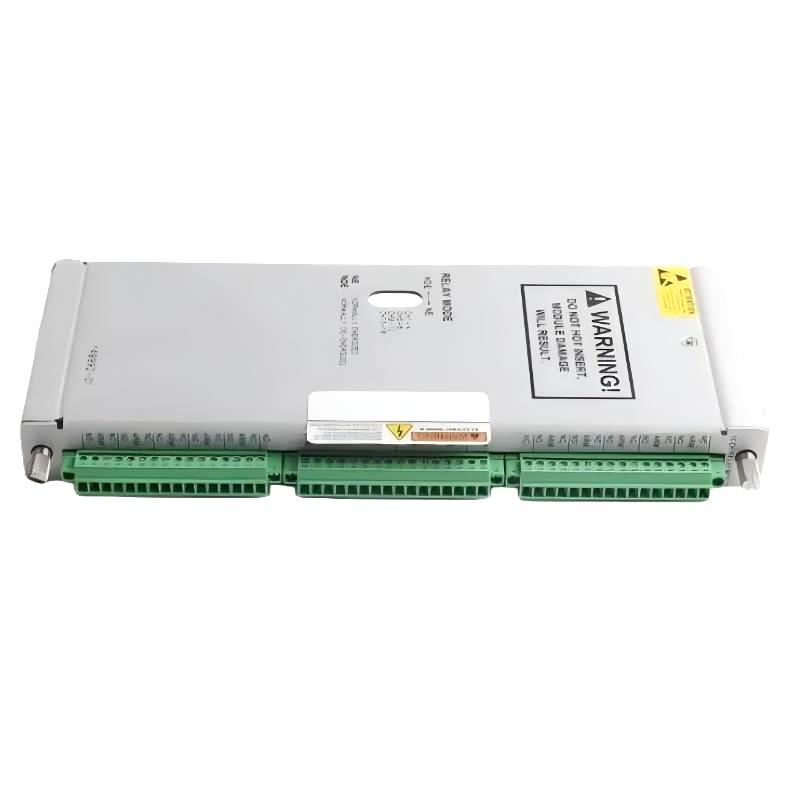

Bently Nevada 3500/33 149992-01 16-Channel Relay Module

Applications

The Bently Nevada 3500/33 149992-01 Relay Module is engineered to provide reliable relay output control within 3500/33 monitoring systems. Its primary applications include:

• Controlling alarm and trip outputs for 3500/33 vibration monitoring systems

• Integration with 3500/05 and 3500/20 system racks for industrial monitoring

• Supporting rotating equipment protection in power generation, oil & gas, and manufacturing

• Managing multiple relay channels for system redundancy and safety

• Facilitating automated responses to abnormal vibration or process conditions

Key Advantages

The 16-Channel Relay Module offers:

• Sixteen independent relay channels for precise control of alarms and trips

• Compact and robust design for easy integration into standard racks

• Seamless operation with 3500/33, 3500/20, and 3500/05 systems

• Simplified wiring and reduced system complexity

• Industrial-grade reliability for continuous 24/7 operation

Technical FAQs

1. What is the primary function of the 3500/33 16-Channel Relay Module?
   It provides reliable relay outputs to manage alarms and trips for monitoring systems.

2. How many relay channels are available?
   16 independent channels.

3. Is it compatible with 3500/05 and 3500/20 racks?
   Yes, fully compatible with standard 3500/05/20 system racks.

4. What is the module’s weight and dimensions?
   241 × 24.4 × 242 mm, weighing 0.7 kg.

5. Can it operate continuously in industrial environments?
   Yes, designed for 24/7 operation.

6. Which industries commonly deploy this module?
   Power generation, oil & gas, chemical processing, and manufacturing.

7. Does it support redundancy configurations?
   Yes, multiple relay modules can be installed for backup safety control.

8. Is configuration software required for operation?
   No, it integrates seamlessly within the 3500/33 system.

9. What types of outputs does it manage?
   Alarm, trip, and control outputs for industrial monitoring systems.

10. Is it suitable for harsh industrial environments?
    Yes, built with industrial-grade components for long-term reliability.
