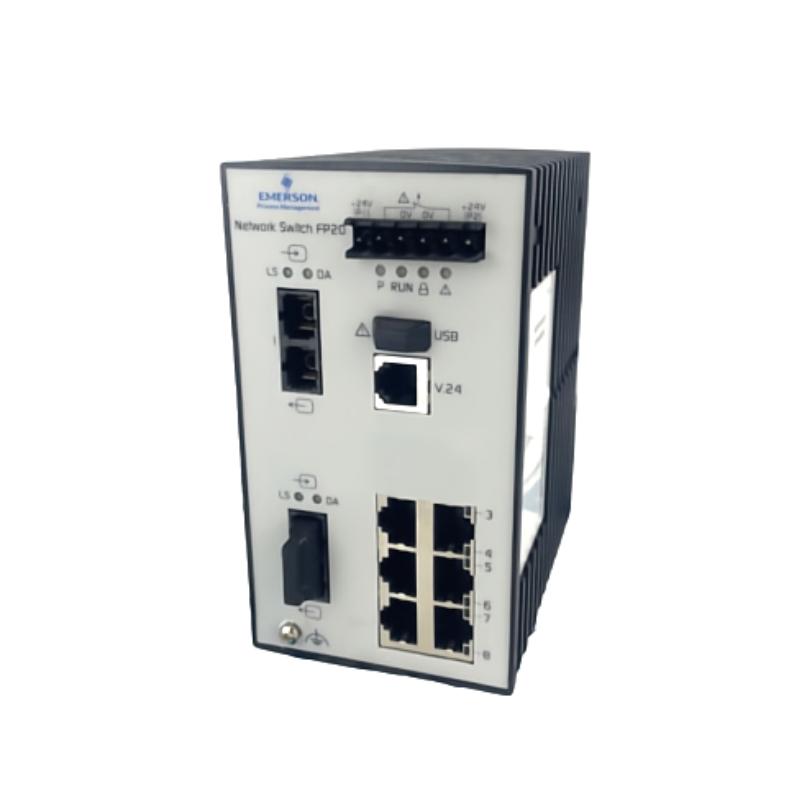

Emerson KJ1611X1-BE1 Communication Module (Industrial Ethernet Switch)

Applications (Industrial Network Communication Infrastructure)

The KJ1611X1-BE1 is widely used in:

• Oil & gas refinery control networks
• Petrochemical distributed control systems
• Power plant automation and monitoring
• Water treatment SCADA systems
• Industrial Ethernet-based control architectures
• Large-scale DCS network segmentation

It is especially suitable for applications requiring stable, high-speed communication across distributed control systems.

Advantages (Reliable Networking, Industrial Durability, System Integration)

• 8-port industrial Ethernet switching capability
• High switching capacity for real-time data transmission
• Supports redundant network architectures for high availability
• Advanced diagnostics and VLAN support for network control
• Strong resistance to EMI, vibration, and temperature variation
• Seamless integration with DeltaV and Ovation systems
• Compact DIN-rail-friendly design for control cabinets
• Proven reliability in continuous 24/7 industrial operation

Technical FAQs

1. What is the KJ1611X1-BE1 used for?
It is used as an industrial Ethernet switch in DeltaV control networks.

2. How many ports does it have?
8 Ethernet ports.

3. What communication speed does it support?
10/100 Mbps auto-negotiation.

4. Does it support VLAN?
Yes, IEEE 802.1Q VLAN is supported.

5. What is the power requirement?
24 V DC input.

6. What is the weight of the module?
Approximately 0.3–0.68 kg depending on version.

7. Is it suitable for industrial environments?
Yes, it is designed for harsh industrial conditions.

8. Does it support redundancy?
Yes, it supports redundant network architectures.

9. What systems is it compatible with?
Emerson DeltaV and Ovation systems.

10. Why is it important in DCS systems?
Because it ensures reliable, real-time communication between critical control components.
