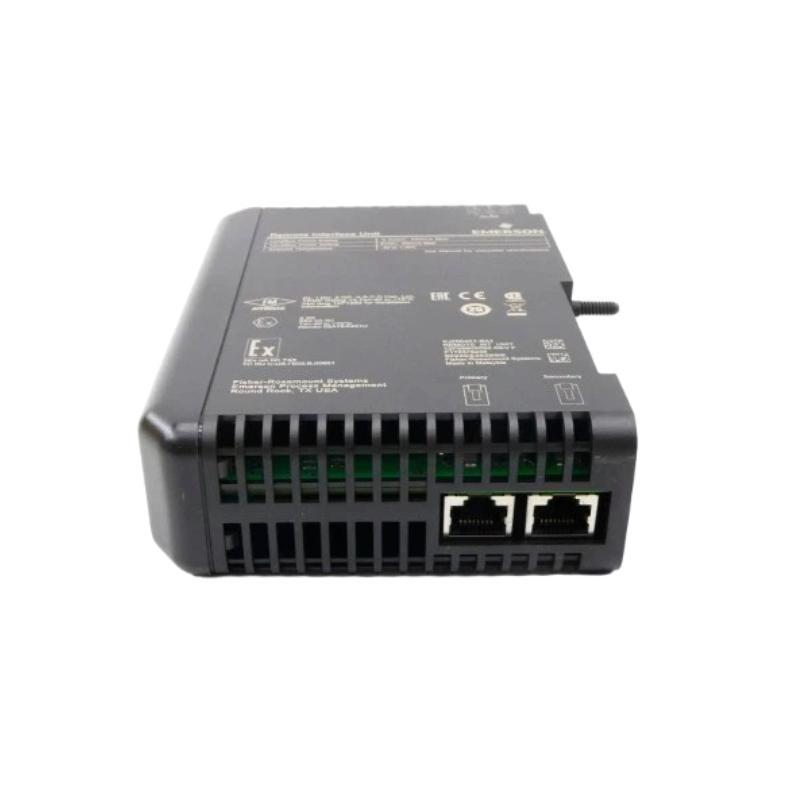

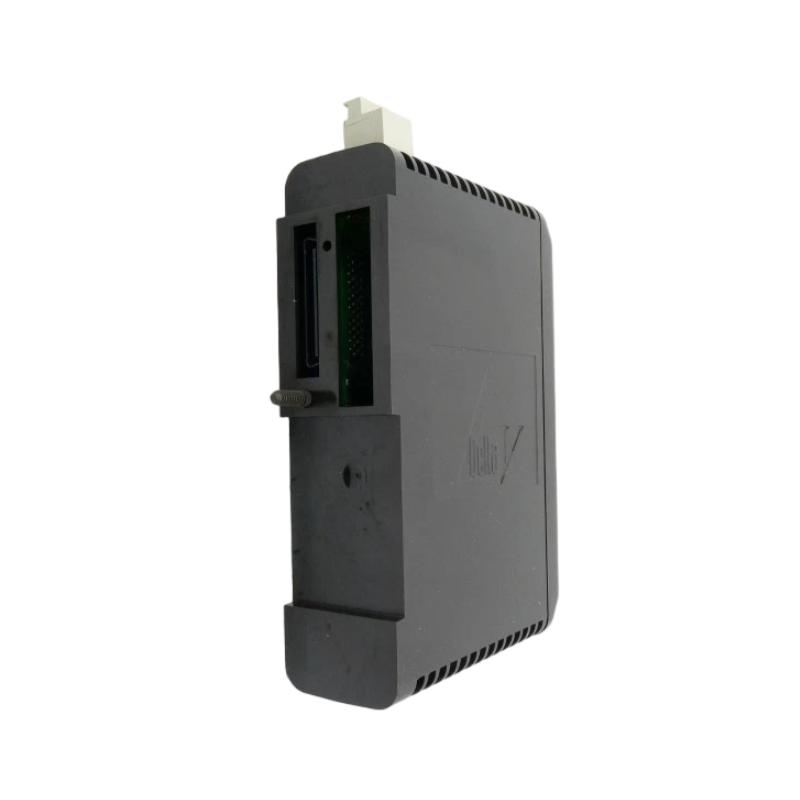

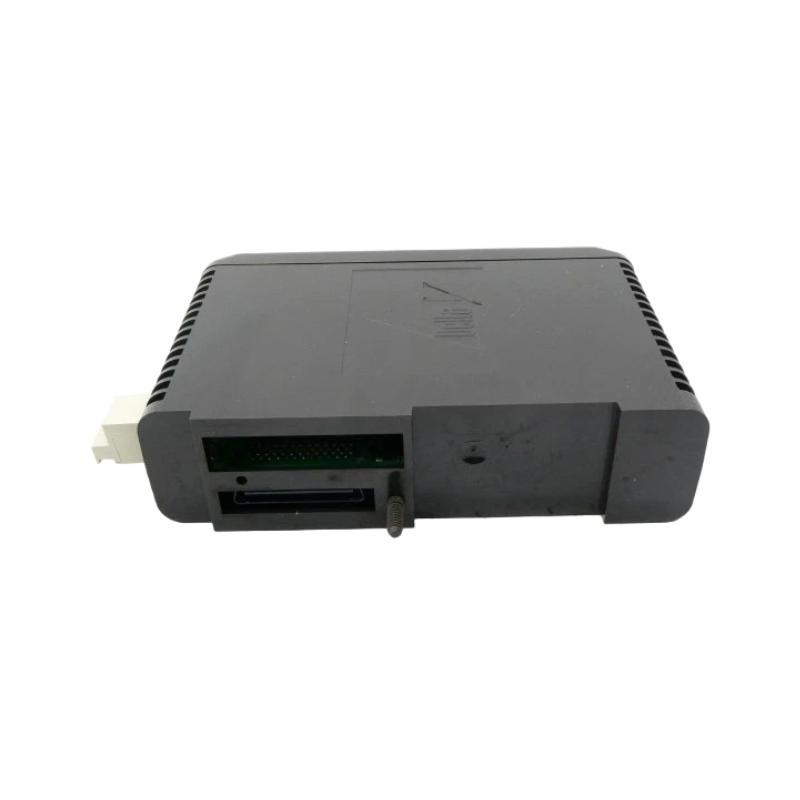

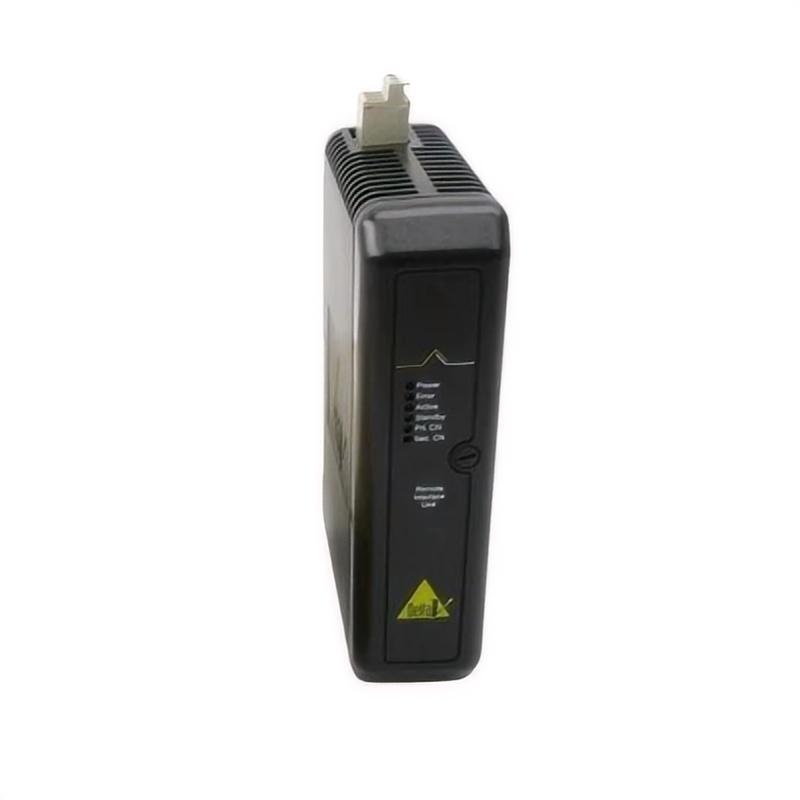

The Emerson KJ2004X1-BA1 VS3201 is a Remote Interface Unit (RIU) used in DeltaV distributed control systems (DCS) to provide secure and reliable communication between control system cores and remote I/O subsystems.
This module is designed for system expansion, remote rack integration, and distributed architecture deployment, allowing engineers to place I/O closer to the field while maintaining centralized control logic. It is widely applied in oil & gas, petrochemical, offshore platforms, and power generation facilities, where distance, redundancy, and signal integrity are critical design factors.
The VS3201 designation typically represents a configuration/variant identifier within Emerson DeltaV RIU architecture, ensuring compatibility with specific system versions and redundancy schemes.
Technical Specifications (Industrial Remote Interface & System Integration Module)
| Parameter | Details |
|---|---|
| Model | KJ2004X1-BA1 / VS3201 |
| Brand | Emerson |
| Product Type | Remote Interface Unit (RIU) |
| System Platform | DeltaV DCS |
| Function | Remote I/O communication & system extension |
| Communication Type | High-speed system bus / Ethernet-based architecture |
| Supported Architecture | Redundant control system design |
| I/O Compatibility | DeltaV I/O modules (M-series / distributed nodes) |
| Power Supply | 24 V DC system power |
| Local Bus Power | 5 V DC / internal regulated rails |
| Environmental Grade | Industrial (harsh environment ready) |
| Mounting Type | Panel / rack-mounted installation |
The KJ2004X1-BA1 (VS3201) functions as a DeltaV Remote Interface Unit used to connect distributed I/O systems to the central control network, supporting redundancy and high system availability.
Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | ~160 × 126 × 43 mm (typical RIU form factor) |
| Weight | ~0.5 – 2.5 kg (varies by configuration) |
Some industrial listings show shipping weight around 2.5 kg depending on enclosure and revision.
