Brand:Emerson Module Item No.:Emerson KJ3224X1-BA1 Product Origin:USA Product Dimensions:130 × 107.5 × 32.8 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

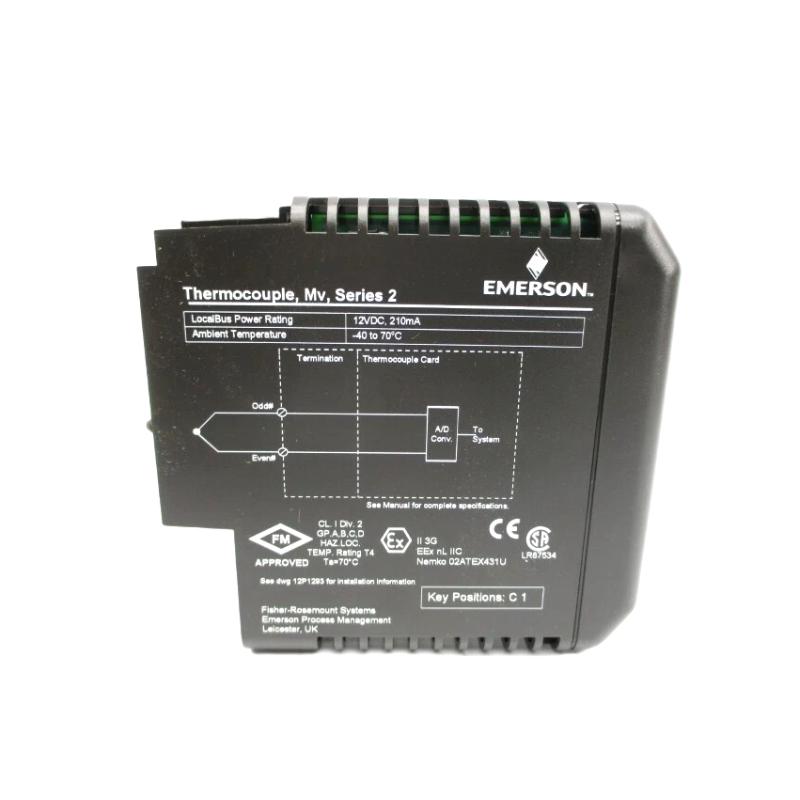

The Emerson KJ3224X1-BA1 is a high-performance thermocouple and millivolt (mV) analog input module designed for the DeltaV Distributed Control System (DCS). It is specifically engineered for temperature measurement and low-level voltage signal acquisition, making it essential for applications requiring precise thermal monitoring.
With advanced features such as cold junction compensation, high-resolution A/D conversion, and channel isolation, this module delivers reliable and accurate data in harsh industrial environments. It is widely used in power generation, oil & gas, and chemical processing, where temperature control is critical to safety and efficiency.
Technical Specifications (High-Precision Temperature Input Module)
Parameter
Details
Model
KJ3224X1-BA1
Brand
Emerson
Product Type
Thermocouple / mV Input Module
System Platform
DeltaV DCS
Input Channels
16 isolated channels
Input Types
Thermocouple (J, K, T, E, R, S, B, N), mV
Input Range
−10 mV to +75 mV
Resolution
16-bit A/D conversion
Accuracy
±0.1% of span
Cold Junction Compensation
Yes (per channel)
Open Circuit Detection
Supported
Isolation
Channel-to-channel & channel-to-bus
Operating Temperature
-40°C to +70°C
Designed for high-precision temperature measurement with multi-type thermocouple support and strong electrical isolation.
Physical Dimensions & Weight
Item
Specification
Dimensions (W × H × D)
~130 × 107.5 × 32.8 mm
Weight
~0.45 kg
Typical industrial weight range: ~0.45 kg depending on configuration.
Recommended Related Models (DeltaV I/O Ecosystem)
Emerson KJ3223X1-BK1 – Analog input module (4–20 mA + HART)
Emerson KJ3223X1-BA1 – Analog input module (Series 2)
Emerson KJ3102X1-BB2 – Analog output module
Emerson KJ3008X1-BA1 – Analog input module (M-series)
Emerson KJ1502X1-BB2 – System power supply module
Popular Emerson Models (DeltaV Core Hardware Family)
Emerson DeltaV MX / MD Controller Series
Emerson CHARMs I/O System
Emerson VE4003 / VE4005 I/O Modules
Emerson DeltaV Communication Cards
Emerson DeltaV Power Supply Modules
Applications (Precision Temperature Monitoring & Control)
The KJ3224X1-BA1 is widely used in:
Boiler and turbine temperature monitoring
Oil & gas refinery process control
Petrochemical reactor temperature measurement
Power plant instrumentation systems
Furnace and heat treatment process control
Chemical production temperature loops
It is especially suitable for applications requiring high-accuracy thermocouple measurement and stable low-level signal acquisition.
