Brand:Honeywell DCS Item No.:621-0020R Product Origin:USA Product Dimensions:168 x 30 x 130 mm Product Weight:0.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

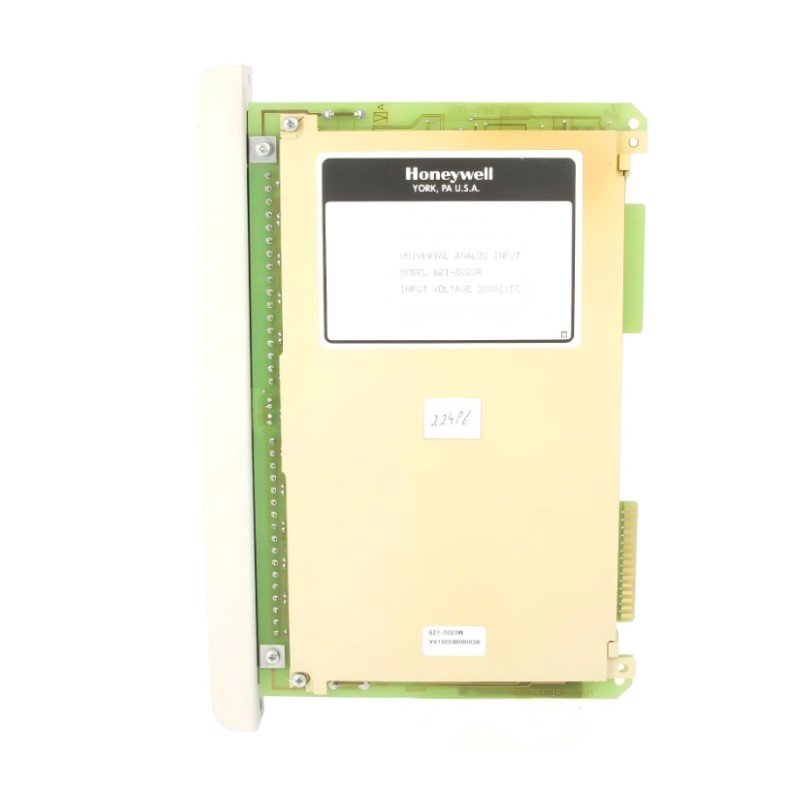

The Honeywell 621-0020R is a universal analog input module designed for high-reliability signal acquisition in industrial automation systems. It collects and converts analog signals from field devices such as transmitters and sensors into digital values for processing within distributed control systems.
Engineered for demanding industrial environments, it is widely used in Honeywell-based control architectures where accuracy, stability, and continuous operation are essential.
Technical Specifications
Item
Specification
Model
621-0020R
Type
Universal Analog Input Module
System Compatibility
Honeywell DCS / FSC systems
Input Channels
16 analog inputs
Input Types
Voltage / Current / RTD / Thermocouple
Conversion
12-bit A/D conversion
Function
Signal acquisition and processing
Installation
Rack-mounted module
Dimensions
168 × 30 × 130 mm
Weight
0.6 kg
Operating Mode
Continuous industrial operation
Construction
Industrial-grade electronic module
Recommended Related Models
Model
Product Name
10104/2/1
Honeywell Digital Input Module
10208/2/1
Honeywell Relay Output Module
10300/1/1
Honeywell Conversion Module
FSC Series
Honeywell Safety & Control System Modules
Popular Related Models
Model
Product Name
621-0020R
Honeywell Universal Analog Input Module
621 Series
Honeywell Analog Input Module Family
FSC I/O Series
Honeywell Distributed Control Modules
Honeywell DCS Series
Process Control System Platform
Applications
• Industrial analog signal acquisition in distributed control systems
• Integration within Honeywell FSC and legacy DCS architectures
• Process monitoring in oil & gas, petrochemical, and power generation plants
• Temperature, pressure, flow, and level signal collection from field instruments
• Industrial automation systems requiring multi-channel analog measurement
• Legacy system expansion and modernization of installed control platforms
• High-reliability data acquisition for continuous process control
Key Advantages
• 16-channel universal analog input capability for multi-signal acquisition
• Supports multiple signal types including voltage and current inputs
• High-resolution A/D conversion for accurate process monitoring
• Channel-to-channel electrical isolation for improved signal integrity
• Designed for stable operation in harsh industrial environments
• Hot-swappable design enables maintenance without full system shutdown
• Fully compatible with Honeywell distributed control architectures
Technical FAQs
Q1: What is the main function of the 621-0020R module?
It converts analog field signals into digital data for use in control systems.
Q2: How many input channels does it support?
It supports up to 16 analog input channels.
Q3: What types of signals can it accept?
It can accept voltage, current, RTD, and thermocouple signals depending on configuration.
Q4: Is it suitable for DCS systems?
Yes, it is widely used in Honeywell DCS and FSC architectures.
Q5: Does it support hot swapping?
Yes, the “R” version allows replacement without shutting down the system.
Q6: Is it isolated electrically?
Yes, it provides channel-to-channel and system isolation for safety and accuracy.
Q7: What industries commonly use it?
Oil & gas, petrochemical, power generation, and heavy industrial sectors.
Q8: Is it still used in modern systems?
It is mainly used in existing installed and legacy Honeywell systems.
Q9: Does it require complex configuration?
No, it integrates directly into Honeywell control system frameworks.
Q10: Is it designed for continuous operation?
Yes, it supports 24/7 industrial duty cycles.
