Brand:Honeywell DCS Item No.:900RTR-H001 Product Origin:USA Product Dimensions:89 x 133 x 52 mm Product Weight:0.227 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

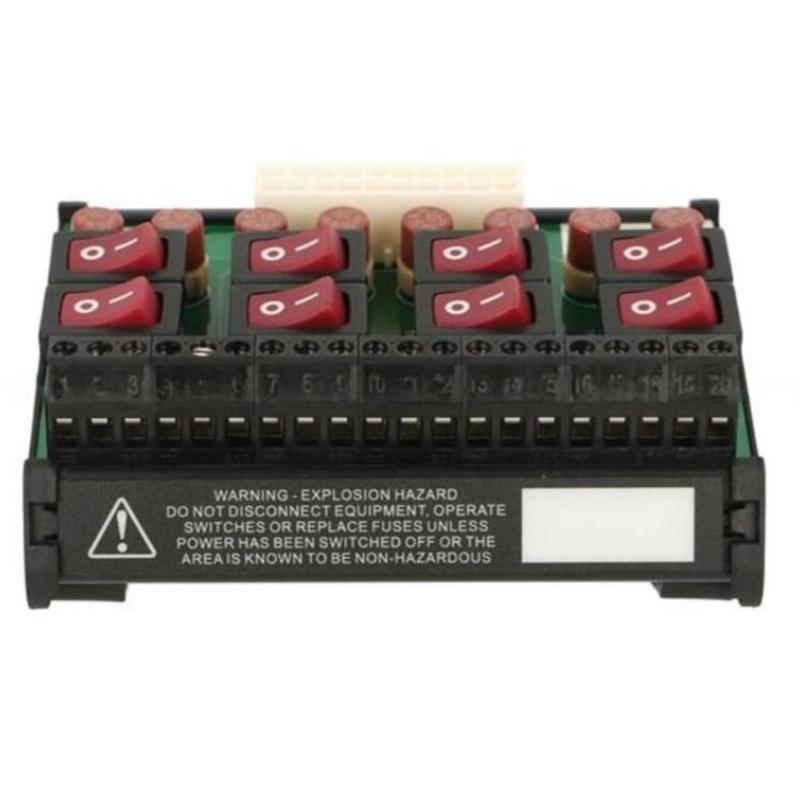

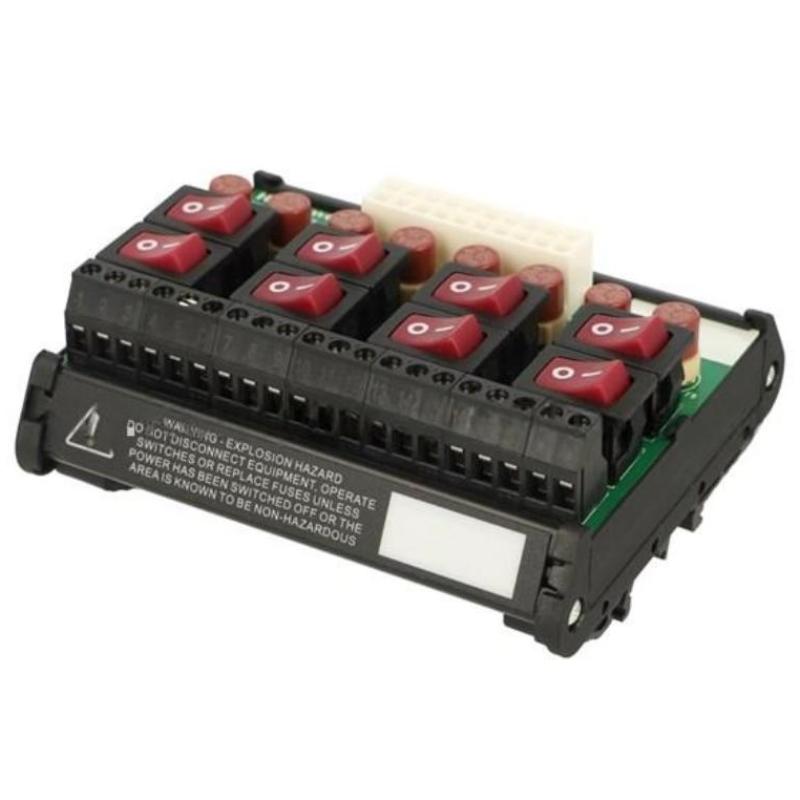

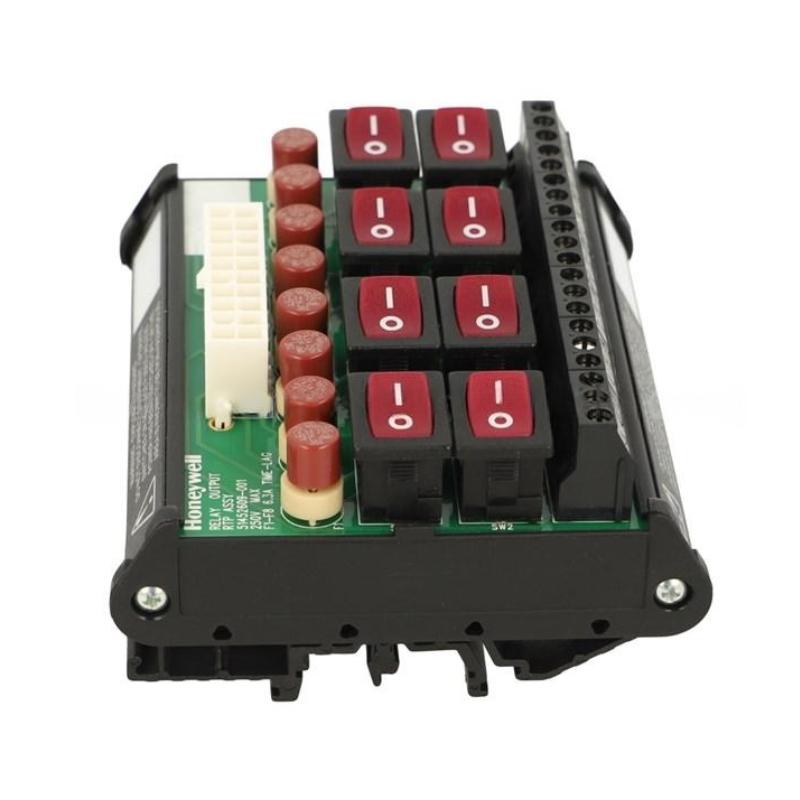

The Honeywell 900RTR-H001 is a Relay Output Remote Terminal Panel (RTP) module designed for industrial automation systems requiring multiple isolated relay outputs. It is widely used in Honeywell HC900 architectures to interface control signals with field devices such as actuators, alarms, and process equipment.
Engineered for reliability and scalability, it provides a structured and protected relay output solution for complex industrial control environments.
Technical Specifications
Item
Specification
Model
900RTR-H001
Type
Relay Output RTP Module
System Compatibility
Honeywell HC900 ControlEdge
Output Channels
20 relay outputs
Output Type
Electromechanical relay
Protection
Individual fuses per channel
Voltage Rating
Up to 250V AC
Current Rating
Up to 6.3A (per channel depending on group)
Mounting
Terminal panel / rack integration
Dimensions
89 × 133 × 52 mm
Weight
0.227 kg
Operating Mode
Continuous industrial operation
Construction
Industrial-grade relay terminal module
Recommended Related Models
Model
Product Name
900G03-0001
Honeywell HC900 Switching Power Supply
900G02-0102
Honeywell Digital Input Module
900G01-0102
Honeywell Analog Input Module
HC900 Series
Honeywell Hybrid Control System Platform
Popular Related Models
Model
Product Name
900RTR-H001
Honeywell Relay Output RTP Module
900RTR Series
Honeywell Relay Output Terminal Modules
HC900 Series
Honeywell ControlEdge Platform
Honeywell 900G Series
Honeywell I/O Module Family
Applications
• Industrial relay output switching in distributed control systems
• Integration with Honeywell ControlEdge HC900 automation architectures
• Process control for valves, pumps, alarms, and actuators
• Oil & gas pipeline and terminal automation systems
• Power generation and utility plant control output management
• Petrochemical and refinery equipment control interfaces
• Remote terminal panel (RTP) signal expansion in field installations
Key Advantages
• 20-channel relay output design for high-density control applications
• Individual channel fusing for enhanced protection and reliability
• Supports robust interfacing with external industrial loads
• Designed for harsh industrial environments with long service life
• Simplifies wiring through centralized terminal panel structure
• High compatibility with Honeywell HC900 distributed control systems
• Suitable for continuous 24/7 mission-critical operation
Technical FAQs
Q1: What is the main function of the 900RTR-H001 module?
It provides relay-based output switching for controlling external industrial devices.
Q2: How many output channels does it support?
It supports 20 independent relay output channels.
Q3: Does each channel have protection?
Yes, each channel is individually fused for protection.
Q4: What system is it used in?
It is used in Honeywell ControlEdge HC900 systems.
Q5: What types of loads can it control?
It can control pumps, solenoids, valves, alarms, and other industrial loads.
Q6: Is it suitable for harsh environments?
Yes, it is designed for industrial-grade conditions.
Q7: Is it a safety module?
It is used in control applications but not as a primary safety shutdown device.
Q8: Can it be used in remote installations?
Yes, it is designed as a Remote Terminal Panel (RTP) module.
Q9: What industries commonly use it?
Oil & gas, petrochemical, power generation, and industrial automation sectors.
Q10: Does it support continuous operation?
Yes, it is designed for 24/7 industrial duty cycles.
