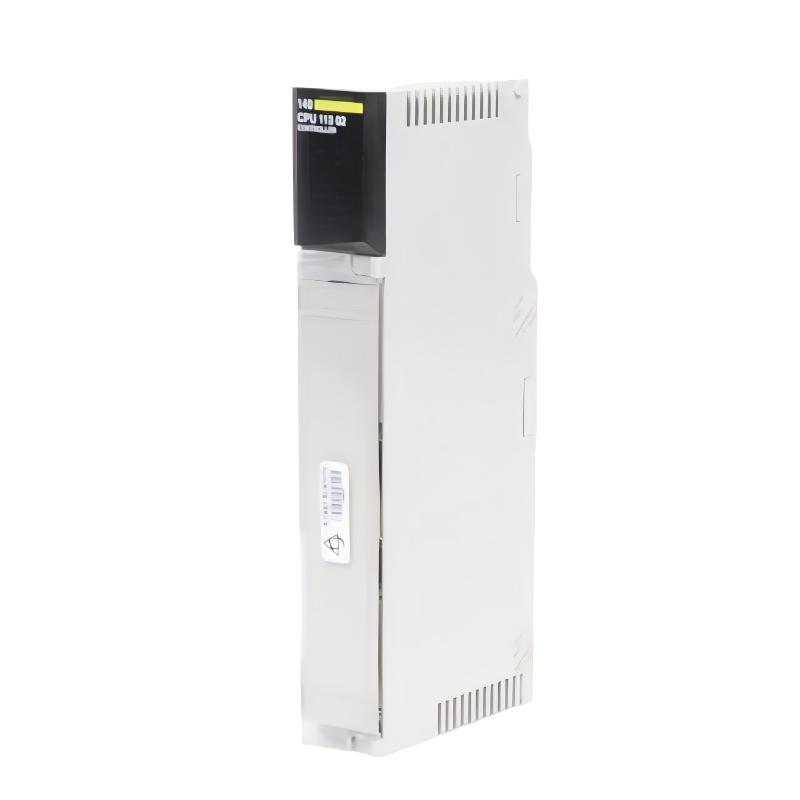

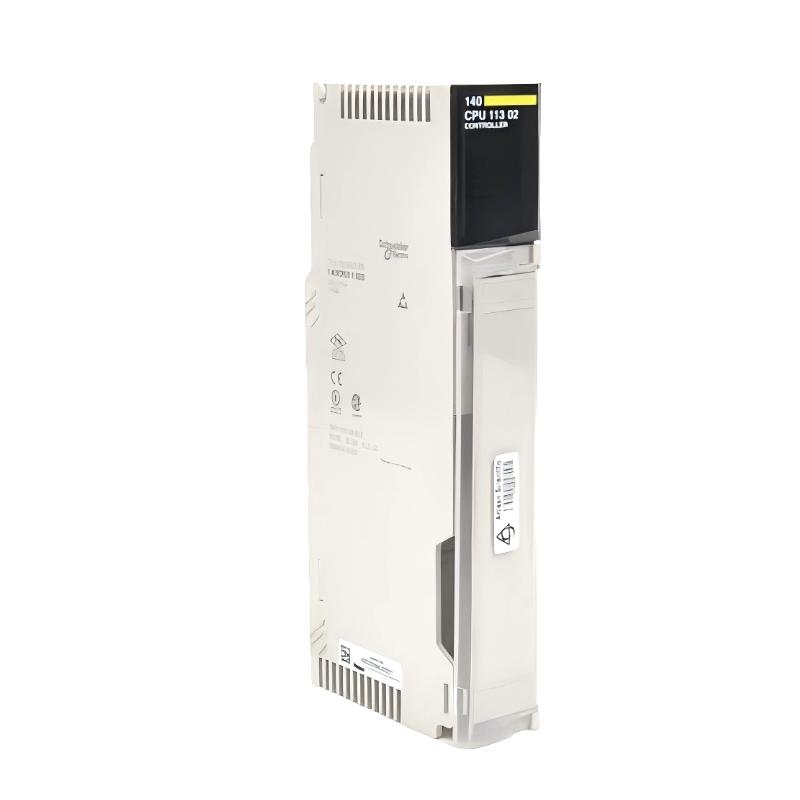

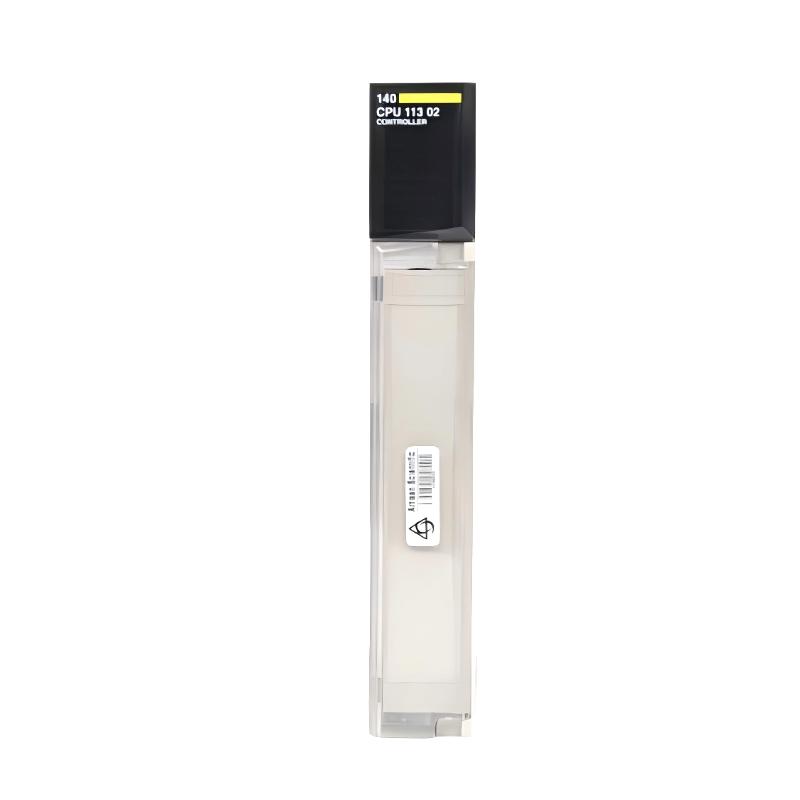

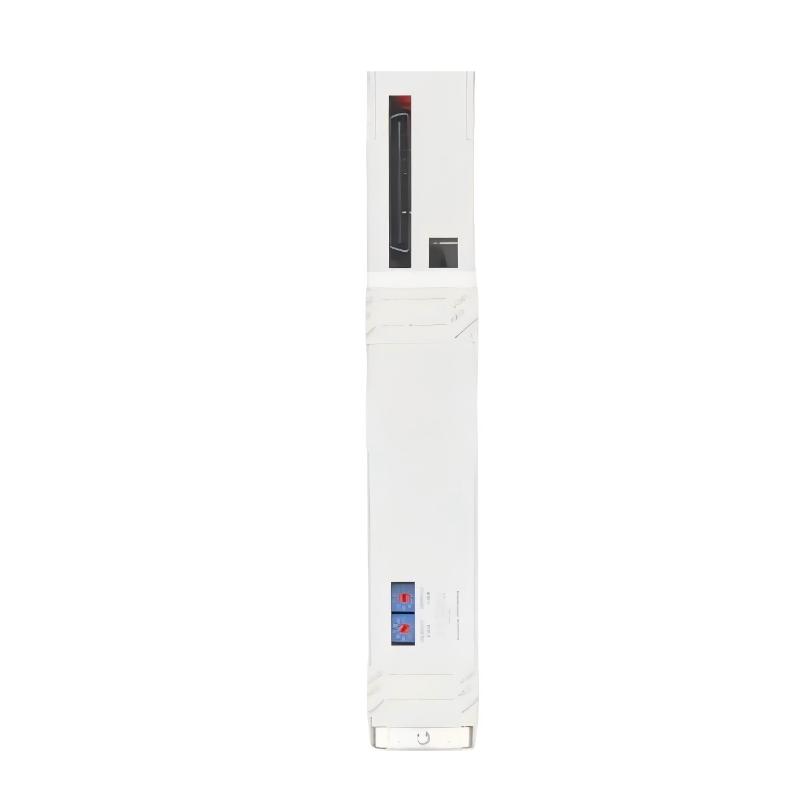

The Schneider Electric 140CPU11302R is a high-reliability Modicon Quantum CPU module designed for industrial automation control systems. As part of the Quantum PLC platform, this processor acts as the central control unit responsible for executing logic, managing I/O operations, and coordinating communication across distributed industrial networks.
Built for demanding continuous-process industries, the 140CPU11302R delivers stable performance in mission-critical environments such as oil & gas, power generation, and large-scale manufacturing. Although part of a legacy Quantum architecture, it remains widely deployed due to its robustness, long lifecycle, and proven field reliability.
Its modular design allows seamless integration with Quantum backplane systems, making it a trusted choice for maintaining or upgrading existing automation infrastructure.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140CPU11302R |
| Product Type | CPU / Processor Module |
| Series | Modicon Quantum |
| Processor Type | Intel 80186-class architecture |
| Memory (RAM) | 256 KB |
| Flash Memory | 256 KB – 1 MB (variant dependent) |
| Communication Ports | Modbus RS-232, Modbus Plus |
| Max I/O Capacity | Up to 256 I/O modules |
| RIO Drops Support | Up to 31 remote I/O drops |
| Battery | 3V lithium backup battery |
| Power Dissipation | ~3.9 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | Up to 95% non-condensing |
| Weight | ~0.4 kg |
| Dimensions | Approx. 51 mm × 254 mm × 102 mm |
This CPU is designed for stable deterministic control performance, even in electrically noisy industrial environments.
