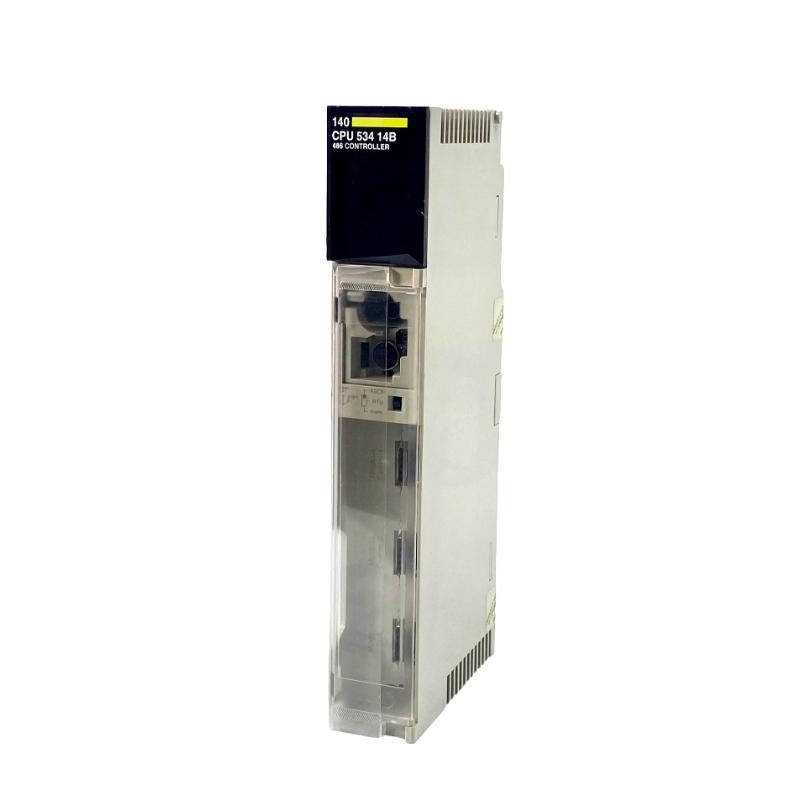

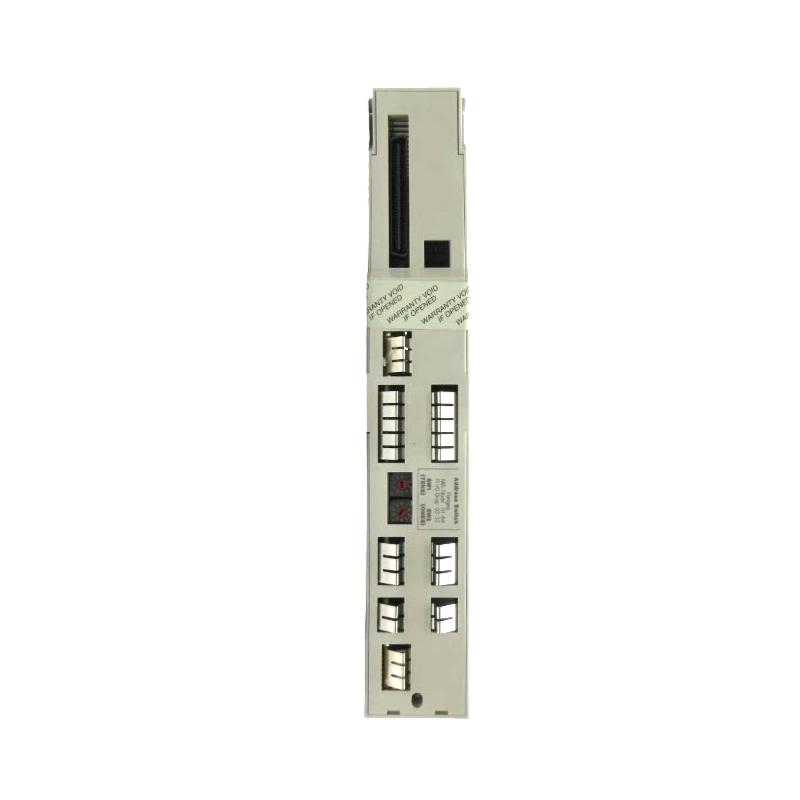

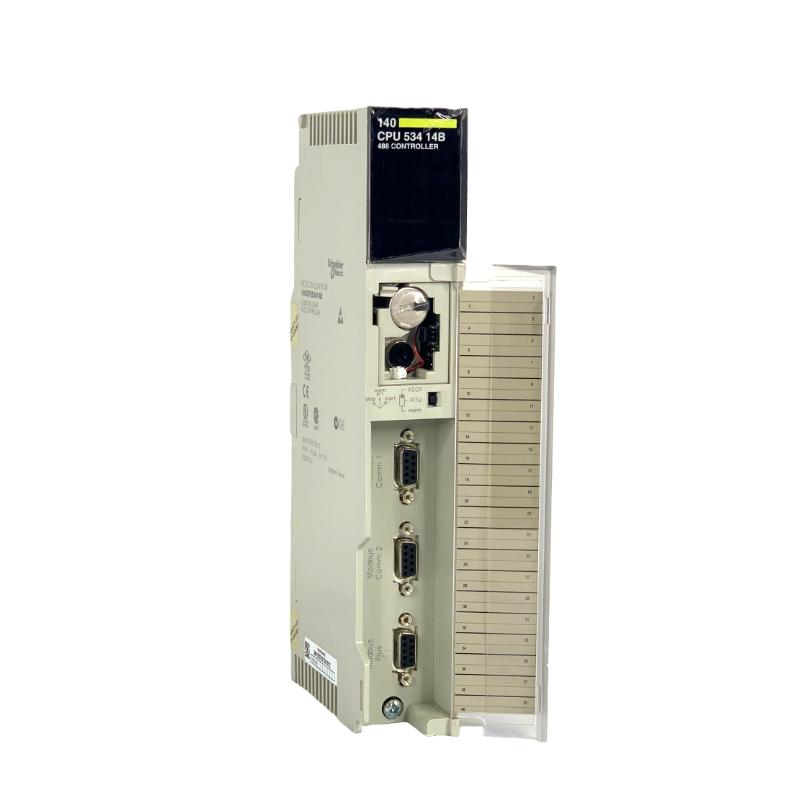

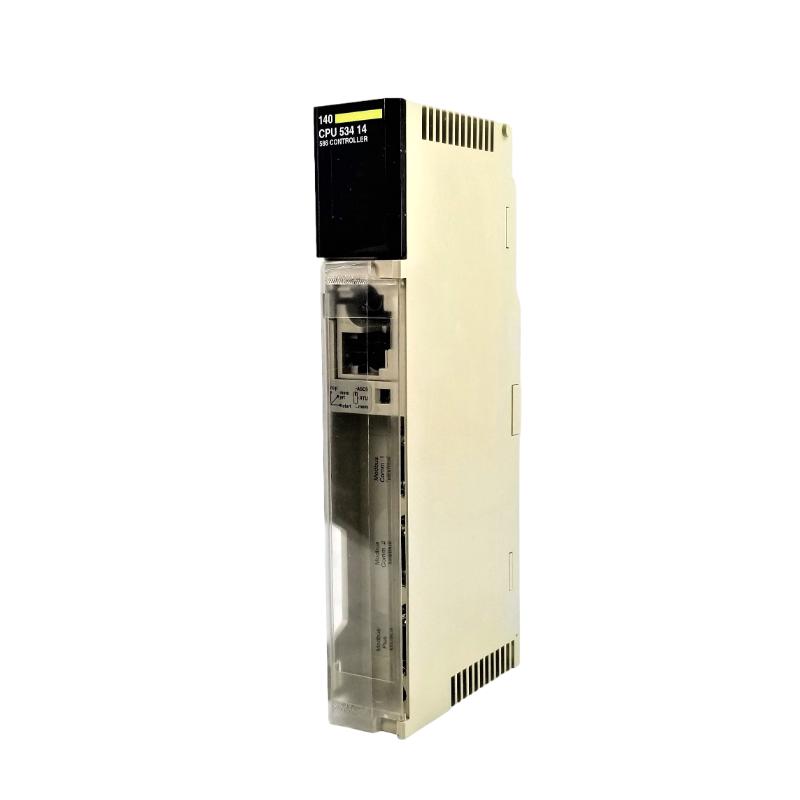

The Schneider Electric 140CPU53414C is a high-performance Modicon Quantum CPU module designed for complex industrial automation and process control systems. It serves as the central processing unit of the Quantum PLC architecture, responsible for executing control logic, managing I/O modules, and coordinating communication across distributed industrial networks.
This model is widely deployed in heavy-duty industries such as oil & gas, petrochemicals, energy production, and large-scale manufacturing, where reliability and processing speed are critical. With its robust processor architecture and expanded memory capabilities, the 140CPU53414C is engineered to support demanding real-time automation tasks in continuous operation environments.
Despite being part of a legacy platform, it remains highly valued for system maintenance, retrofit projects, and long-term industrial installations.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140CPU53414C |
| Product Type | CPU / Processor Module |
| Series | Modicon Quantum |
| Processor Type | 80486-class industrial CPU |
| RAM | 586 KB |
| Program Memory | Up to 4 MB |
| Communication Ports | Modbus RS-232, Modbus Plus |
| Memory Expansion | PCMCIA slot supported |
| Execution Performance | High-speed deterministic control (~0.1–0.5 ms instruction time) |
| Max I/O Capacity | Up to 24 local racks / expanded distributed I/O |
| Remote I/O Support | Up to 31 drops |
| Battery Backup | Lithium battery for memory retention |
| Power Supply | 5 V DC backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | ~0.8–1.2 kg |
| Dimensions | Approx. 250 mm × 100 mm × 50 mm |
The module is engineered for stable high-speed processing and reliable communication in harsh industrial environments with strong electromagnetic interference resistance.
Recommended Related Models
- Schneider 140CPU43412AR – Hot standby Quantum CPU variant
- Schneider 140CPU65160 – High-end Quantum processor module
- Schneider 140CPS52400C – Redundant power supply module
- Schneider 140CRP93100 – Remote I/O communication processor
- Schneider Quantum 140XBP backplane system – Rack infrastructure
Popular Schneider Electric Models
- Schneider M580 BMEP58 series – Modern Ethernet-based PLC platform
- Schneider M340 BMXP342020 – Compact PLC controller
- Schneider 140CPU11302R – Entry-level Quantum CPU module
- Schneider 140DDI35300 – Digital input module
- Schneider 140DAO84000 – Analog output module
These products represent both legacy Quantum systems and newer Schneider automation platforms widely used across global industries.
