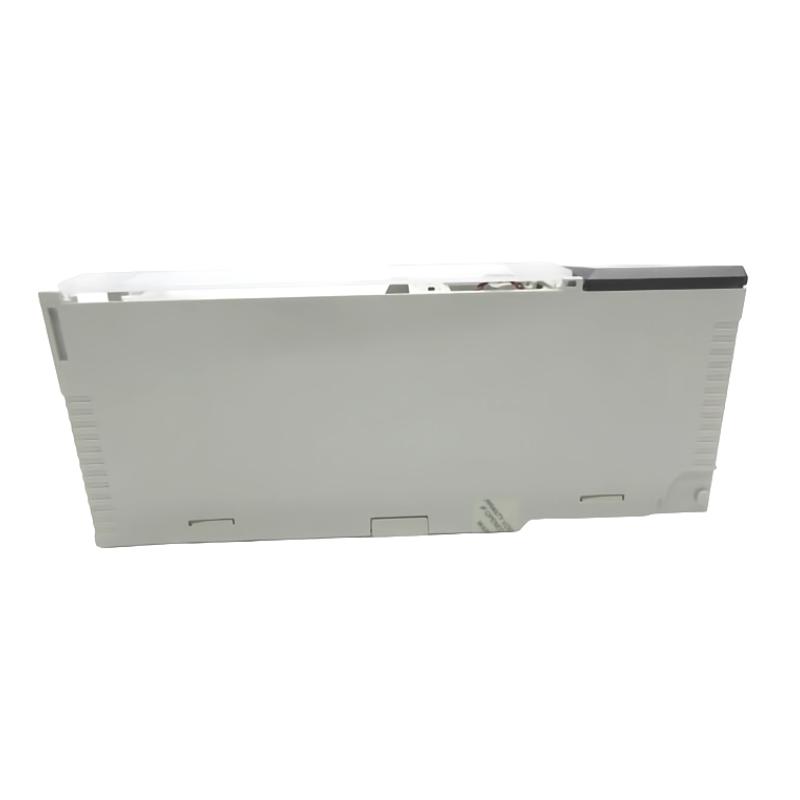

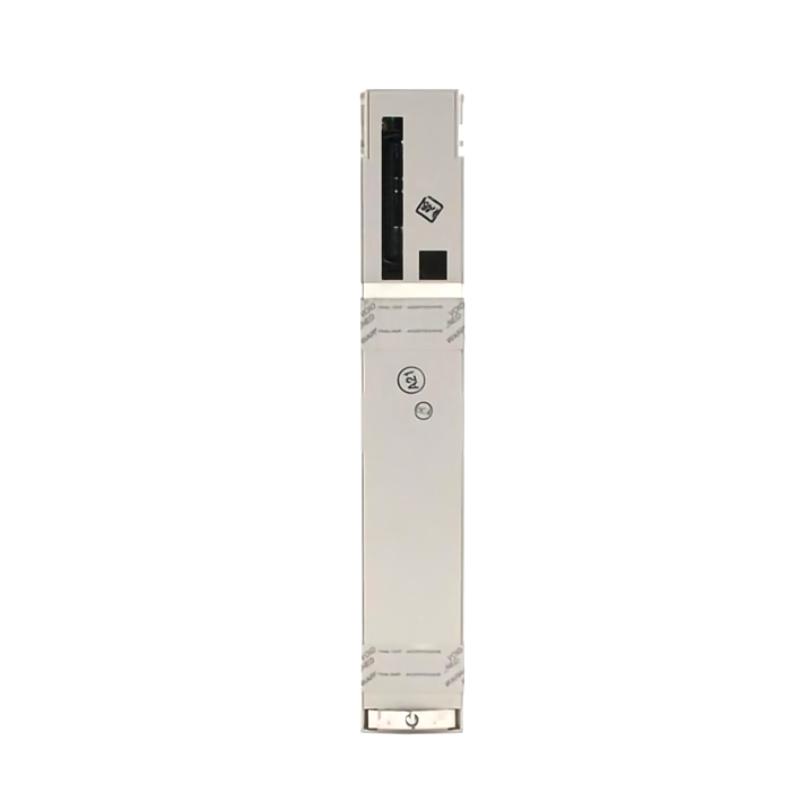

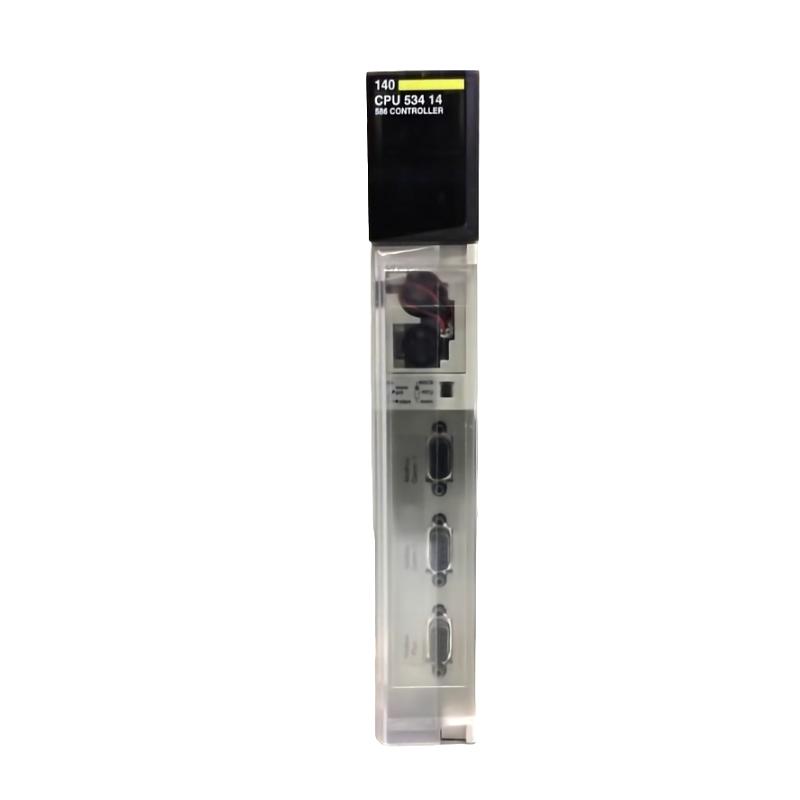

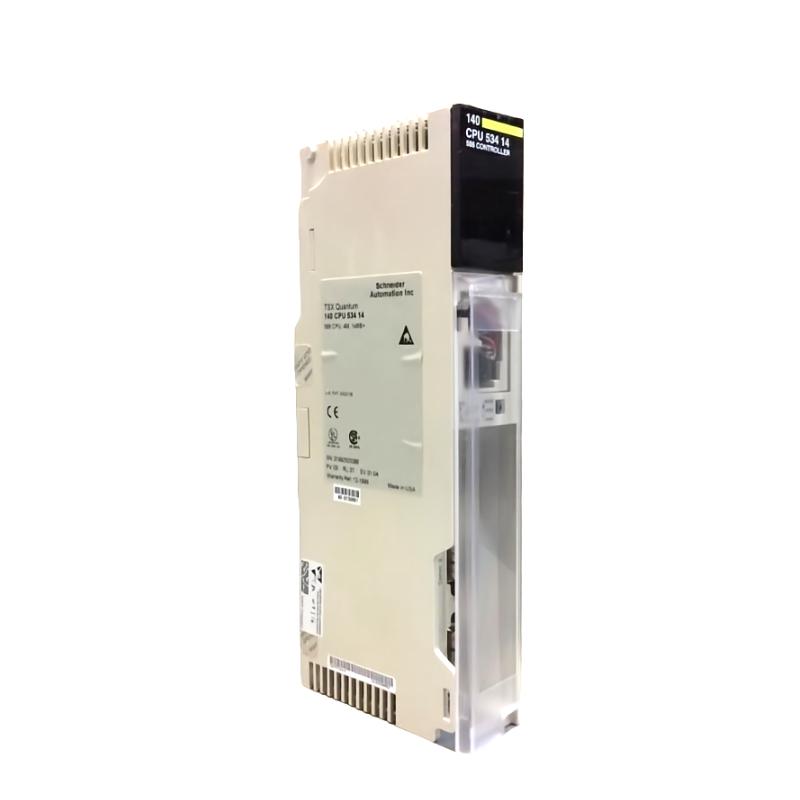

The Schneider Electric 140CPU53414UC is a high-performance Modicon Quantum CPU module designed for complex industrial automation and process control systems requiring strong computational capability, deterministic execution, and reliable communication handling.
Positioned within the Quantum PLC ecosystem, this CPU acts as the central processing unit responsible for executing control programs, coordinating distributed I/O modules, and managing industrial communication networks in real time. It is widely used in demanding environments such as oil & gas, petrochemical processing, power generation, and large-scale manufacturing systems.
The “UC” variant is typically associated with enhanced firmware compatibility and system integration flexibility, making it suitable for modernization or upgrade scenarios within installed Quantum architectures.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140CPU53414UC |
| Product Type | CPU / Processor Module |
| Series | Modicon Quantum |
| Processor Type | 80486-class industrial CPU |
| Clock Speed | ~66 MHz |
| RAM | ~586 KB |
| Program Memory | Up to ~4 MB (system dependent) |
| Communication Ports | Modbus RS-232, Modbus Plus |
| Network Options | Supports NOE/NOM communication modules |
| Programming Environment | Unity / Concept (depending on system firmware) |
| Max I/O Capacity | Up to 256 I/O modules (distributed architecture) |
| Remote I/O Drops | Up to 31 drops |
| Battery Backup | Lithium battery for memory retention |
| Power Requirement | 5 V DC backplane supply |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% – 95% non-condensing |
| Weight | ~0.8 – 1.0 kg (industry listings vary) |
| Dimensions | Approx. 250 mm × 100 mm × 50 mm |
This CPU is designed for stable real-time execution and long-term reliability in electrically noisy and mission-critical environments.
