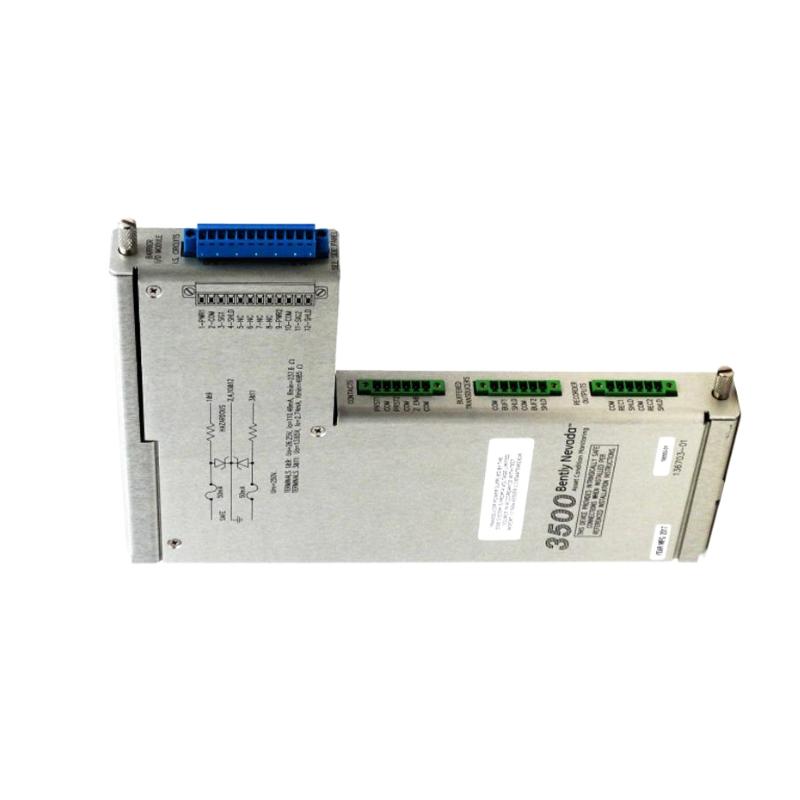

Bently Nevada 3500/04 136719-01+138527-01 Internal Barriers Module

Applications

The Bently Nevada 3500/04 136719-01 combined with 138527-01 Internal Barriers Module is designed to enhance signal isolation and safety within 3500 Series monitoring system racks. It is used in rotating machinery monitoring environments such as turbines, compressors, and generators, where reliable signal separation and electrical protection are critical. This module ensures that sensitive measurement signals remain isolated from potential electrical faults while maintaining accurate monitoring.

Advantages

This module combination provides both earthing and internal barrier protection, enhancing overall system reliability. By maintaining electrical isolation between channels, it prevents cross-talk and interference, ensuring precise vibration and proximity measurements. Its compact and robust design allows easy integration into standard 3500 Series racks, while supporting safe and secure signal routing in harsh industrial environments. Engineers rely on it to safeguard sensitive modules and maintain system performance under demanding conditions.

FAQs

1. What is the purpose of the 3500/04 + 138527-01 Internal Barriers Module?
It provides internal signal isolation and earthing to protect sensitive modules within the rack.

2. Can it be used with all 3500 Series monitoring racks?
Yes, it is compatible with standard 3500 Series racks requiring earthing and signal isolation.

3. Does the module prevent electrical interference?
Yes, it minimizes cross-talk and ensures clean signal transmission between channels.

4. How many channels can this module support?
It supports multiple I/O channels as designed within the 3500 Series rack configuration.

5. Is user configuration required for operation?
No, it functions as a passive internal barrier and earthing module without user configuration.

6. Can it withstand harsh industrial environments?
Yes, it is built to resist vibration, temperature fluctuations, and mechanical stress.

7. Does it enhance measurement accuracy?
Yes, by isolating channels and reducing interference, it helps maintain precise sensor readings.

8. Is it easy to install within the rack?
Yes, it is designed for seamless integration into the standard module slots of 3500 Series racks.

9. Does it work in conjunction with other 3500/04 modules?
Yes, it complements earthing and I/O modules to provide full electrical protection.

10. What maintenance is required?
Periodic visual inspection for secure connections is recommended; no active maintenance is needed.
