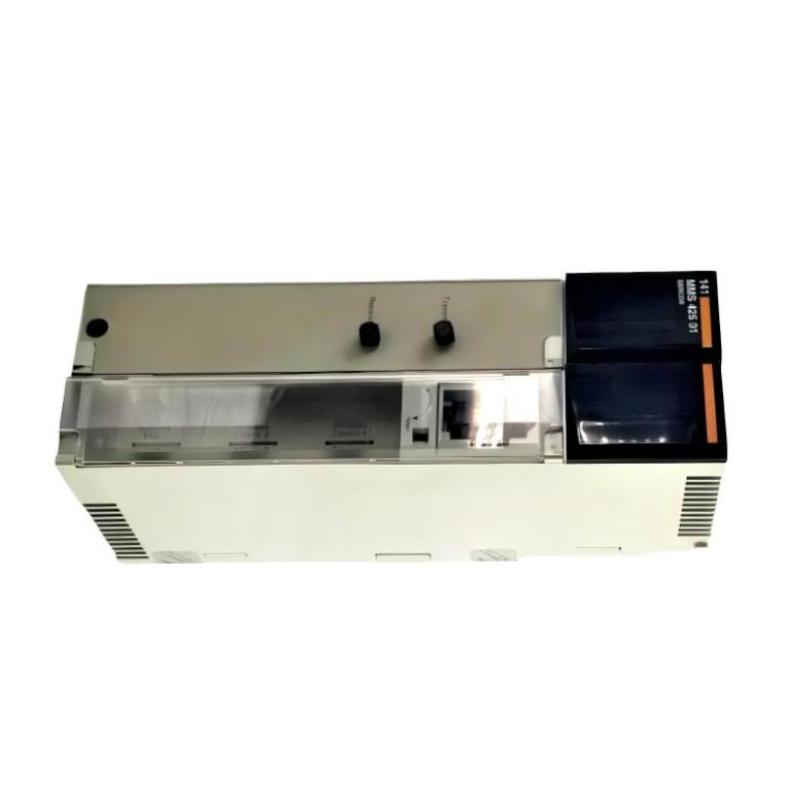

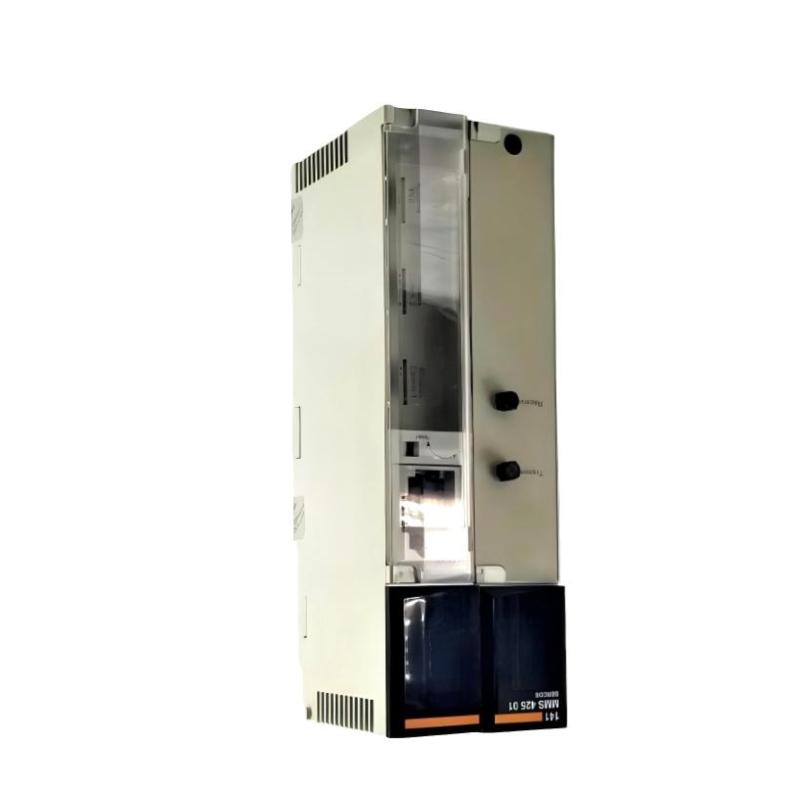

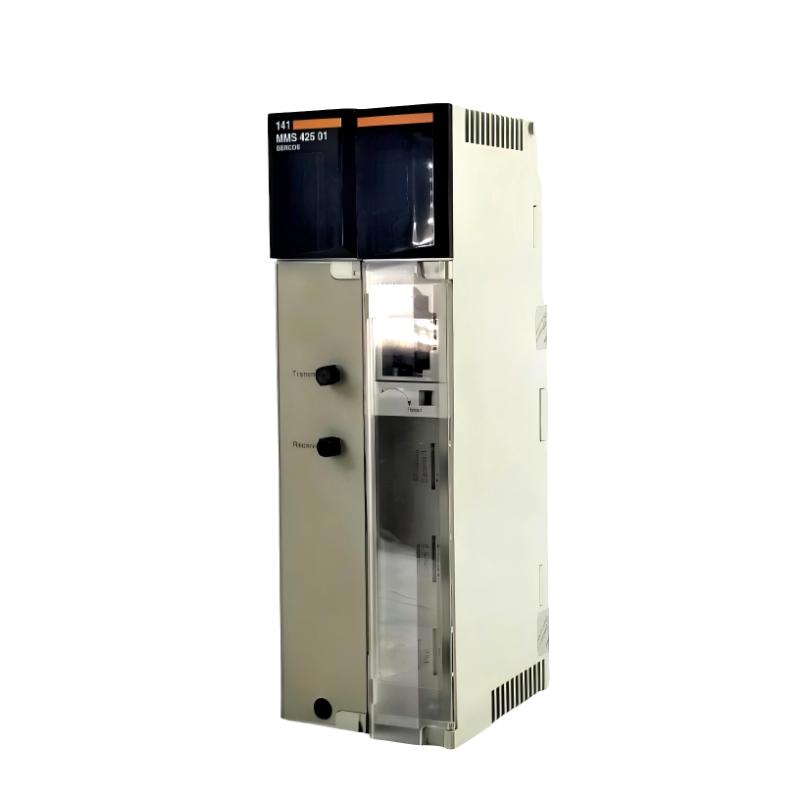

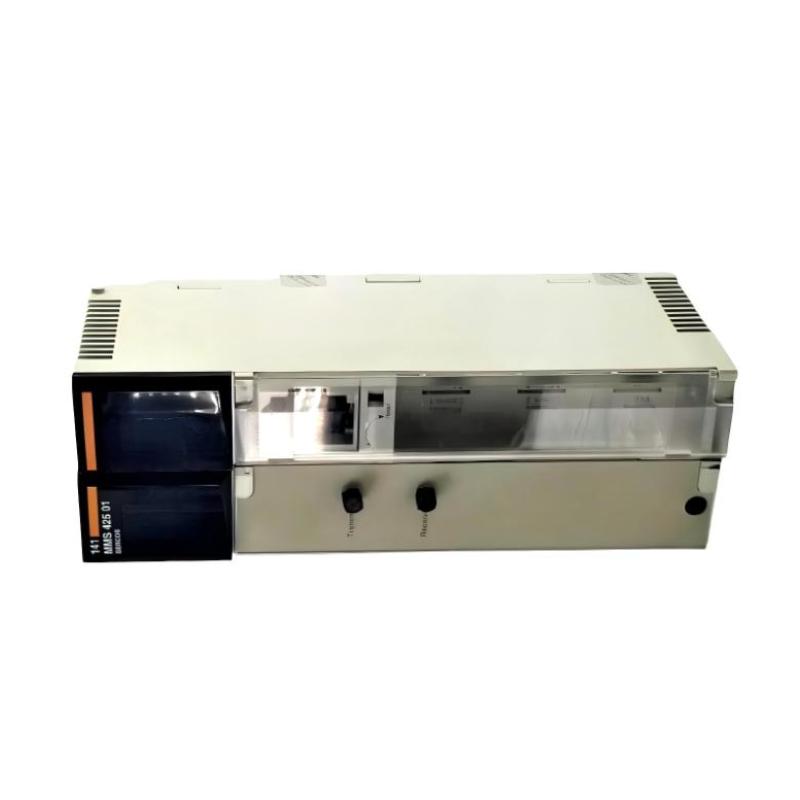

The Schneider Electric 140MMS42500 is a Modicon Quantum multi-axis motion controller module designed for high-precision synchronization of industrial motion systems. It is engineered to coordinate multiple servo-driven axes in real time, enabling complex automation tasks such as coordinated positioning, high-speed packaging, robotics, and material handling.
As part of the Quantum motion control architecture, this module integrates directly into the PLC backplane and provides deterministic motion execution with strong communication capabilities (including SERCOS-based motion networks). It is widely deployed in legacy high-performance automation systems where accuracy, synchronization, and reliability are critical.
The 140MMS42500 is particularly valued in advanced machinery environments where multiple axes must operate in perfect coordination without delay or drift.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140MMS42500 |
| Product Type | Multi-Axis Motion Controller Module |
| Series | Modicon Quantum |
| Motion System | SERCOS-based motion control |
| Supported Axes | Up to 4 axes (typical configuration) |
| Function | Coordinated multi-axis servo control |
| Communication | SERCOS / Quantum backplane integration |
| Programming Support | IEC 61131-3 environments |
| Application Type | Synchronization, positioning, motion sequencing |
| Bus Power Requirement | ~2500 mA |
| Control Mode | Real-time deterministic motion control |
| Diagnostics | System status and motion fault monitoring |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Humidity | 5%–95% non-condensing |
| Weight | ~0.5 – 1.0 kg (typical industrial listing) |
| Dimensions | Approx. 250 × 100 × 50 mm |
This module is designed for high-speed synchronized motion control using SERCOS communication, ensuring precise coordination between PLC logic and servo drives.
