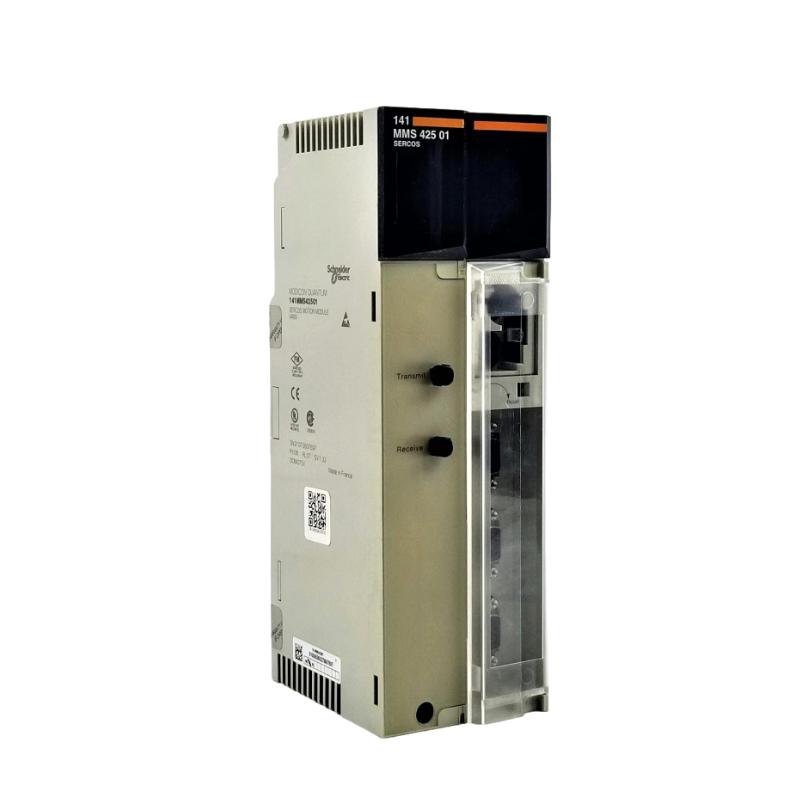

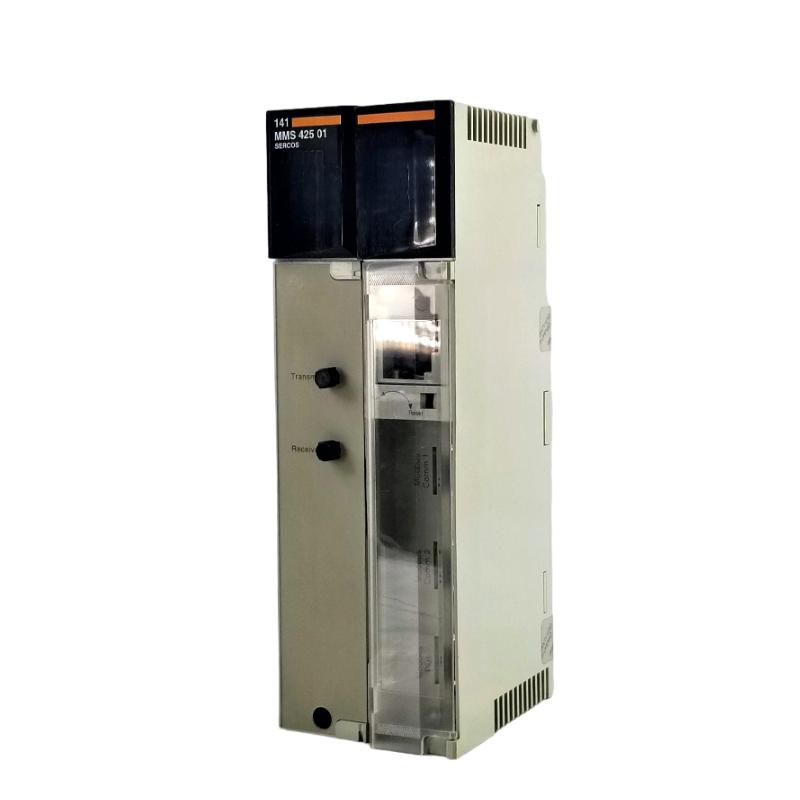

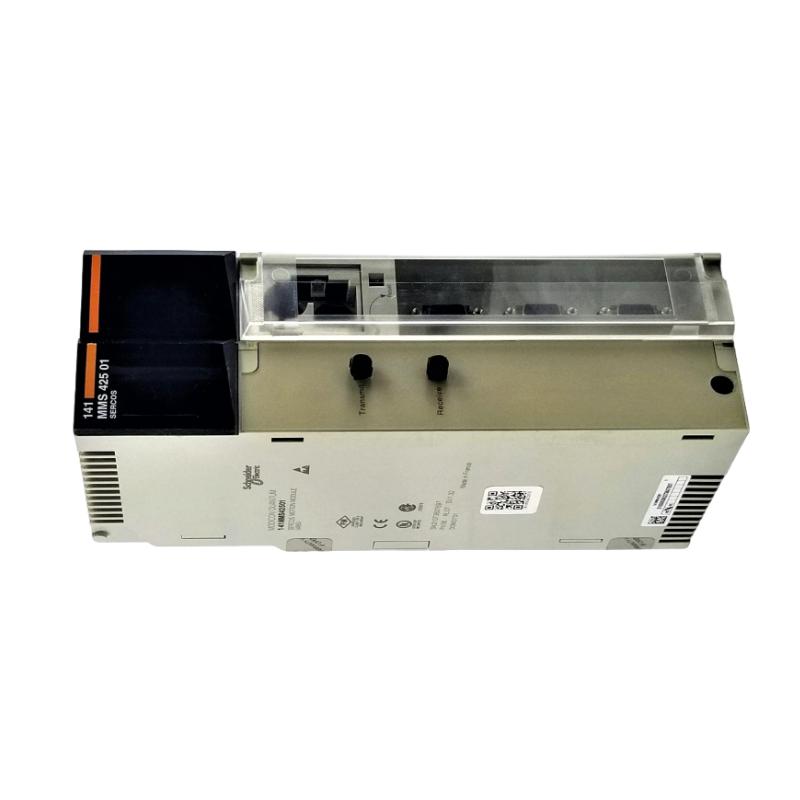

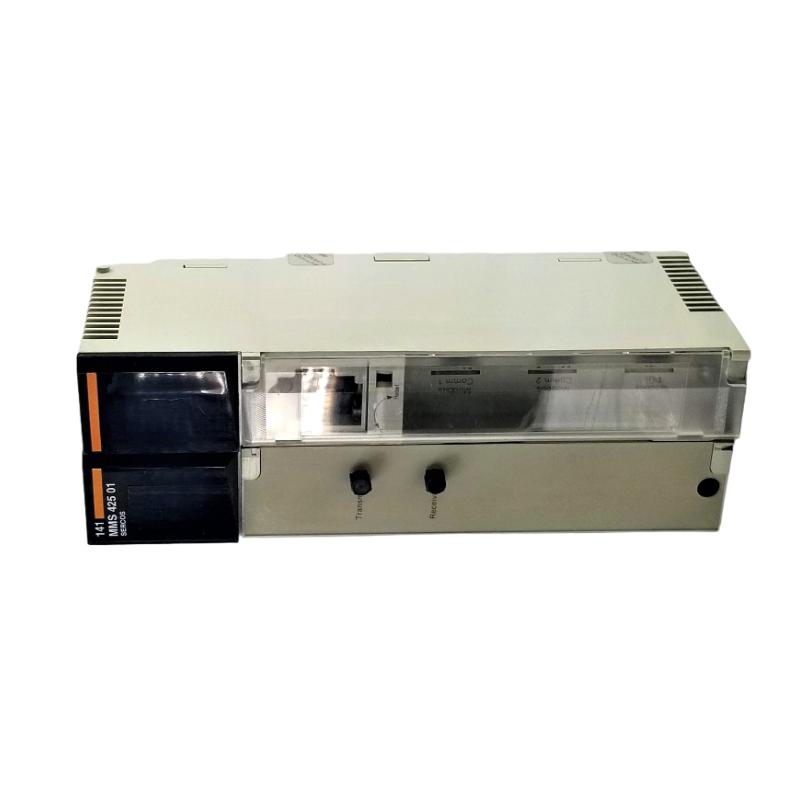

The Schneider Electric 140MMS42501 is a Modicon Quantum multi-axis motion controller module designed for high-performance industrial automation systems requiring precise coordination of multiple servo axes. It is built to manage synchronized motion tasks in applications such as robotics, packaging machinery, material handling systems, and CNC-related automation.
As part of Schneider’s Quantum motion control architecture, this module delivers deterministic real-time performance, enabling smooth and accurate coordination between PLC logic and servo drives. It is widely used in legacy automation systems where precision motion control and multi-axis synchronization are critical to production stability.
The 140MMS42501 is commonly recognized as a 4-axis motion controller, offering reliable performance in complex machine control environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140MMS42501 |
| Product Type | Multi-Axis Motion Controller Module |
| Series | Modicon Quantum |
| Supported Axes | Up to 4 axes |
| Function | Coordinated servo motion control |
| Motion Types | Point-to-point, continuous path, synchronized motion |
| Communication | CANopen / system-dependent industrial protocols |
| Programming Support | IEC 61131-3 environments |
| Control Mode | Real-time deterministic motion execution |
| Application Type | Positioning, trajectory control, machine synchronization |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Protection Rating | IP20 |
| Power Supply | 24 V DC (system dependent) |
| Installation | Quantum rack-mounted backplane module |
| Weight | ~7.9 kg |
| Dimensions | Approx. 250 × 100 × 50 mm |
This module is designed for stable multi-axis synchronization with industrial-grade motion control precision, making it suitable for continuous manufacturing environments.
