Introduction

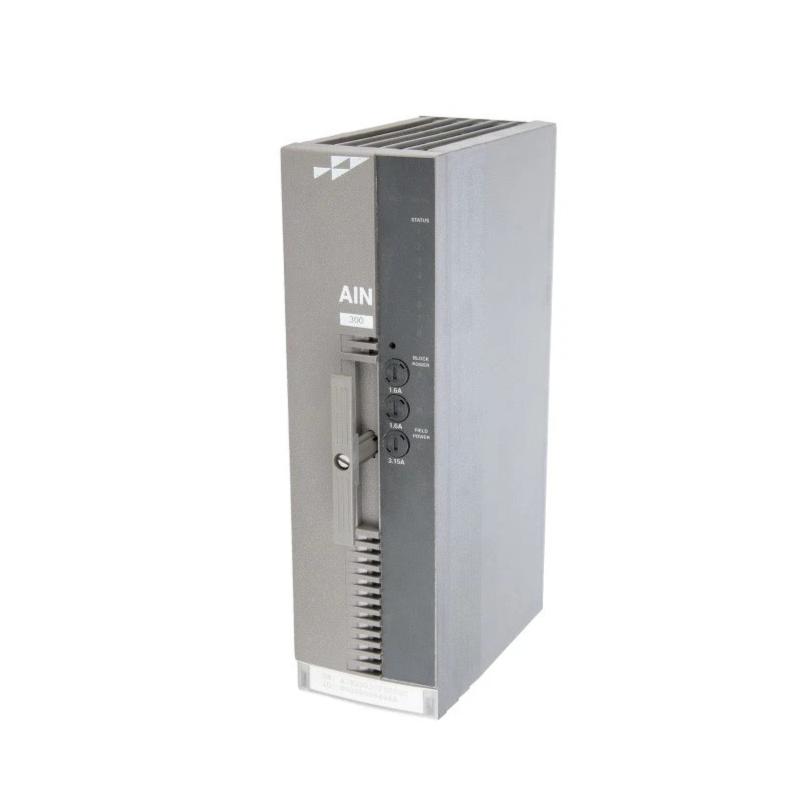

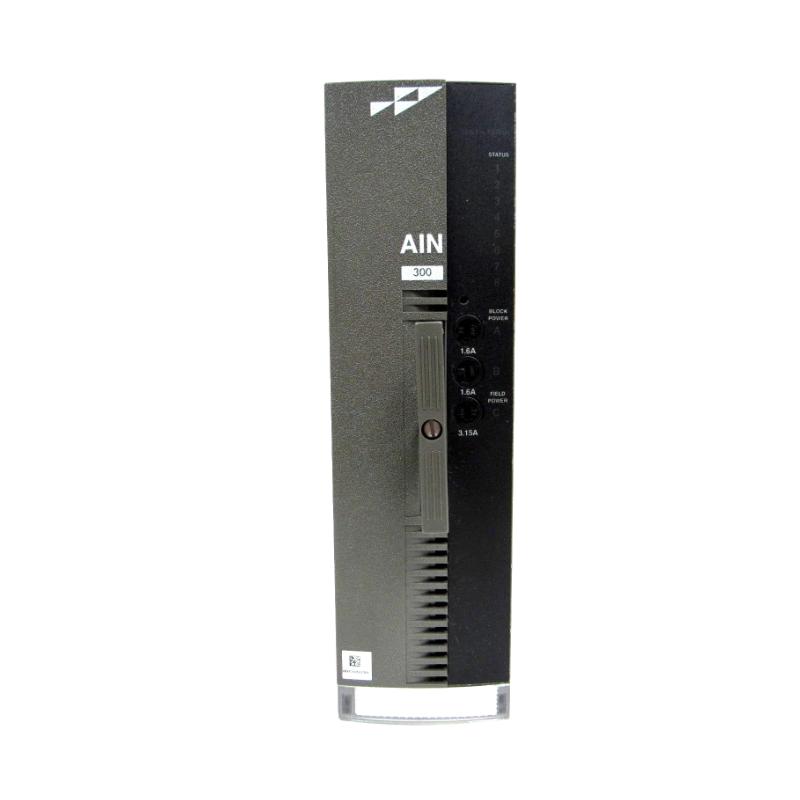

The ABB Bailey AIN300 P-HB-AIN-30010 000 Analog Input Module is engineered to provide precise analog signal acquisition in industrial process control applications. As an advanced version of the AIN200, it ensures higher reliability, accuracy, and seamless integration with ABB Bailey Networked Control Systems. Its rugged design supports redundant configurations, fault-tolerant architectures, and continuous operation in demanding industrial environments, making it ideal for mission-critical process monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Analog Input Module |
| Model Number | P-HB-AIN-30010 000 |
| Function | Acquisition and conversion of analog signals |
| Compatible Systems | ABB Bailey Networked Control Systems |
| Signal Types | Voltage and current analog inputs |
| Diagnostics | Status LEDs and system feedback |
| Mounting | ABB Bailey standard rack or frame |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –40°C to +70°C |
| Dimensions (H × W × D) | 266 × 76 × 162 mm |
| Weight | 1.7 kg |
| Compliance | Meets ABB industrial standards for analog modules |
Recommended Related Models
| Model | Description |
|---|---|
| AIN200 Analog Input Module | Reliable analog signal acquisition module |
| AOUT200 Analog Output Module | Provides analog output for process control loops |
| DIO100 Digital I/O Module | Digital input/output signal management |
| PSU200 Power Supply Module | Stable power for analog and digital modules |
| CPU200 Control Processor Module | Central processing for ABB Bailey systems |
| HMI100 Interface Module | Human-machine interface for real-time monitoring |
| COMM200 Communication Module | Network and field communication interface |
| RACK100 Module Rack | Housing for analog and digital modules |
| TBK100 Terminal Block Kit | Organized wiring connections for field sensors |
| AUX100 Expansion Module | Additional analog input/output functionality |
