Bently Nevada 3500/04 138257-01 Earthing Module Front Panel
Bently Nevada 3500/04 138257-01 Earthing Module Front Panel
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/04 Product Origin:USA Product Dimensions:241 x 24.4 x 103.1 mm Product Weight:0.201 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

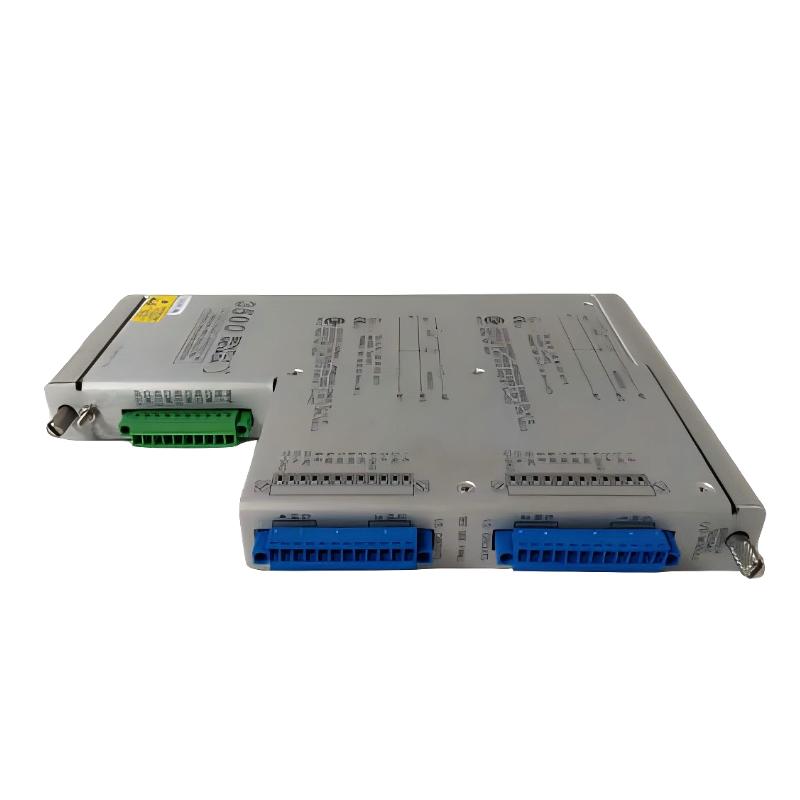

The Bently Nevada 3500/04 138257-01 Earthing Module Front Panel ensures secure grounding and optimal signal integrity in 3500 Series monitoring racks. By providing a dedicated earthing interface, it protects sensitive modules, reduces electrical noise, and supports accurate vibration and proximity monitoring in industrial machinery applications.
Technical Specifications
Item
Description
Product Type
Earthing Module Front Panel
Supported Systems
Bently Nevada 3500 Series Monitoring Racks
Primary Function
Rack grounding and signal earthing
Electrical Protection
Reduces interference and ensures accurate signal transmission
Environmental Resistance
Industrial-grade, vibration and temperature tolerant
Dimensions (H × W × D)
241 × 24.4 × 103.1 mm
Weight
0.201 kg
Deployment
Front-panel integration for rack earthing support
System Integration
Works with 3500/04 I/O and internal barrier modules
Maintenance
Visual inspection for secure installation recommended
Channel Support
Provides multiple grounding points for sensitive circuits
Recommended Related Models
Model
Module Type
Primary Function
Bently Nevada 3500/04 136719-01
Earthing I/O Module
Rack grounding and signal integrity
Bently Nevada 3500/04 136719-01+138527-01
Internal Barriers Module
Signal isolation and grounding
Bently Nevada 3500/04-136720
Auxiliary I/O Module
Signal interface extension
Bently Nevada 3500/22
Vibration Monitor Module
Channel monitoring
Bently Nevada 3500/23
Proximitor Module
Shaft displacement measurement
Bently Nevada 3500/42
Transient & Overspeed Module
High-speed signal detection
Bently Nevada 3500/05
Relay Output Module
Alarm and actuation output
Bently Nevada 3500/08
Backup Module
Redundant monitoring support
Bently Nevada 3500/75
Remote Display Module
Rack status visualization
Bently Nevada 3300 XL Sensor
Vibration Sensor
Rotating machinery monitoring
Popular Related Models
Model
Module Type
Typical Application
Bently Nevada 3500/04 138257-01
Earthing Module Front Panel
Rack grounding and signal integrity
Bently Nevada 3500/04 136719-01
Earthing I/O Module
Rack earthing and I/O support
Bently Nevada 3500/04 136719-01+138527-01
Internal Barriers Module
Signal isolation and grounding
Bently Nevada 3500/22
Monitor Module
Channel vibration monitoring
Bently Nevada 3500/23
Proximitor Module
Shaft displacement measurement
Bently Nevada 3500/42
Transient & Overspeed Module
High-speed signal detection
Bently Nevada 3500/75
Remote Display Module
Rack status visualization
Bently Nevada 3500/05
Relay Output Module
Alarm output
Bently Nevada 3500/08
Backup Module
Redundant monitoring support
Bently Nevada 3300 XL Sensor
Vibration Sensor
Rotating machinery monitoring
Applications
The Bently Nevada 3500/04 138257-01 Earthing Module Front Panel is designed to provide dedicated grounding and signal integrity support within 3500 Series monitoring system racks. It is commonly used in industrial machinery monitoring, including turbines, compressors, and generators, where reliable earthing is critical to ensure accurate vibration and proximity measurements. This module front panel integrates seamlessly into the rack, supporting robust and safe monitoring operations.
Advantages
This module front panel ensures stable and secure grounding for sensitive monitoring circuits, reducing electrical noise and interference. Its design enhances measurement accuracy and provides protection against potential grounding faults. Compact and durable, it fits standard 3500 Series racks and supports reliable operation in industrial environments, helping engineers maintain system performance and protect critical monitoring modules.
FAQs
1. What is the function of the 3500/04 138257-01 module?
It provides a dedicated front-panel grounding interface to ensure proper earthing of sensitive rack circuits.
2. Is this module compatible with all 3500 Series racks?
Yes, it is designed to fit standard 3500 Series monitoring racks.
3. Does it help reduce electrical interference?
Yes, it stabilizes grounding and minimizes electrical noise for accurate signal transmission.
4. Is configuration required to use this module?
No, it functions as a passive earthing interface and does not require configuration.
5. Can it improve measurement accuracy?
Yes, by providing stable grounding, it enhances the precision of vibration and proximity readings.
6. Is it durable for industrial environments?
Yes, it is built to withstand vibration, temperature variations, and mechanical stress.
7. Does it work with other 3500/04 modules?
Yes, it complements other earthing and I/O modules to maintain signal integrity.
8. How should it be installed?
It is designed for front-panel integration into the 3500 Series rack slots without additional hardware.
9. Is maintenance required for this module?
Regular visual inspection for physical damage and secure mounting is recommended; no active maintenance is needed.
10. Can it prevent ground loops or faults?
Yes, it helps maintain proper grounding and mitigates the risk of ground loops within the rack.
