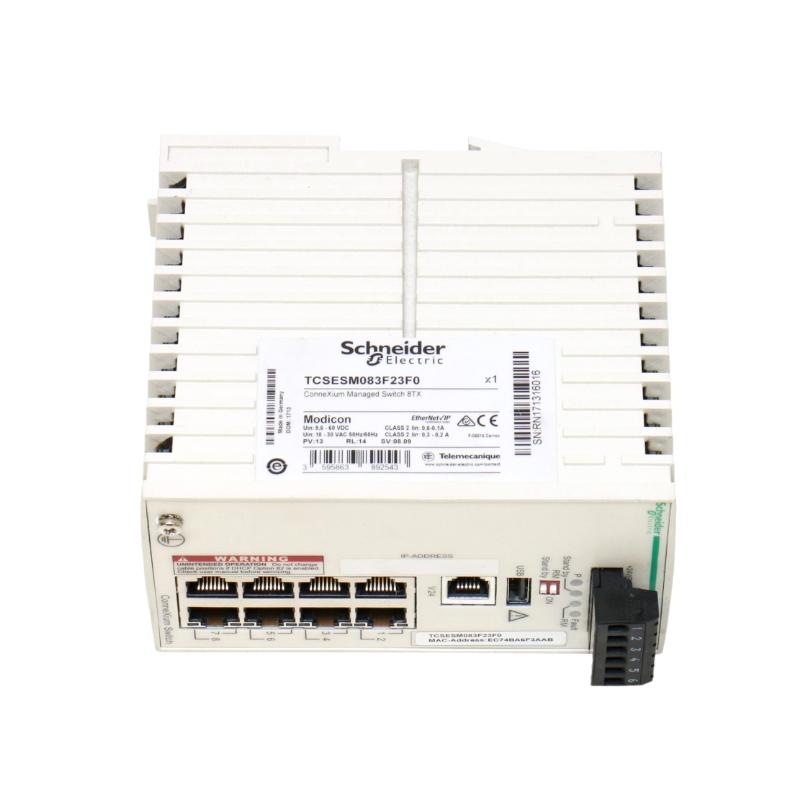

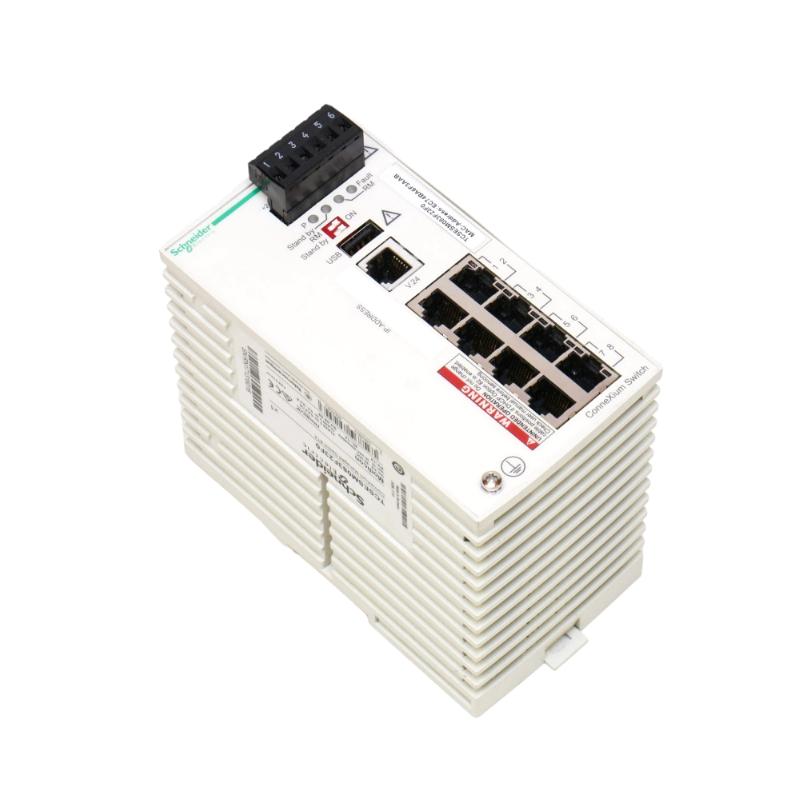

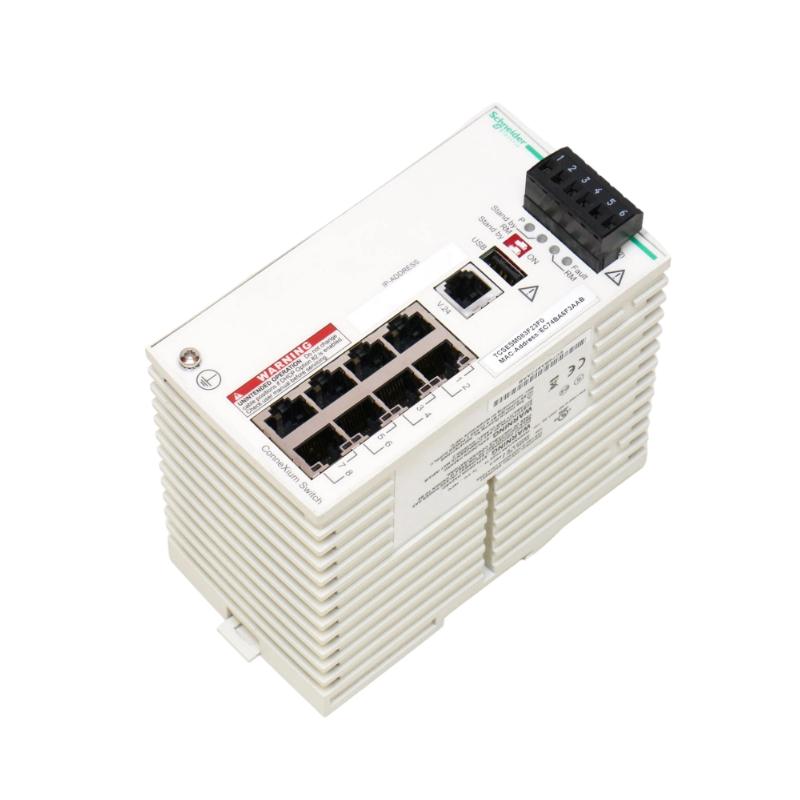

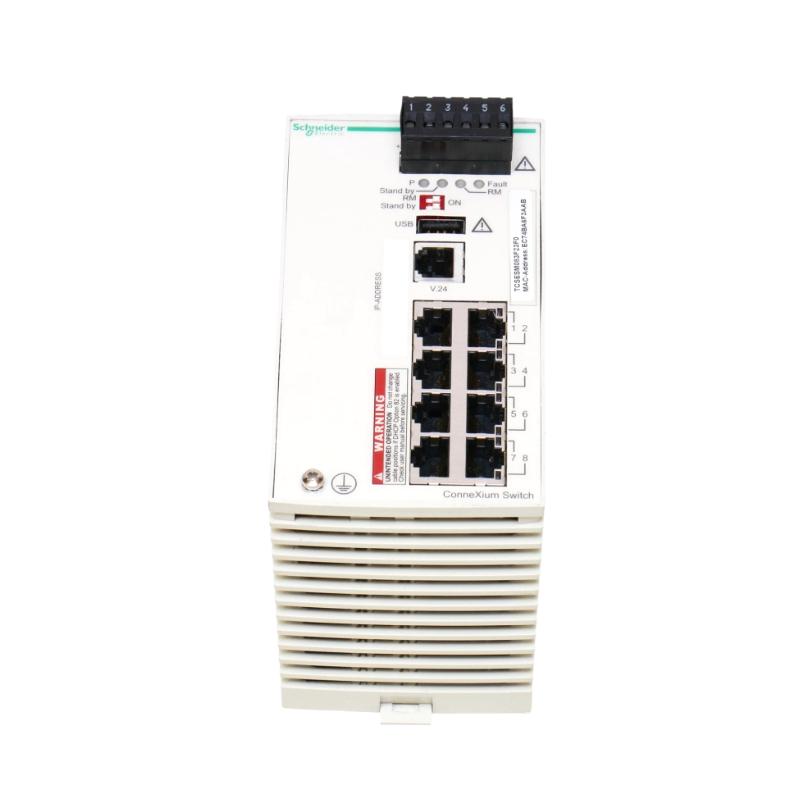

The Schneider Electric TCSESM083F23F0 is a managed industrial Ethernet switch from the ConneXium series, designed for reliable communication in automation networks. It connects PLC systems, SCADA platforms, remote I/O, and industrial controllers, ensuring stable data transmission across factory and process environments.
Engineered for industrial-grade performance, this switch focuses on network redundancy, deterministic communication, and traffic prioritization, making it suitable for mission-critical applications where downtime is not acceptable.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TCSESM083F23F0 |
| Product Type | Managed Ethernet Switch |
| Series | ConneXium |
| Ports | 8 × RJ45 (10/100BASE-TX) |
| Protocols | Modbus TCP, Ethernet/IP, SNMP |
| Switching Mode | Store-and-forward |
| Redundancy | RSTP, HiPER Ring |
| Management | Web interface, SNMP, CLI |
| VLAN | Supported |
| QoS | Supported |
| IGMP Snooping | Supported |
| Alarm Output | 1 × relay contact |
| Power Supply | 24 V DC (9.6–60 V DC) |
| Power Consumption | ~5.3 W |
| Mounting | DIN rail (35 mm) |
| Protection | IP20 |
| Operating Temperature | 0°C to 60°C |
Physical Dimensions
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 138 × 41 × 125 mm |
| Weight | ~0.4 – 1.5 kg (variant dependent) |
The compact 138 × 41 × 125 mm footprint allows easy installation in dense industrial control cabinets while maintaining full managed-switch functionality.
Recommended Related Models
- Schneider TCSESB083F23F0 – Basic managed switch
- Schneider TCSESM083F2CU0 – Fiber/copper hybrid switch
- Schneider 140NOC78100C – Quantum Ethernet module
- Schneider 140NOE25110C – Fiber communication module
- Schneider 140CRP93100 – Remote I/O processor
