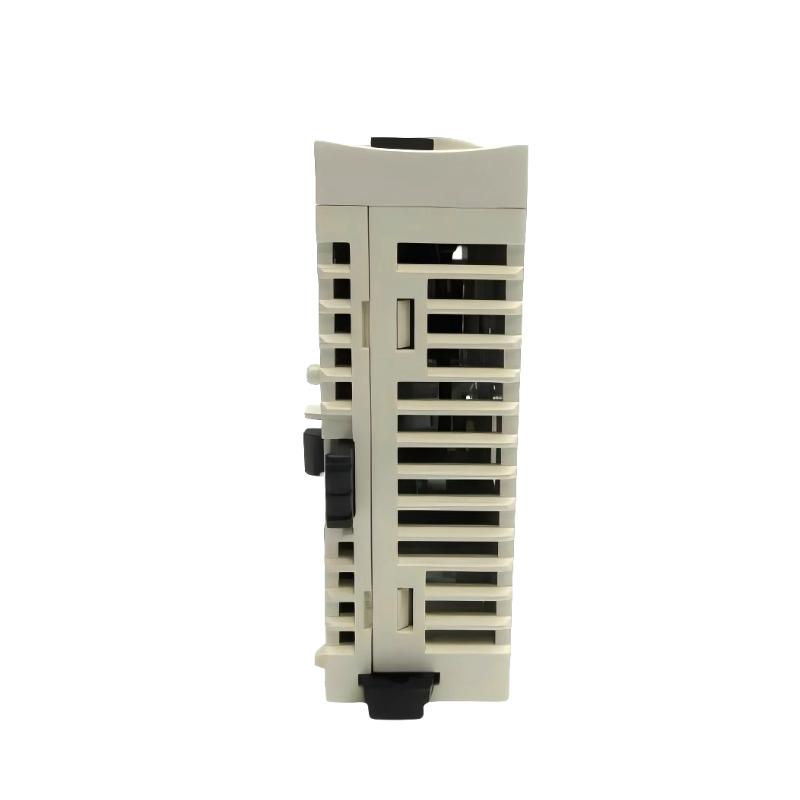

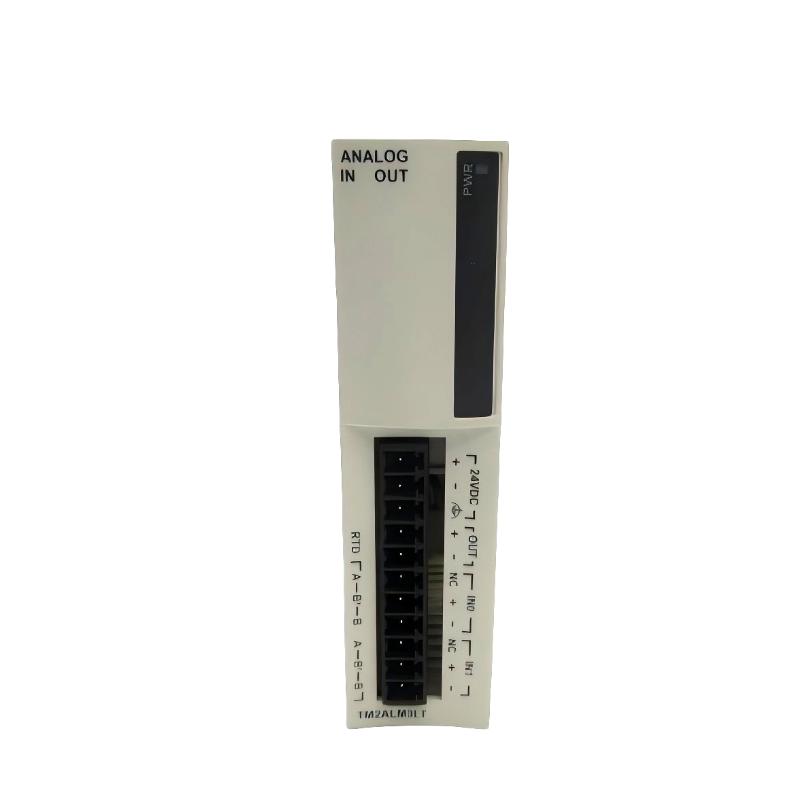

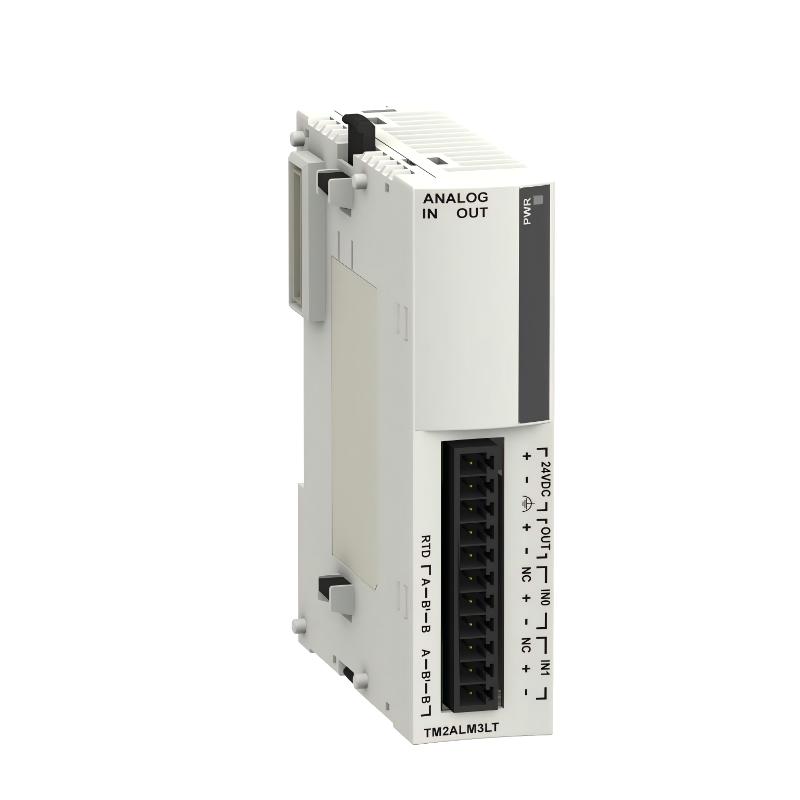

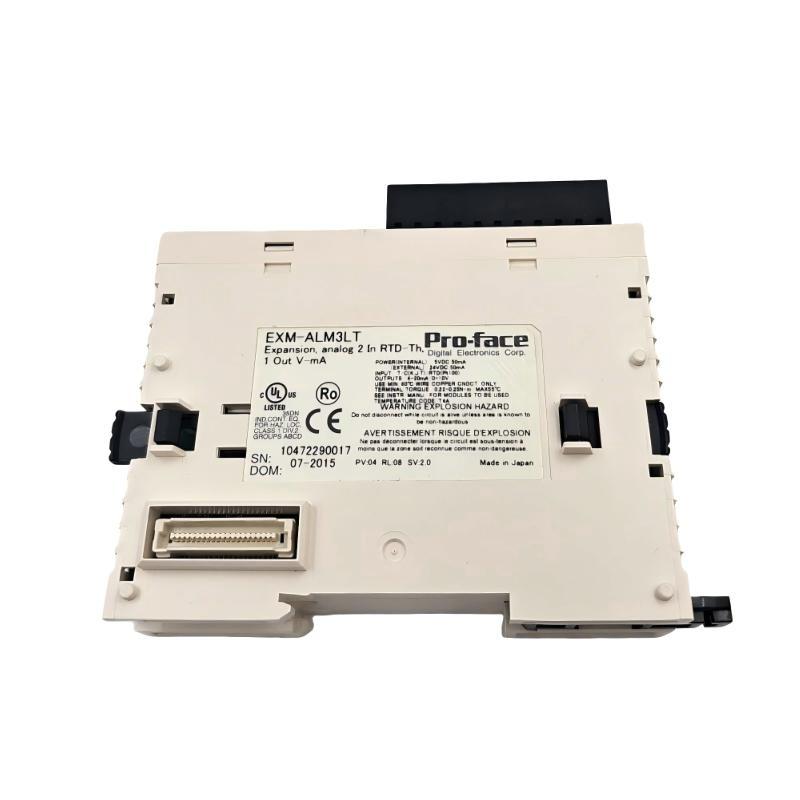

The Schneider Electric TM2ALM3LT is a Modicon TM series analog input/output expansion module designed for compact PLC systems requiring mixed signal processing. It is used in industrial automation applications where both analog measurement and control signals are needed in a single module.
This module is part of the Modicon M238 / TM platform, and is commonly used in small to mid-scale machines such as HVAC systems, packaging equipment, and process control units. It supports temperature measurement (thermocouple and RTD) as well as analog voltage/current signals, making it a flexible solution for multi-sensor environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM2ALM3LT |
| Product Type | Analog Input / Output Module |
| Series | Modicon TM / M238 |
| Analog Inputs | 2 channels |
| Analog Outputs | 1 channel |
| Input Signal Types | Thermocouple (J, K, T), Pt100 RTD |
| Output Signal Types | 0–10 V DC / 4–20 mA |
| Resolution | 12-bit |
| Power Supply | 24 V DC (19.2–30 V DC) |
| Signal Isolation | Optical isolation (channel to logic) |
| Load Type | Resistive load |
| Cable Type | Shielded twisted pair required |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection | Internal electrical protection & diagnostics |
| Weight | ~0.085 kg |
Physical Dimensions (L × W × H)
| Dimension | Value |
|---|---|
| Size | 90 × 23.5 × 70 mm |
The ultra-compact 90 × 23.5 × 70 mm design makes it ideal for small PLC cabinets where space optimization is critical while still maintaining multi-signal capability.
