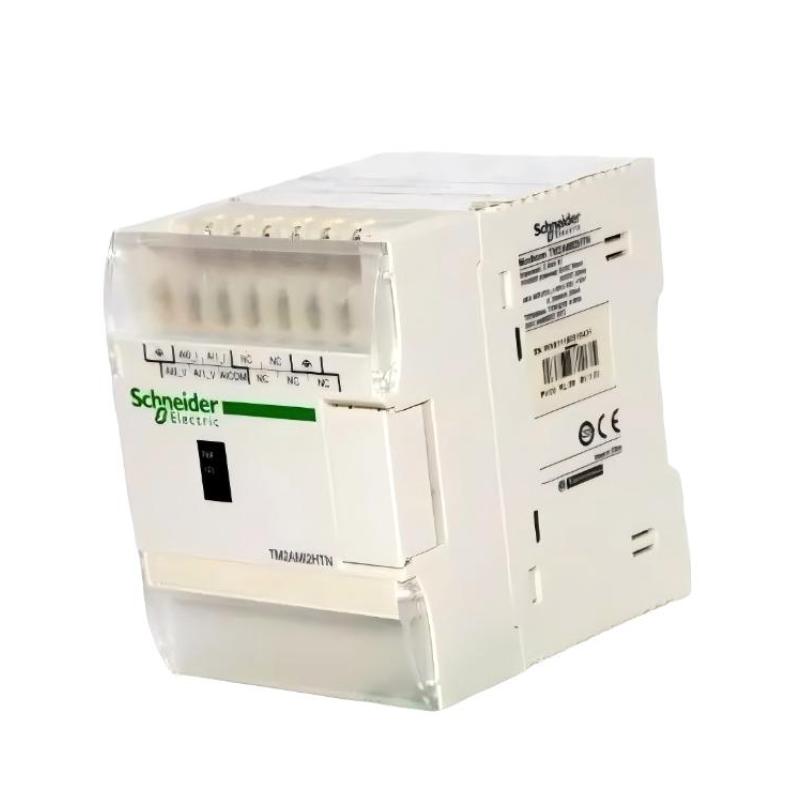

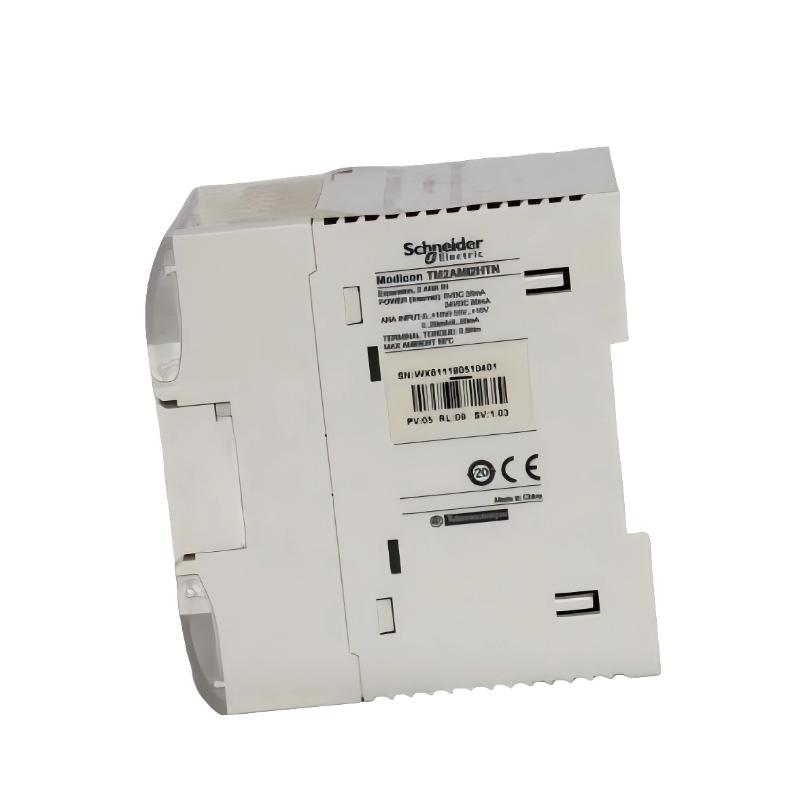

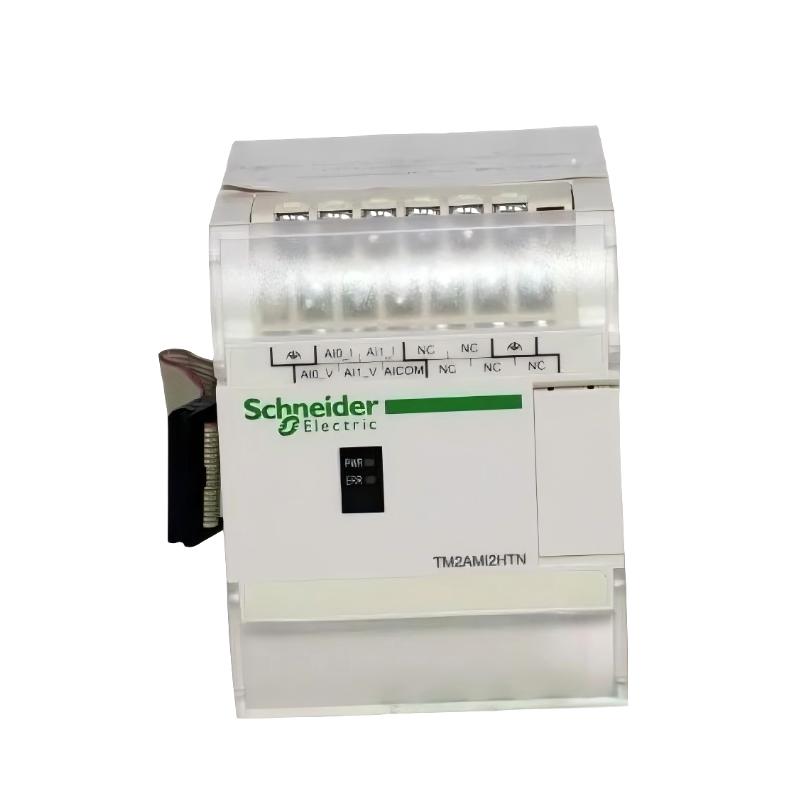

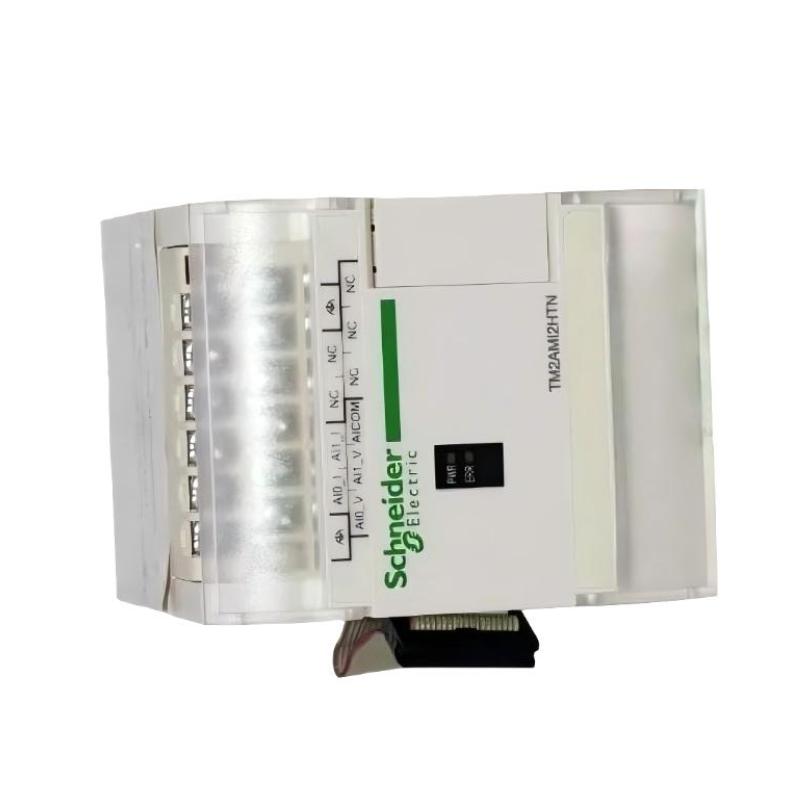

The Schneider Electric TM2AMI2HTN is a Modicon TM series analog input expansion module designed for compact PLC systems requiring reliable acquisition of analog and temperature signals. It is widely used in OEM machines and small automation systems where accurate measurement of process variables such as temperature, voltage, and current is required.
This module is part of the Modicon M238 / TM expansion ecosystem, and is especially designed for simplified wiring, stable signal conversion, and cost-effective integration in machine-level control applications.
Compared with standard TM2 analog modules, the “HTN” variant is optimized for direct integration without additional adapter modules, making installation faster and more compact in control cabinets.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM2AMI2HTN |
| Product Type | Analog Input Expansion Module |
| Series | Modicon TM / M238 |
| Number of Inputs | 2 analog input channels |
| Input Signal Types | 0–10 V DC / 0–20 mA / 4–20 mA |
| Input Type | Single-ended |
| Resolution | 12-bit |
| Power Supply | 24 V DC (20.4–28.8 V DC range) |
| Internal Consumption | Powered via backplane ribbon cable |
| Isolation | 2000 V insulation between terminals and mounting rail |
| Connection Type | Removable screw terminal block |
| Diagnostics | LED status indicators (PWR / ERR) |
| Sampling Time | ~10 ms + scan cycle time |
| Mounting | DIN rail (via TM system base) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | ~0.43 kg |
Physical Dimensions (L × W × H)
| Dimension | Value |
|---|---|
| Size | 90 × 23.5 × 70 mm |
The compact 90 × 23.5 × 70 mm structure allows easy installation in space-limited OEM control panels while maintaining stable industrial signal performance.
