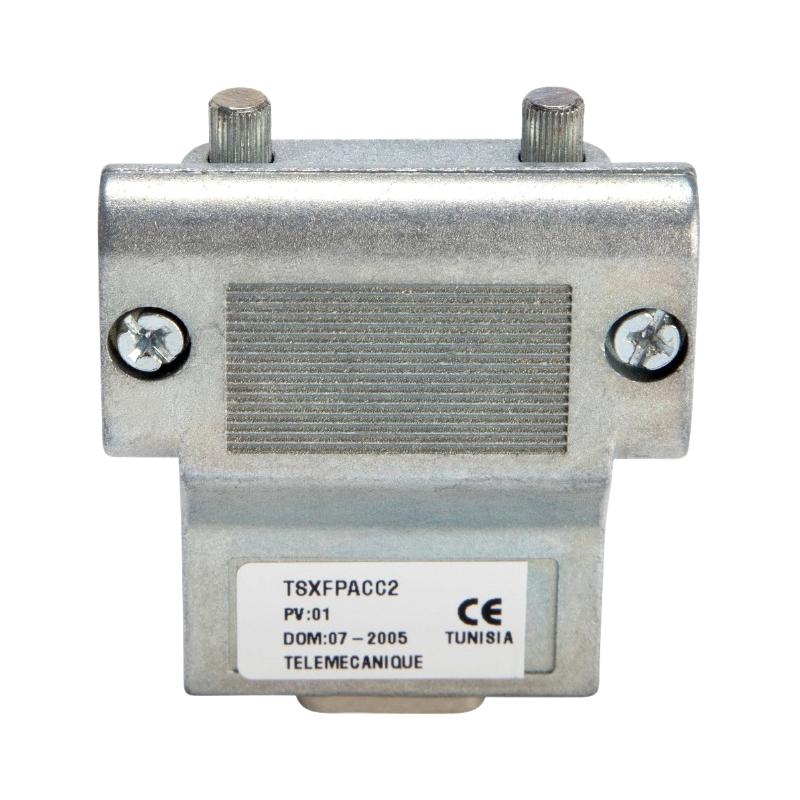

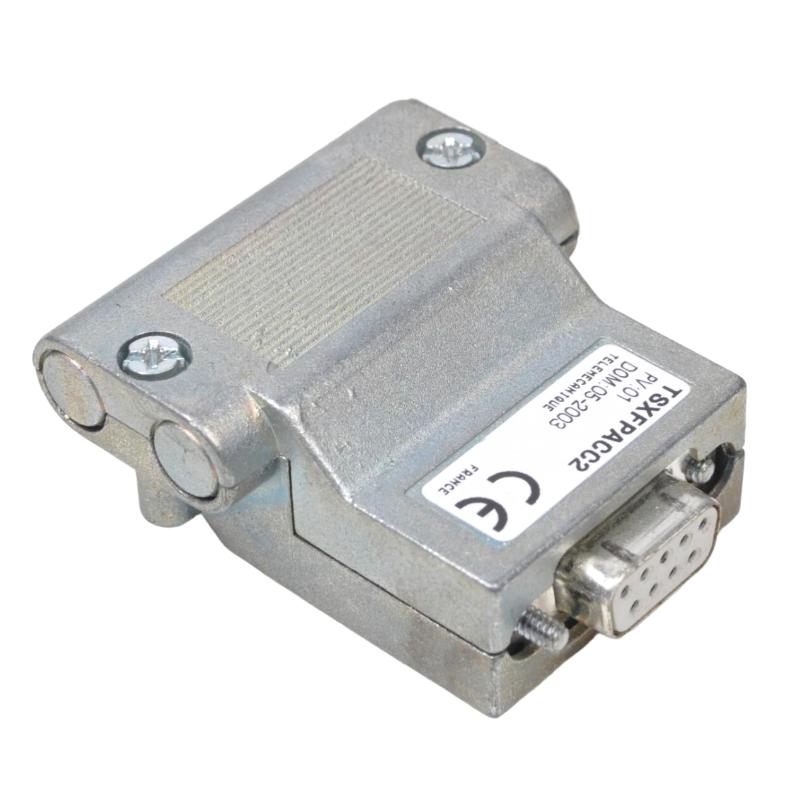

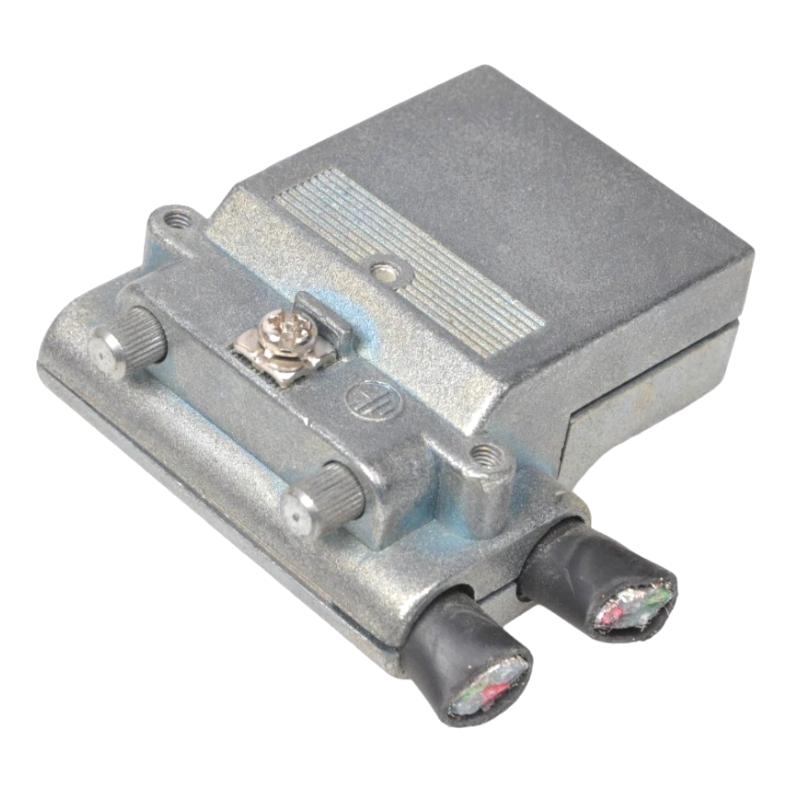

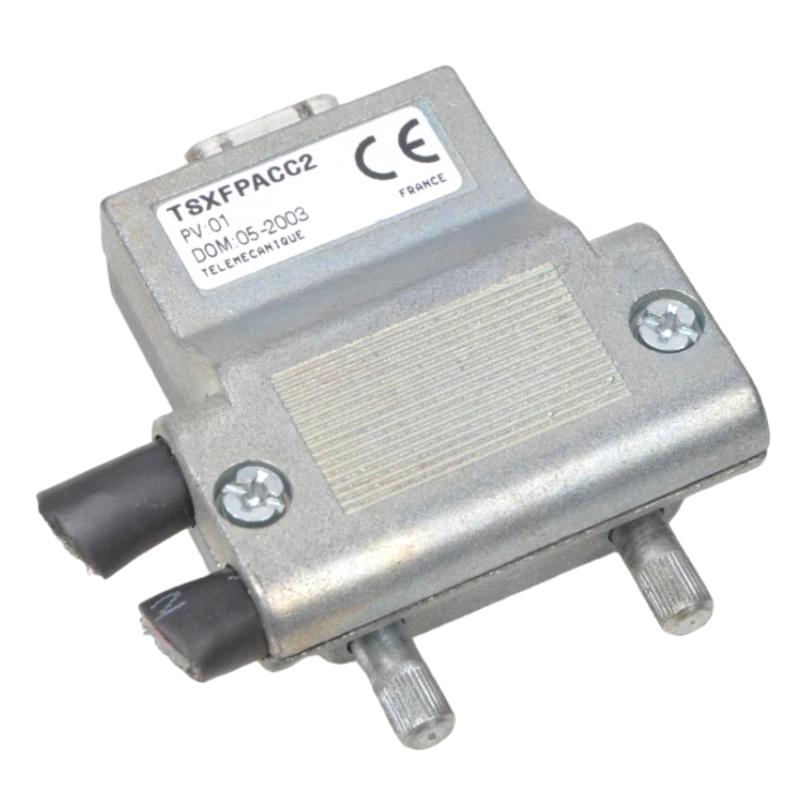

The Schneider Electric TSXFPACC2 is a FIP / FIPIO 9-way SUB-D female connector accessory designed for industrial automation communication systems. It is used primarily within Modicon Premium and TSX Series architectures to support reliable signal connection and daisy-chain network configurations.
This component is not a controller or module, but a critical communication accessory, enabling stable physical connectivity between PLC systems, remote I/O networks, and field devices. It is widely used in legacy Schneider automation environments where robust and noise-resistant serial communication is required.
Built with industrial-grade materials, the TSXFPACC2 ensures stable mechanical locking and electrical continuity in harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TSXFPACC2 |
| Product Type | FIP / FIPIO Connector (Accessory) |
| Series | Modicon Premium / TSX Series |
| Connector Type | 9-way SUB-D female |
| Communication Use | FIP / FIPIO network linking |
| Function | Daisy-chain / tap link connection |
| Material | Zamak alloy (industrial-grade metal body) |
| Electrical Interface | Serial fieldbus connection support |
| Mounting Type | Cable / panel-mounted connector system |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -25°C to 70°C |
| Humidity | Up to 80% RH (non-condensing) |
| Protection Level | Industrial enclosure (IP20 typical assembly use) |
| Weight | ~0.08–0.11 kg |
Physical Dimensions (L × W × H)
| Dimension | Value |
|---|---|
| Size | 51 × 58 × 25 mm |
The compact 51 × 58 × 25 mm structure allows easy integration into FIPIO network cabling systems while maintaining strong mechanical stability for industrial environments.
