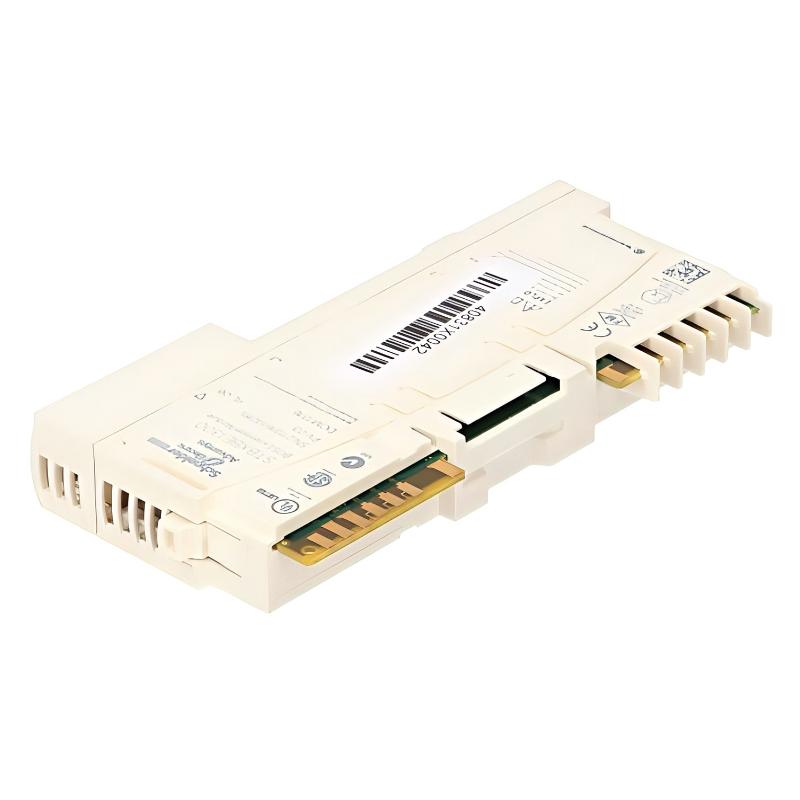

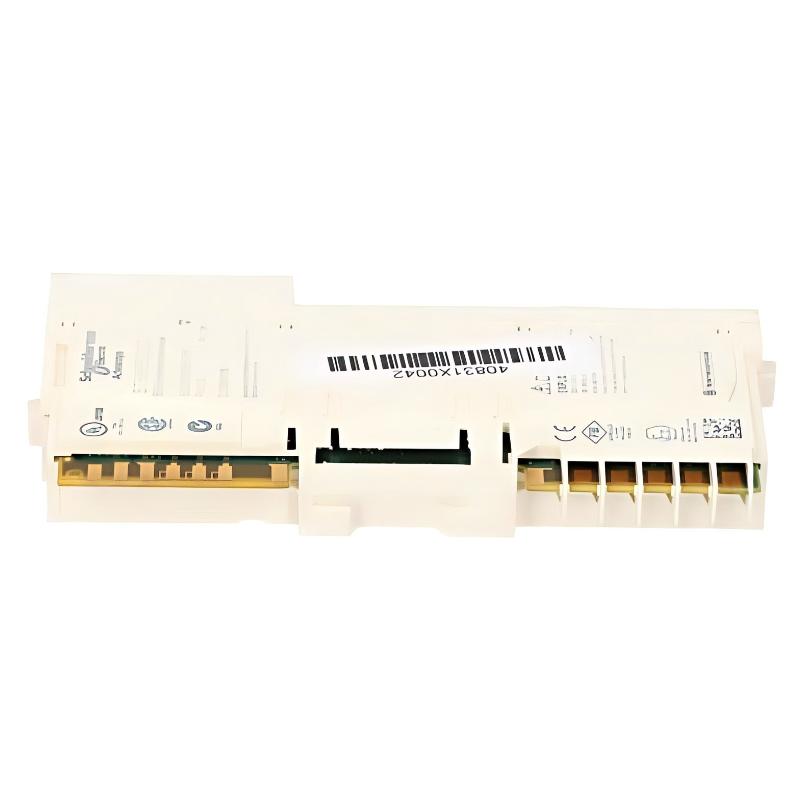

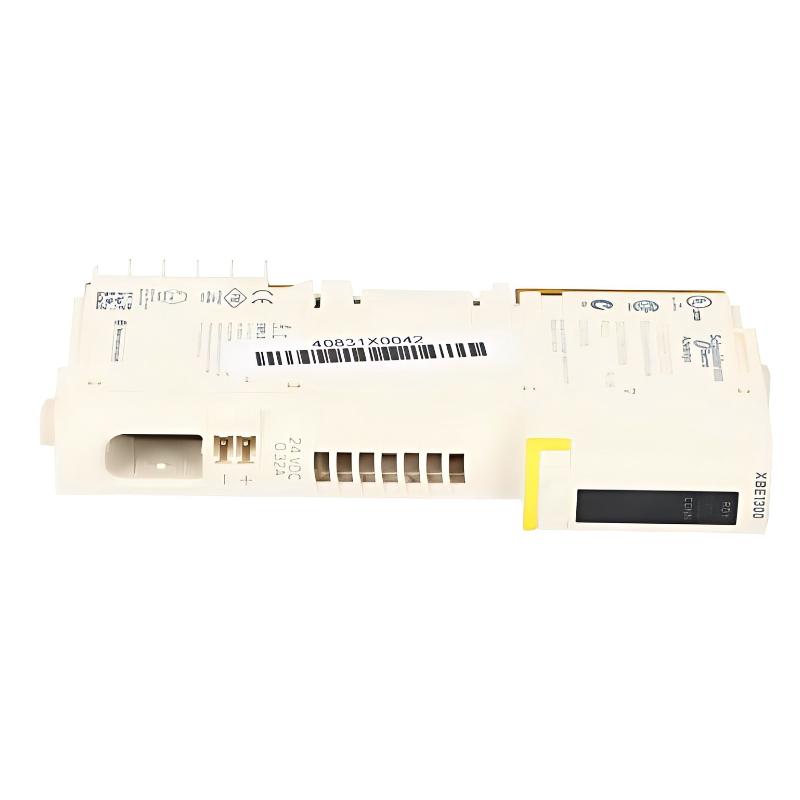

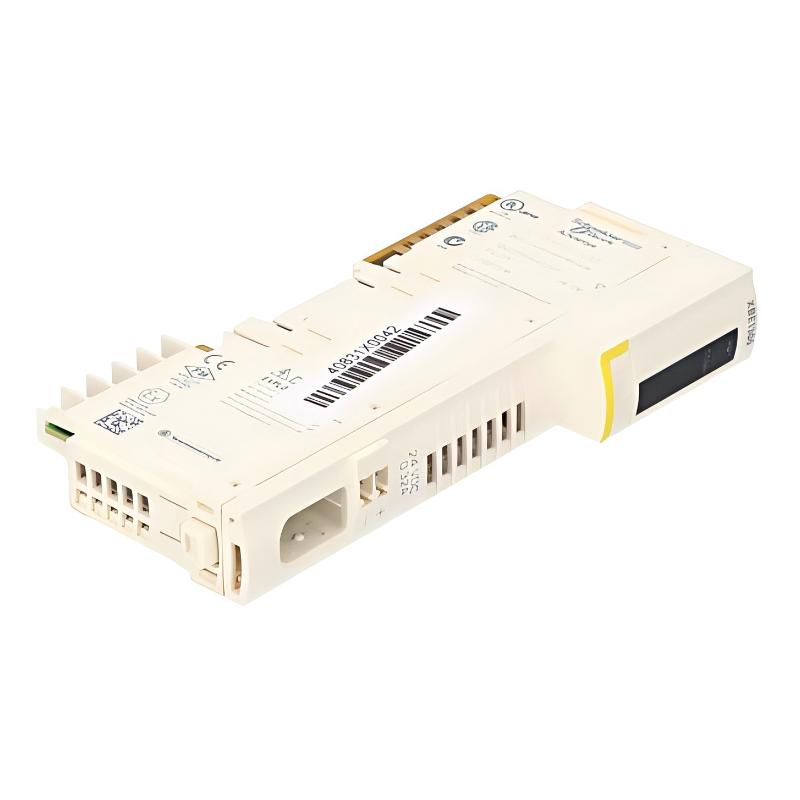

Schneider STBXBE1300 BOS Internal Bus Expansion Module
Schneider STBXBE1300 BOS Internal Bus Expansion Module
0.0
Points
Brand:Schneider PLC Item No.:STBXBE1300 Product Origin:France Product Dimensions:25 x 80 x 130 mm Product Weight:0.125 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider STBXBE1300 BOS internal bus expansion module is designed to extend the communication backbone of Advantys STB distributed I/O systems. With its compact form and reliable performance, it enables flexible system scaling while maintaining stable internal data exchange, making it an essential component for modern automation architectures.
Technical Specifications
Parameter
Details
Product Model
STBXBE1300
Product Type
Bus Expansion Module
System Compatibility
Advantys STB Distributed I/O
Function
Internal Bus Expansion
Mounting Style
Modular System Integration
Operating Environment
Industrial
Dimensions
25 × 80 × 130 mm
Weight
0.125 kg
Suggested Companion Units
Model
Product Name
STBICO1220
Digital Input Module
STBDDO3600
Digital Output Module
STBAVI1275
Analog Input Voltage Module
STBPS2210
Power Supply Module
Frequently Selected Alternatives
Model
Product Name
STBXBE1100
Bus Expansion Module
STBXBE2100
Advanced Bus Expansion Module
STBACI1400
Analog Current Input Module
STBCIP8210
Ethernet Interface Module
Applications
• Distributed I/O systems
Enables internal bus expansion for scalable modular automation setups.
• Industrial control panels
Supports seamless communication between multiple I/O modules.
• Manufacturing automation lines
Ensures reliable data exchange across extended system configurations.
• Process control systems
Maintains stable internal communication in continuous operations.
• Machine automation
Facilitates flexible system expansion for evolving machine requirements.
Key Advantages
• Flexible system expansion
Allows easy extension of internal bus architecture.
• Reliable communication performance
Ensures stable and consistent data transmission between modules.
• Compact design
Fits easily into space-constrained control panels.
• Seamless integration
Works efficiently within Schneider Advantys STB systems.
• Easy installation
Simplifies system upgrades and configuration changes.
Technical FAQs
1. What is the purpose of the STBXBE1300 module?
It is used to extend the internal bus in Advantys STB distributed I/O systems.
2. Which systems is it compatible with?
It is designed for Schneider Advantys STB modular I/O platforms.
3. Does it require external power?
No, it operates through the internal system bus.
4. Can it be used for long-distance communication?
No, it is intended for internal bus expansion within the same assembly.
5. Is configuration required during installation?
Minimal configuration is needed as part of the modular system setup.
6. How does it improve system scalability?
By enabling additional I/O modules to be connected within the same network.
7. Is it suitable for high-speed data transmission?
Yes, it supports efficient communication within system specifications.
8. Can it be hot-swapped?
No, installation should be performed with the system powered down.
9. What environments can it operate in?
It is suitable for standard industrial environments.
10. Does it affect system latency?
It is designed to maintain low-latency communication within the system.
