Brand:Schneider PLC Item No.:SXAEY800 Product Origin:France Product Dimensions:55 x 180 x 260 mm Product Weight:0.31 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

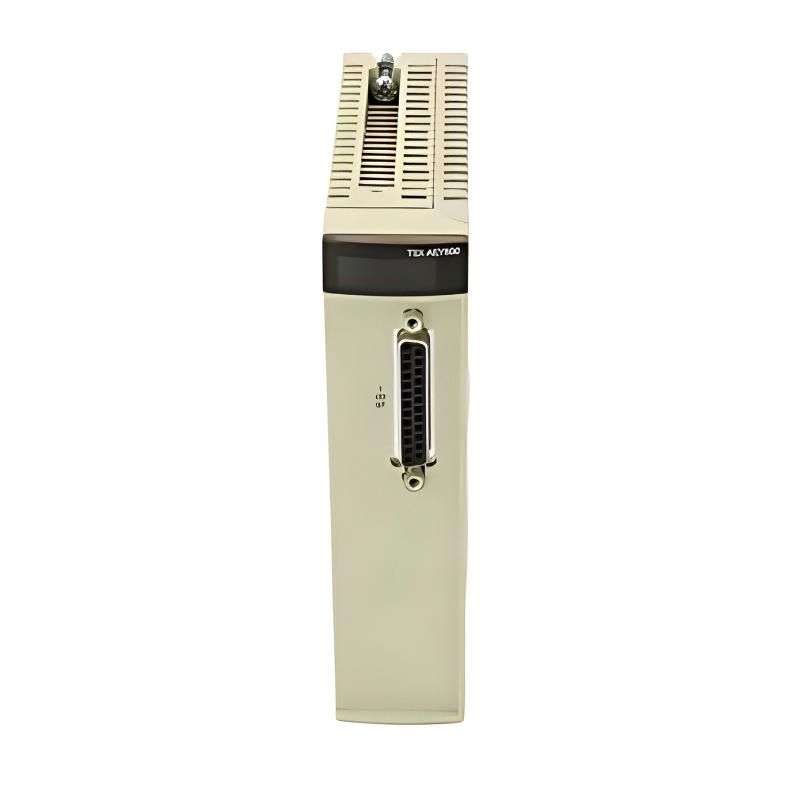

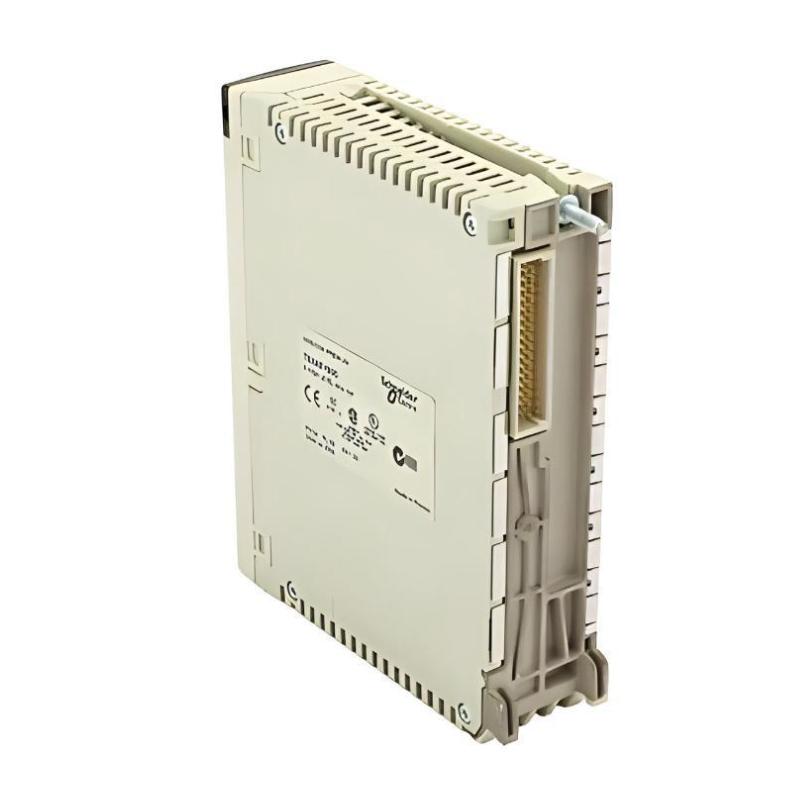

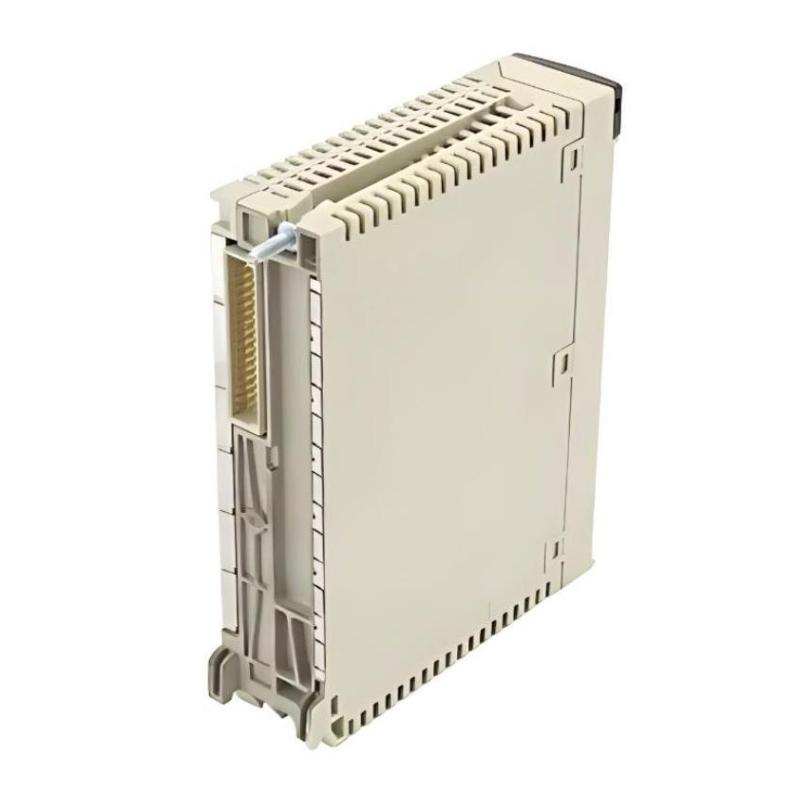

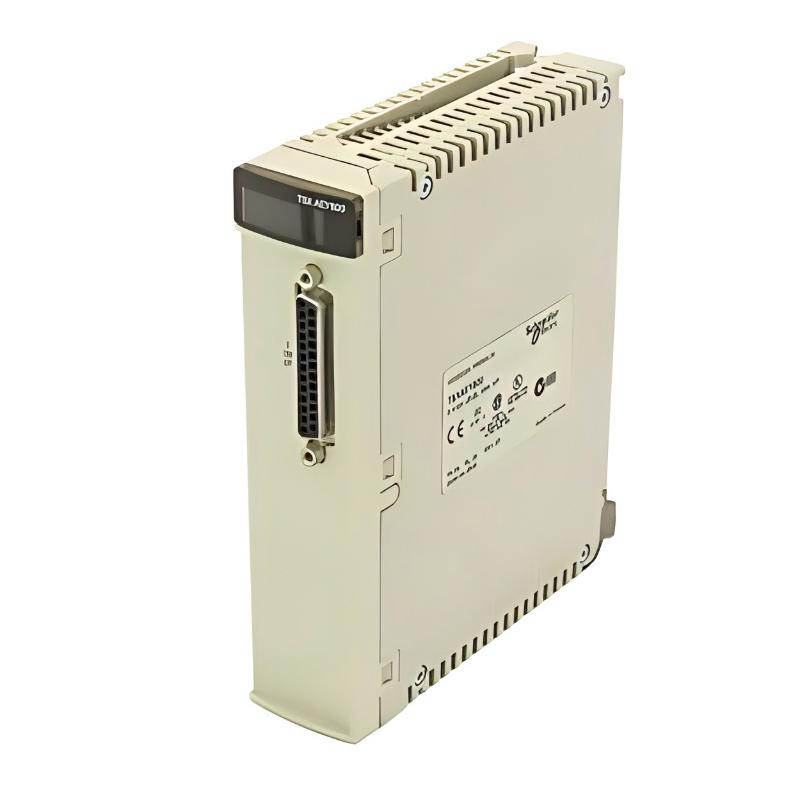

The Schneider SXAEY800 analog input module is designed for reliable acquisition of multiple analog signals in Modicon Premium PLC systems. It converts field sensor signals into accurate digital data, enabling stable and efficient process monitoring and industrial automation control.
Technical Specifications
Parameter
Details
Product Model
SXAEY800
Product Type
Analog Input Module
System Compatibility
Modicon Premium Series
Input Channels
8 Analog Inputs
Signal Types
Voltage / Current
Resolution
12-bit
Operating Environment
Industrial
Dimensions
55 × 180 × 260 mm
Weight
0.31 kg
Suggested Companion Units
Model
Product Name
TSXPSY5500
Power Supply Module
TSXDEY16D2
Digital Input Module
TSXDSY16T2
Digital Output Module
TSXETY4103
Ethernet Communication Module
Frequently Selected Alternatives
Model
Product Name
TSXAEY414
High-Precision Analog Input Module
TSXAEY801
Current Input Module
TSXAEY1600
Standard Analog Input Module
TSXASY800
Analog Output Module
Applications
• Process automation systems
Provides accurate analog signal acquisition for industrial process monitoring and control.
• Energy management systems
Supports measurement of electrical and physical variables such as voltage and current in power systems.
• Manufacturing automation lines
Enables stable sensor data collection for real-time production control.
• Environmental monitoring systems
Interfaces with temperature, pressure, and flow transmitters for continuous measurement.
• Industrial data acquisition systems
Converts field analog signals into PLC-ready digital values for control logic processing.
Key Advantages
• Multi-signal input capability
Supports various analog signal types including voltage and current inputs.
• Stable measurement performance
Delivers consistent signal conversion for reliable process control.
• Electrical isolation design
Helps reduce noise and improves signal integrity in industrial environments.
• PLC integration compatibility
Designed for seamless use within Schneider Modicon Premium architectures.
• Industrial-grade durability
Ensures long-term reliable operation under standard factory conditions.
Technical FAQs
1. What is the function of the SXAEY800 module?
It converts analog signals from field devices into digital values for PLC processing.
2. How many input channels does it have?
It provides 8 analog input channels.
3. What signal types does it support?
It supports standard voltage and current signals.
4. What is the resolution of the module?
It uses 12-bit analog-to-digital conversion.
5. Which PLC system is it designed for?
It is designed for Schneider Modicon Premium series.
6. Does it support signal isolation?
Yes, it provides electrical isolation between channels and system bus.
7. Can it be used for temperature measurement?
Yes, when paired with appropriate temperature transmitters.
8. Is it suitable for industrial environments?
Yes, it is designed for standard industrial operating conditions.
9. Does it support fast signal sampling?
Yes, it is suitable for typical industrial process scan cycles.
10. Can it handle noise-prone environments?
Yes, its design improves resistance to electrical noise interference.
