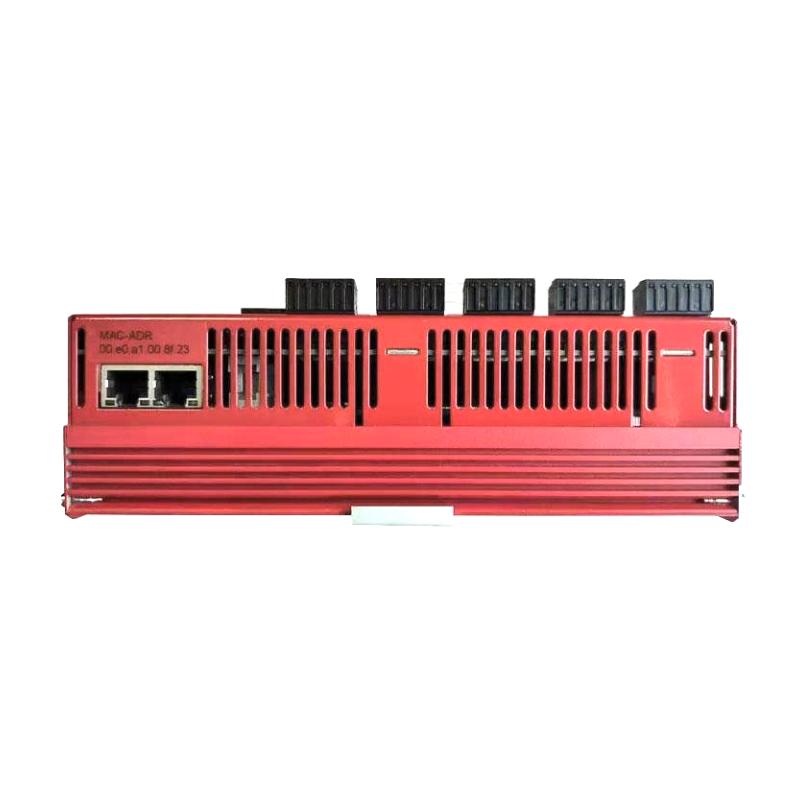

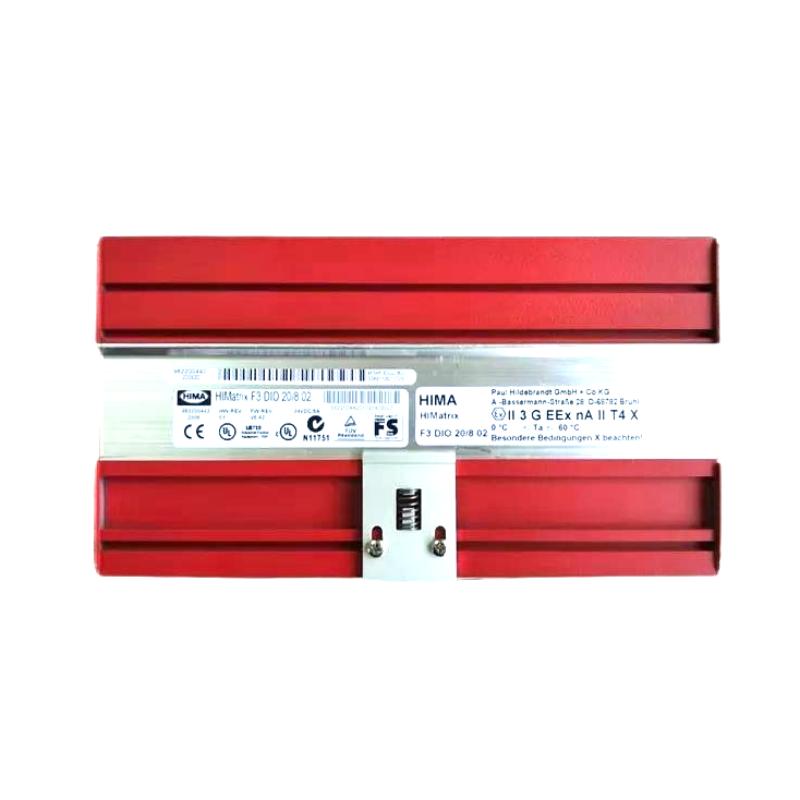

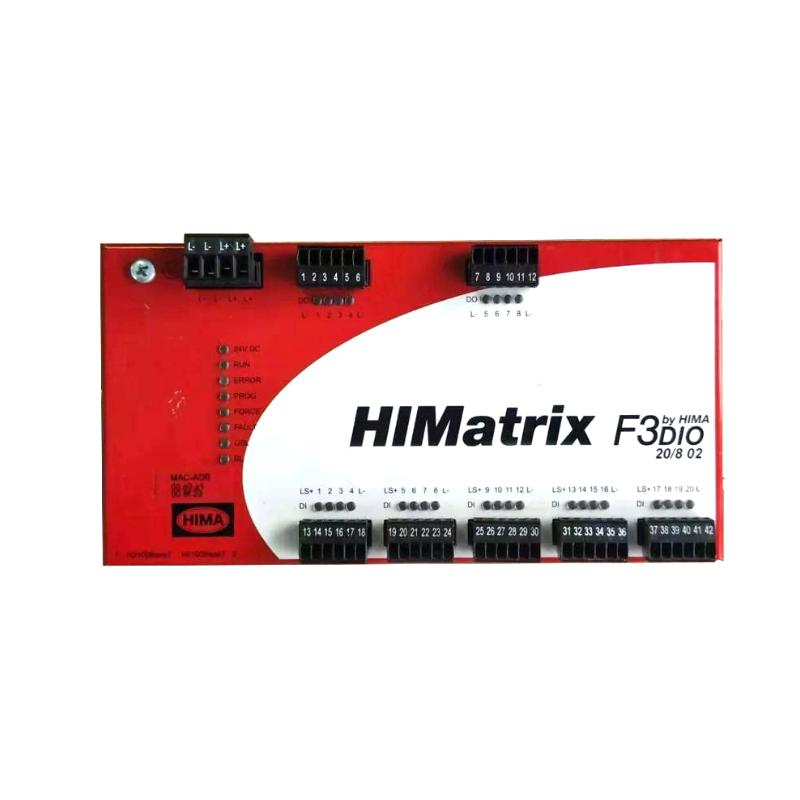

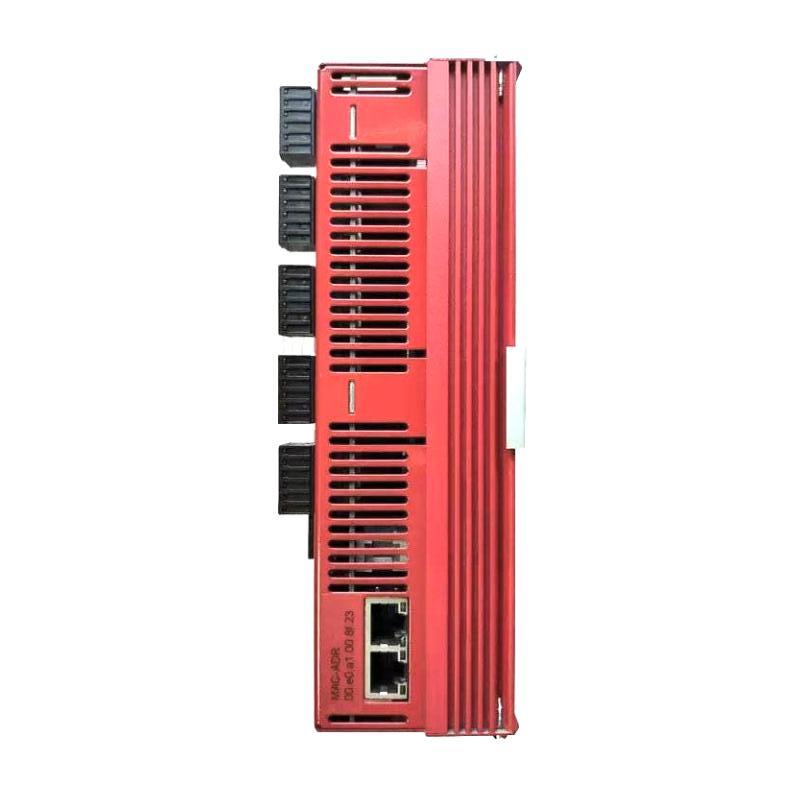

HIMA F3 DIO 20/8 02 Remote I/O module

Applications & Ideal Use Cases
The HIMA F3 DIO 20/8 02 Remote I/O Module is engineered for large-scale industrial automation and safety-critical applications. It provides a reliable solution for managing discrete input and output signals, typically in demanding environments like chemical processing, power generation, and manufacturing systems. This module is especially useful in distributed systems, offering efficient signal processing for a wide range of field devices, where real-time monitoring and control are paramount.

Key Advantages

1. Expanded I/O Capacity
   With 20 discrete input channels and 8 discrete output channels, the F3 DIO 20/8 02 provides ample signal capacity for complex systems, reducing the need for additional I/O modules.
2. Compact & Space-Efficient
   Despite its high I/O count, this module maintains a compact design (207 x 114 x 66 mm), making it ideal for systems with limited space.
3. Reliable Performance in Harsh Environments
   Built to operate in industrial conditions, the module is designed to withstand temperature fluctuations, electromagnetic interference, and other challenging environmental factors.
4. Easy Integration
   Seamless integration with HIMA’s safety systems allows for quick setup and consistent, reliable performance across all components in the control network.
5. Low Latency for Critical Tasks
   Fast signal response times ensure that the module performs reliably in real-time applications, where even slight delays can have significant impacts.

Technical FAQs

1. How many I/O channels does the F3 DIO 20/8 02 provide?
   This module offers 20 discrete input channels and 8 discrete output channels, suitable for managing a wide array of field devices.
2. What kind of signals does the module handle?
   It processes discrete (digital) signals, ideal for on/off or binary devices such as switches, relays, and sensors.
3. Is the module suitable for safety-critical applications?
   Yes, it meets the safety standards necessary for deployment in critical systems, ensuring reliable and secure operation.
4. Can this module be used in hazardous areas?
   With appropriate enclosures and safety measures, this module can be deployed in hazardous environments, providing reliable performance under such conditions.
5. What communication interface does the module use?
   The module connects to the system’s distributed I/O network, ensuring high-speed and secure communication between field devices and safety controllers.
6. How does this module handle diagnostics?
   Built-in diagnostics help monitor system health and signal integrity, providing real-time feedback and ensuring safe operation.
7. What is the power consumption of the module?
   The module is designed for energy efficiency, consuming minimal power while maintaining optimal performance.
8. What is the operating temperature range of the F3 DIO 20/8 02?
   It operates reliably within a wide temperature range of -40°C to 70°C, making it suitable for diverse industrial environments.
9. How is the module configured?
   Configuration is managed using HIMA’s engineering tools, which simplify setup and ensure compatibility within safety systems.
10. Is this module compatible with other HIMA components?
    Yes, it is fully compatible with other HIMA safety and control modules, enabling easy integration within larger system architectures.
