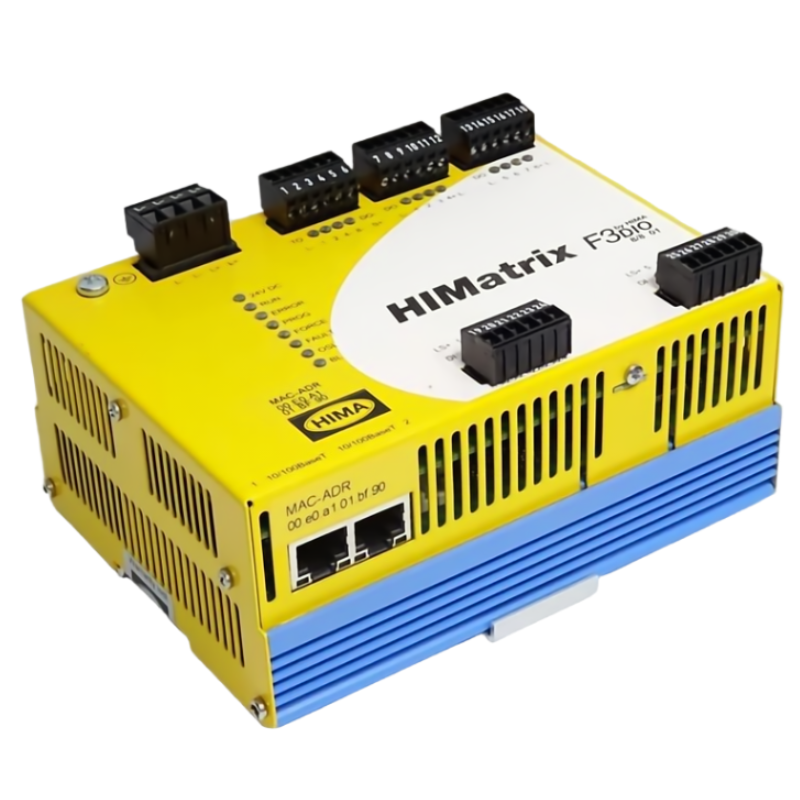

HIMA F3 DIO 8/8 01 Remote I/O Module (HIMatrix F3)

Applications & Use Cases
The HIMA F3 DIO 8/8 01 Remote I/O Module, part of the HIMatrix F3 series, is designed for high-performance, distributed safety systems. This module is particularly useful in industries like automotive, power generation, oil & gas, and process control, where both discrete inputs and outputs need to be managed in real-time. Whether it’s for monitoring on/off status, controlling field devices, or interfacing with sensors and actuators, this module excels in delivering reliable performance in complex control environments.

Key Advantages

1. Flexible I/O Configuration
   With 8 discrete inputs and 8 discrete outputs, the F3 DIO 8/8 01 offers a balanced I/O configuration ideal for a range of applications that require quick, reliable signal processing.
2. Compact and Efficient
   The module’s small form factor (152 x 114 x 66 mm) ensures that it can be integrated easily into systems where space is at a premium, yet still delivers powerful functionality.
3. Real-Time Control
   Designed for real-time control, the module ensures quick response times, allowing for instant monitoring and fast action in safety-critical situations.
4. Reliability in Harsh Environments
   Built to withstand tough industrial environments, the module’s robust design ensures reliable performance even in the presence of electromagnetic interference, temperature fluctuations, and other environmental stresses.
5. Seamless Integration with HIMatrix F3 System
   As part of the HIMatrix F3 platform, this module integrates seamlessly with other components in the system, allowing for quick setup and easy scalability across large distributed systems.

Technical FAQs

1. How many I/O channels does the F3 DIO 8/8 01 provide?
   The module provides 8 discrete inputs and 8 discrete outputs, making it ideal for managing a wide range of field devices.
2. What types of signals does the module support?
   It handles discrete (digital) signals, suitable for devices that require on/off or binary status monitoring.
3. Is the F3 DIO 8/8 01 suitable for safety-critical applications?
   Yes, this module is designed to meet the high safety standards required for safety-critical applications in industries like chemical, energy, and process control.
4. What communication protocol does the module use?
   The module communicates via the HIMatrix F3 network, ensuring high-speed, reliable communication with safety controllers and other system components.
5. How is the module configured?
   Configuration is simplified through HIMA's engineering tools, making it easy to integrate into safety systems and customize based on system needs.
6. What is the power consumption of the module?
   The F3 DIO 8/8 01 is designed to be energy-efficient, consuming minimal power while ensuring reliable and high-performance operation.
7. Can this module be installed remotely?
   Yes, it is designed for remote installations within distributed systems, helping to reduce wiring complexity and improve system scalability.
8. What is the temperature range for operation?
   The module operates reliably in environments with temperatures ranging from -40°C to 70°C, making it suitable for use in extreme conditions.
9. Does the module support fault diagnostics?
   Yes, the module includes built-in diagnostic capabilities, allowing for real-time fault detection and troubleshooting.
10. Is the module compatible with other HIMA components?
    Yes, it integrates seamlessly with other HIMA safety controllers and modules, making it a flexible choice for expanding or upgrading existing safety systems.
