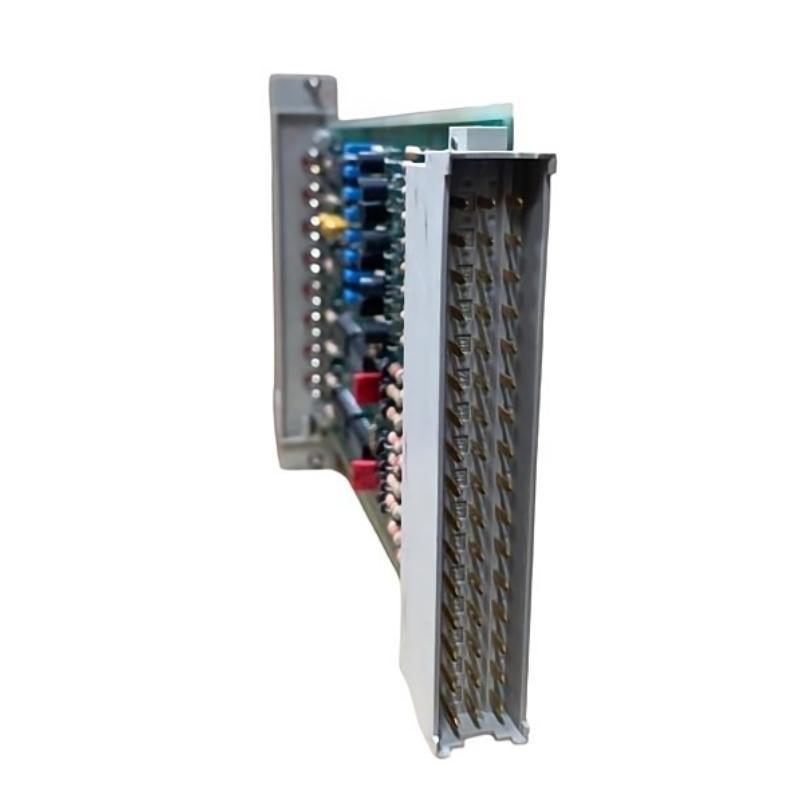

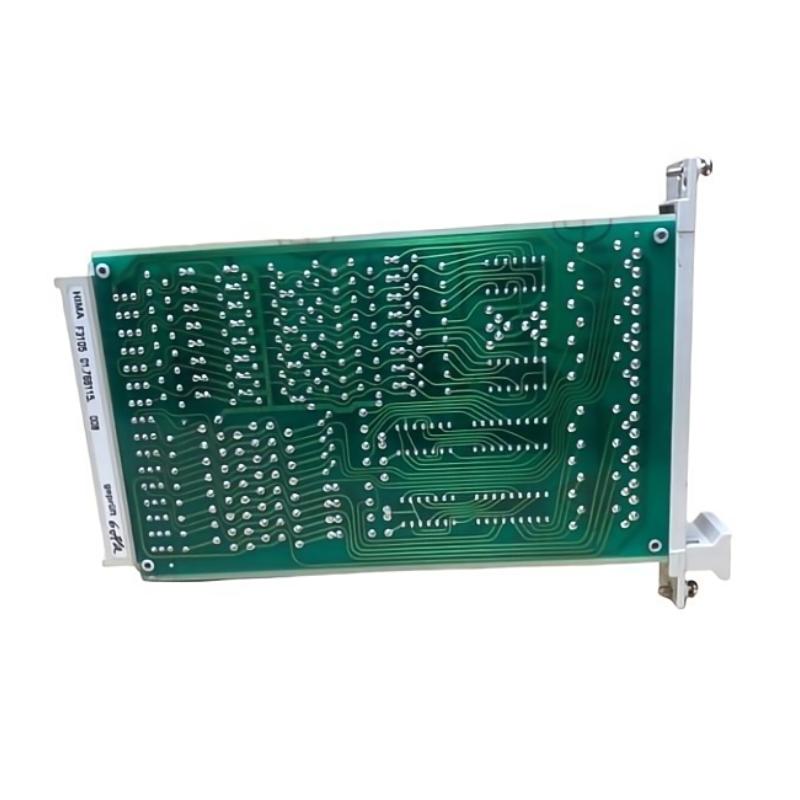

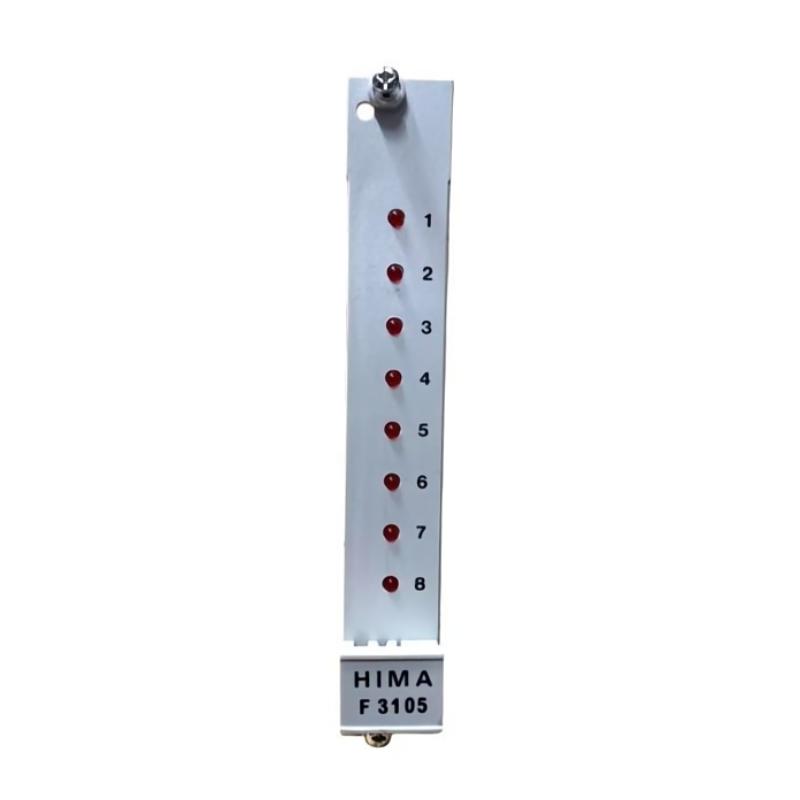

HIMA F3105 4-Channel Relay Module (Planar F System)
HIMA F3105 4-Channel Relay Module (Planar F System)
0.0
Points
Brand:Hima DCS Modules Item No.:F3105 Product Origin:Germany Product Dimensions:100 x 25 x 120 mm Product Weight:0.65 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Overview
The HIMA F3105 4-Channel Relay Module delivers dependable switching performance for safety-critical applications within the Planar F system. Its compact design, strong isolation characteristics, and robust industrial construction make it ideal for controlling essential field devices in high-availability environments. By ensuring reliable relay operation and seamless system integration, it supports safe and efficient automation across demanding industrial processes.
Technical Specifications
Specification
Details
Module Type
4-Channel Relay Module
System Platform
Planar F System
Function
Relay Output Switching
Channels
4
Installation
Rack-mounted (Planar System)
Dimensions
100 x 25 x 120 mm
Weight
0.65 kg (1.4330 lb)
Operating Environment
Industrial
Cooling Method
Passive
Applications & Industrial Use
The HIMA F3105 4-Channel Relay Module is designed for safety-oriented switching tasks within the Planar F system architecture. It is widely used in process automation, energy production, petrochemical plants, and critical infrastructure control systems. The module provides reliable galvanically isolated switching of field loads such as alarms, solenoids, shutdown circuits, and interlock signals, making it a key component in safety instrumented systems (SIS).
Key Advantages
Reliable Relay Switching Performance
Ensures precise and stable switching of safety-related outputs, even under high-load industrial conditions.
Galvanic Isolation Design
Provides strong electrical isolation between control logic and field circuits, enhancing system safety and signal integrity.
Compact High-Density Design
Its slim form factor allows efficient use of control cabinet space while maintaining four independent relay channels.
Industrial Durability
Built to withstand vibration, electrical noise, and harsh operating environments typical in heavy industries.
Seamless Planar F Integration
Fully compatible with the Planar F system, ensuring straightforward integration without additional configuration complexity.
Technical FAQs
What is the main function of the F3105 module?
It provides 4-channel relay-based switching for safety and control applications.
What types of loads can it control?
It can switch alarms, actuators, solenoids, and other discrete field devices.
Does it provide electrical isolation?
Yes, it includes galvanic isolation between control and output circuits.
Is it suitable for safety systems?
Yes, it is designed for use in safety-related industrial control applications.
How many relay channels are available?
The module provides four independent relay channels.
Is it compatible with Planar F architecture?
Yes, it is fully integrated into the Planar F system platform.
Can it operate in harsh environments?
Yes, it is designed for industrial environments with high reliability requirements.
Does it support continuous operation?
Yes, it is engineered for long-term continuous industrial use.
How is the module installed?
It is mounted within a Planar F system rack or designated slot.
Does it require active cooling?
No, it operates using passive cooling.
