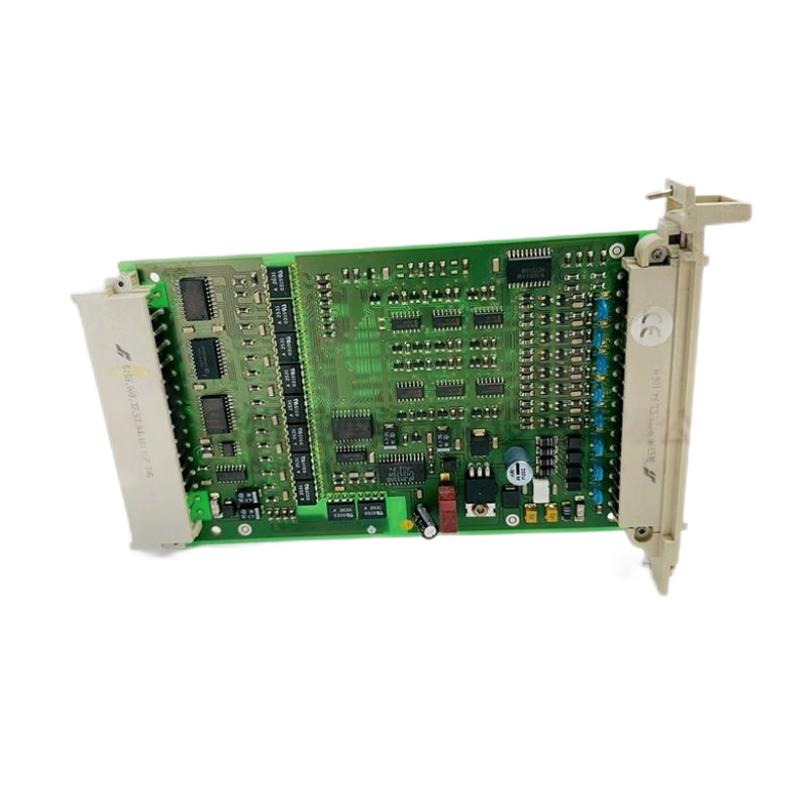

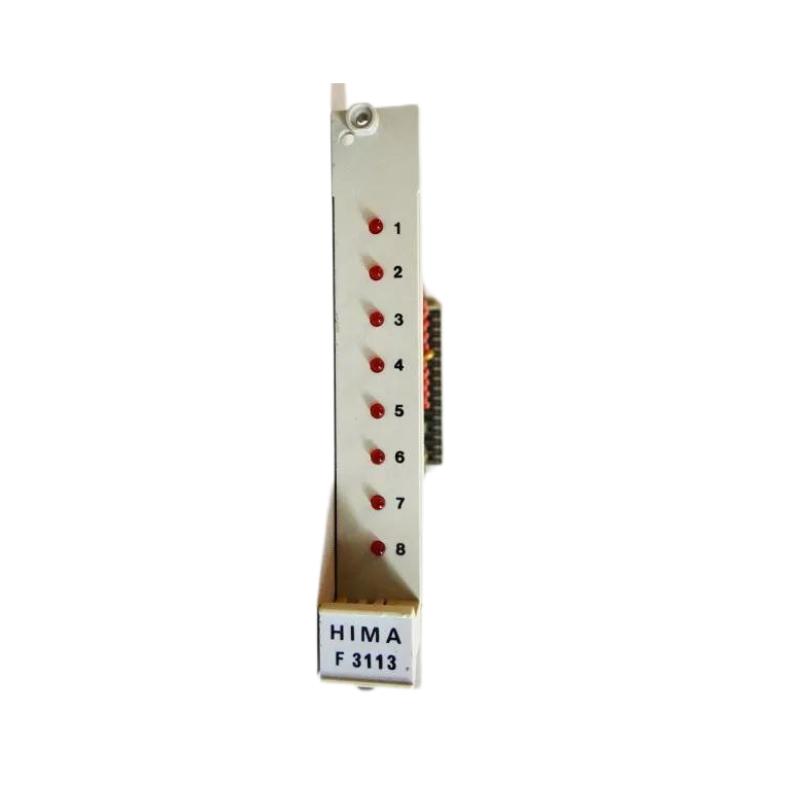

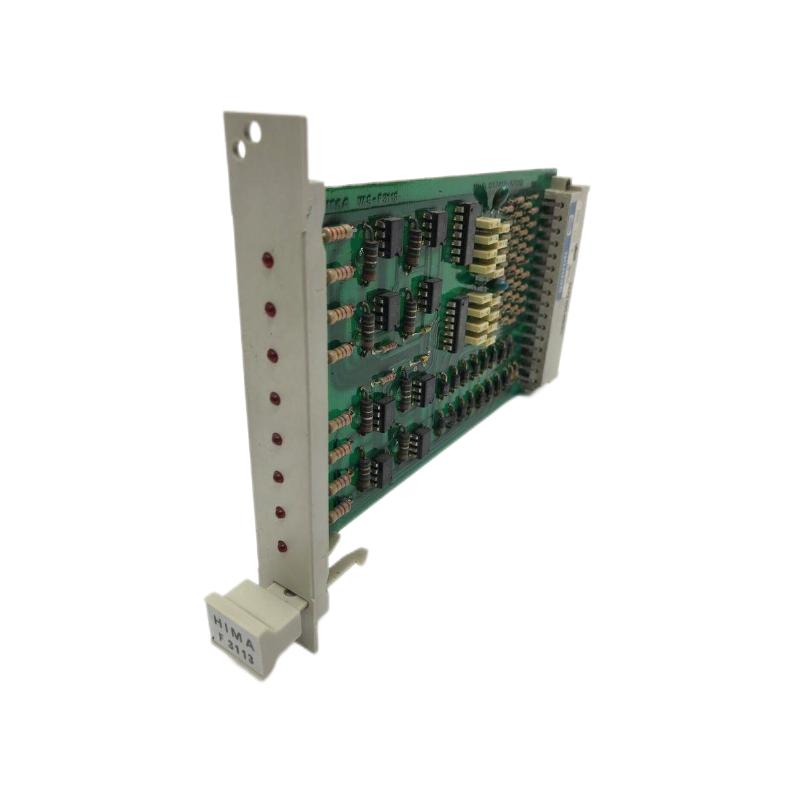

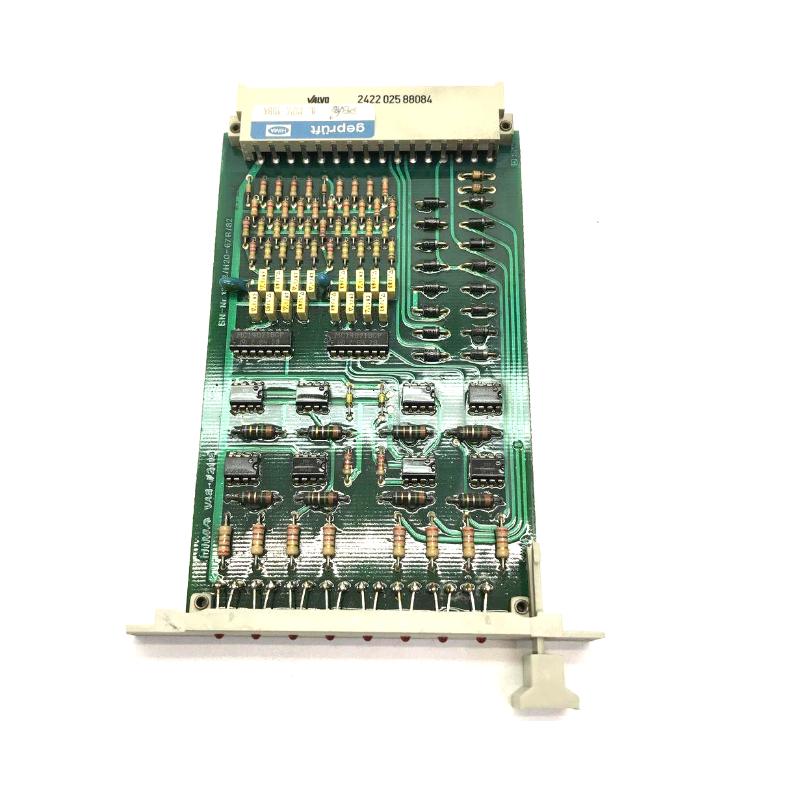

HIMA F3113 8-Channel Output Amplifier Module (Planar F System)
HIMA F3113 8-Channel Output Amplifier Module (Planar F System)
0.0
Points
Brand:Hima DCS Modules Item No.:F3113 Product Origin:Germany Product Dimensions:130 x 25 x 120 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Overview
The HIMA F3113 8-Channel Output Amplifier Module delivers reliable multi-channel signal amplification for safety-critical industrial applications. As part of the Planar F system, it ensures stable and efficient output distribution while maintaining high operational integrity. Its compact design, strong electrical performance, and proven industrial reliability make it a dependable solution for legacy safety automation systems requiring precise and consistent output control.
Technical Specifications
Specification
Details
Module Type
8-Channel Output Amplifier
System Platform
Planar F System
Function
Output Signal Amplification
Channels
8
Installation
Rack-mounted (Planar System)
Dimensions
130 x 25 x 120 mm
Weight
0.32 kg (0.7055 lb)
Operating Environment
Industrial
Cooling Method
Passive
Applications & Industrial Use
The HIMA F3113 8-Channel Output Amplifier Module is designed for safety-related signal amplification within the Planar F system architecture. It is widely used in industrial automation environments such as power plants, petrochemical processing, oil & gas facilities, and safety instrumented systems (SIS). The module ensures reliable distribution and amplification of output signals to field devices such as actuators, relays, and control elements, enabling stable execution of safety and control functions in critical applications.
Key Advantages
8-Channel Output Capability
Provides eight independent output amplification channels, enabling efficient control of multiple field devices within a compact module.
Stable Signal Amplification
Ensures consistent and accurate signal boosting, improving reliability in safety-related control operations.
Compact Industrial Design
Slim form factor (130 x 25 x 120 mm) allows high-density installation in Planar F cabinets without occupying excessive space.
High Operational Reliability
Designed for continuous industrial operation with strong resistance to electrical noise and harsh environmental conditions.
Seamless Planar F Integration
Fully compatible with Planar F system architecture, ensuring smooth communication and minimal configuration effort.
Technical FAQs
What is the main function of the F3113 module?
It amplifies and distributes 8 channels of output signals to field devices.
Is this module used for safety systems?
Yes, it is designed for safety-related industrial automation and control systems.
How many output channels does it support?
It supports 8 independent output channels.
What type of signals does it handle?
It processes and amplifies digital output signals from control systems.
Is it compatible with Planar F architecture?
Yes, it is fully integrated into the Planar F system platform.
Can it operate in harsh environments?
Yes, it is designed for industrial environments with vibration, heat variation, and electrical interference.
Does it support continuous operation?
Yes, it is built for long-term continuous industrial use.
Does it require active cooling?
No, it uses passive cooling design.
Is it still in production?
It belongs to a legacy Planar F module family, with some variants replaced by newer alternatives in modern systems.
What is its role in a control system?
It acts as an output interface layer between controller logic and field-level actuators.
