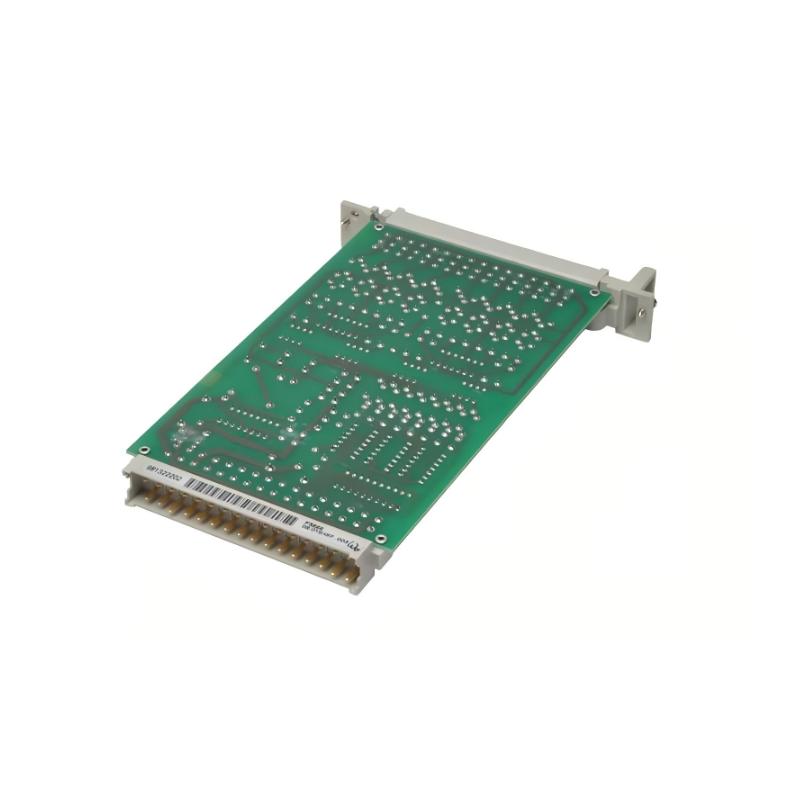

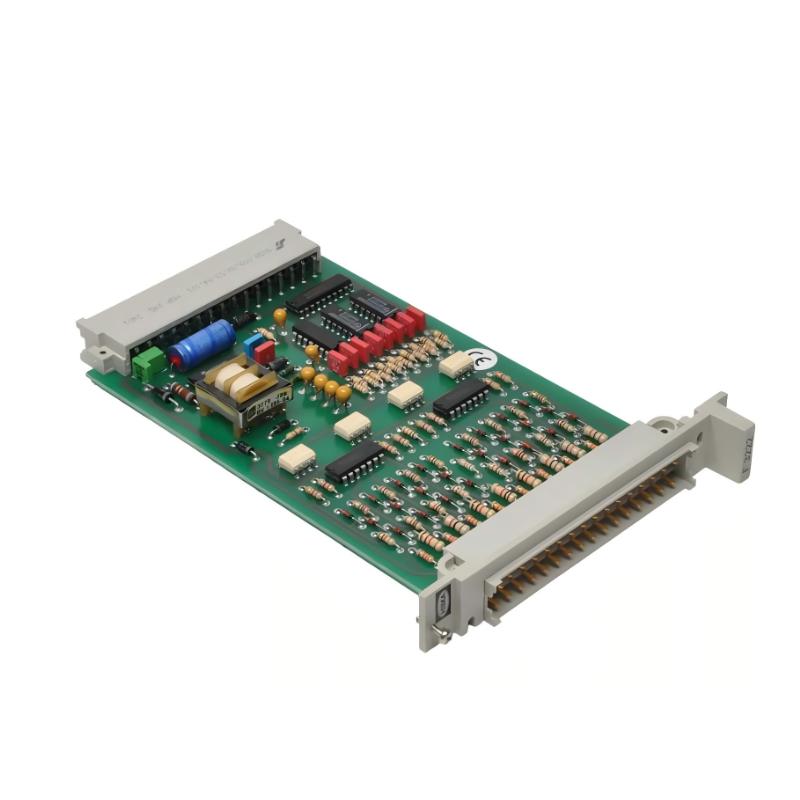

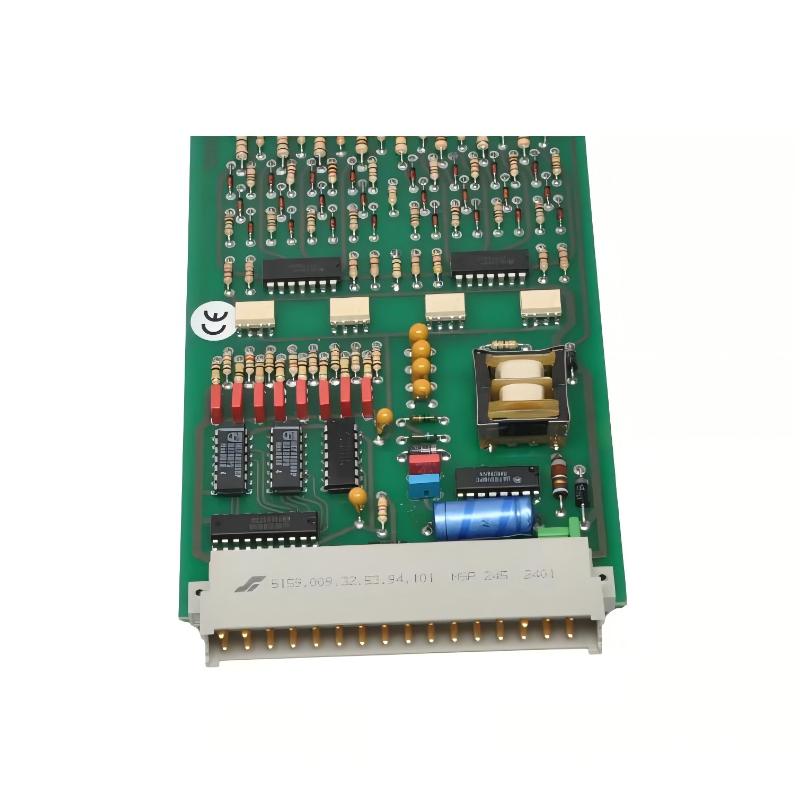

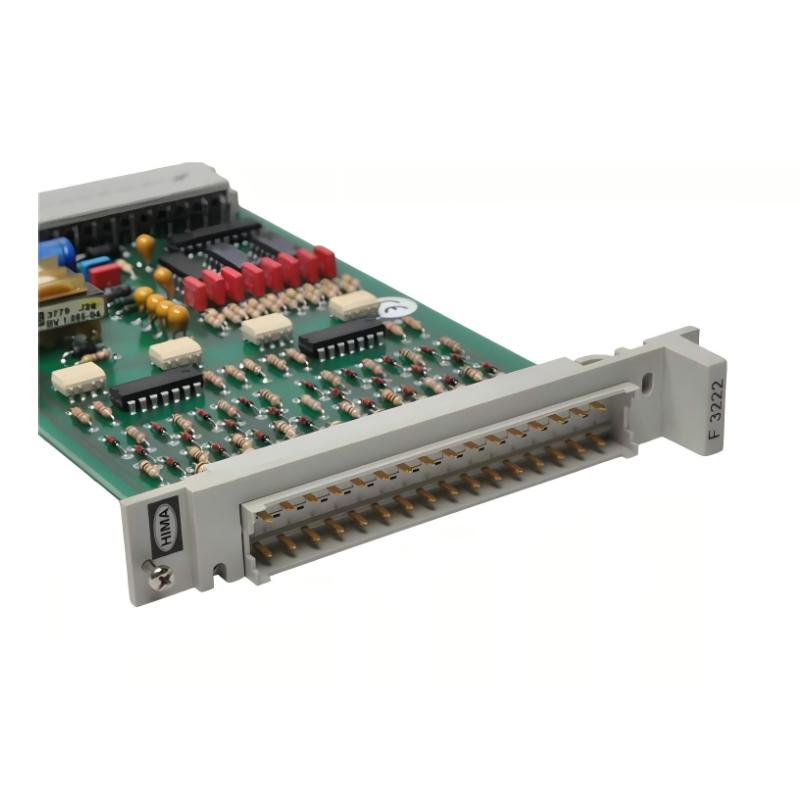

HIMA F3222 8-Channel Proximity Switch Input Module

Applications & Industrial Use
The HIMA F3222 8-Channel Proximity Switch Input Module is designed for safety-related input signal processing within industrial control systems, specifically suited for monitoring proximity switches and similar field devices. Commonly used in environments like manufacturing automation, material handling, power generation, and process industries, this module ensures reliable signal acquisition from proximity sensors, enabling precise monitoring and response in safety-critical applications. Integrated into the Planar F system, it allows for seamless data flow and system operation within a distributed control environment.

Key Advantages

1. 8 Independent Input Channels
   Supports up to 8 individual input channels, allowing for the connection and monitoring of multiple proximity sensors and other devices.
2. Precise Signal Processing
   The module is optimized to handle proximity switch inputs, ensuring high integrity and accuracy for safety applications.
3. Compact and Space-Efficient
   With a small form factor of 130 x 30 x 100 mm, the module is ideal for installations where space is limited without compromising on functionality.
4. Robust Design for Industrial Environments
   Built to withstand electrical noise, temperature fluctuations, and other challenging environmental conditions typical of industrial settings.
5. Seamless Integration into Planar F System
   Fully compatible with the Planar F system, facilitating easy installation and integration with other system components for expanded functionality.

Technical FAQs

1. What is the primary function of the F3222 module?
   It processes input signals from up to 8 proximity switches, enabling precise monitoring of safety-related conditions.
2. How many channels are supported?
   The module supports 8 independent input channels.
3. What type of field devices does it support?
   It is designed for use with proximity switches and similar sensors that provide discrete inputs.
4. Is the F3222 module suitable for safety systems?
   Yes, it is ideal for safety-related applications where reliable and accurate input signal processing is critical.
5. Can it operate in harsh environments?
   Yes, the module is engineered for industrial conditions with strong resistance to electrical noise, vibration, and temperature extremes.
6. Is the module compatible with other Planar F system components?
   Yes, it integrates smoothly into the Planar F system, ensuring effective communication with other modules and devices.
7. Does it require active cooling?
   No, the module uses passive cooling design, making it energy-efficient and low-maintenance.
8. What is its role in a control system?
   It acts as the interface between proximity sensors and the system's safety logic, ensuring that sensor data is properly processed and monitored.
9. What types of applications is it best suited for?
   It is ideal for applications that require the monitoring of proximity sensors, such as equipment position detection, limit switches, and safety interlocks.
10. How is the module installed?
    The F3222 is designed for rack-mount installation within the Planar F system.
