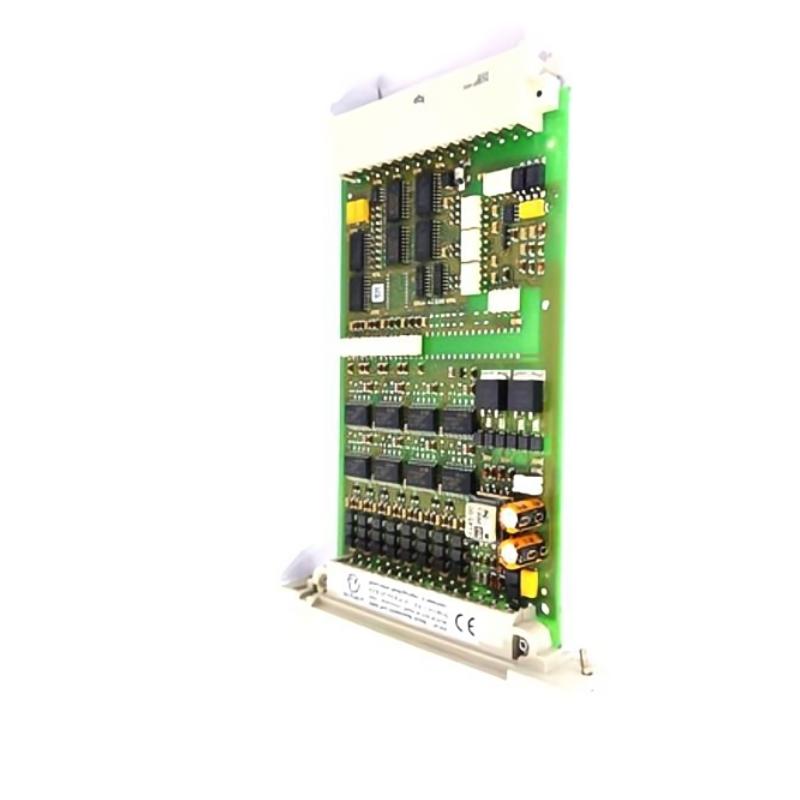

HIMA F3316 Switching Amplifier Module (Planar F System)
HIMA F3316 Switching Amplifier Module (Planar F System)
0.0
Points
Brand:Hima DCS Modules Item No.:F3316 Product Origin:Germany Product Dimensions:200 × 100 × 25 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Overview
The HIMA F3316 Switching Amplifier Module delivers dependable signal amplification and switching for safety-critical applications. Designed as part of the Planar F system, it ensures that field signals are accurately processed and transmitted to control systems. Its compact size, reliable performance, and robust construction make it a practical solution for maintaining operational safety and efficiency in industrial environments.
Technical Specifications
Specification
Details
Module Type
Switching Amplifier Module
System Platform
Planar F System
Function
Signal Amplification & Switching
Channels
1
Installation
Rack-mounted (Planar System)
Dimensions
200 x 100 x 25 mm
Weight
0.3 kg (0.6614 lb)
Operating Environment
Industrial
Cooling Method
Passive
Typical Deployment Scenarios
The HIMA F3316 Switching Amplifier Module is engineered for precision signal amplification and switching within safety-oriented industrial systems. It is frequently deployed in sectors such as energy production, petrochemical processing, and automated manufacturing lines. This module plays a vital role in interfacing between field input signals and control logic, ensuring accurate signal transmission and safe activation of downstream devices such as relays, actuators, and shutdown mechanisms within the Planar F system.
Performance Benefits
Reliable Signal Conditioning
Ensures stable amplification and switching of incoming signals for accurate system response.
Optimized for Safety Systems
Designed to meet the demands of safety instrumented systems where signal integrity is critical.
Slim and Efficient Form Factor
The compact housing allows for efficient cabinet layout and high-density module installation.
Industrial-Grade Durability
Built to perform consistently under electrical noise, vibration, and temperature variations.
System Compatibility
Fully aligned with Planar F architecture for seamless integration and dependable communication.
Technical FAQs
What is the core function of the F3316 module?
It amplifies and switches signals from field inputs to ensure proper system response.
Is this module used in safety applications?
Yes, it is suitable for safety-related control systems requiring high signal reliability.
How many channels does it support?
It is typically configured as a single-channel switching amplifier module.
What types of signals does it process?
It handles discrete input signals that require amplification and switching.
Is it compatible with the Planar F system?
Yes, it integrates directly into the Planar F platform.
Can it operate continuously in industrial environments?
Yes, it is designed for continuous duty in demanding industrial conditions.
Does it require external cooling systems?
No, it operates using passive cooling.
What role does it play in system architecture?
It acts as an interface layer between field devices and control logic.
Is it resistant to electrical interference?
Yes, it is built to withstand industrial electrical noise.
Can it be used in legacy systems?
Yes, it is commonly used in established Planar F installations.
