Brand:Hima DCS Modules Item No.:F3423 Product Origin:Germany Product Dimensions:32 x 210 x 333 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Professional Product Introduction

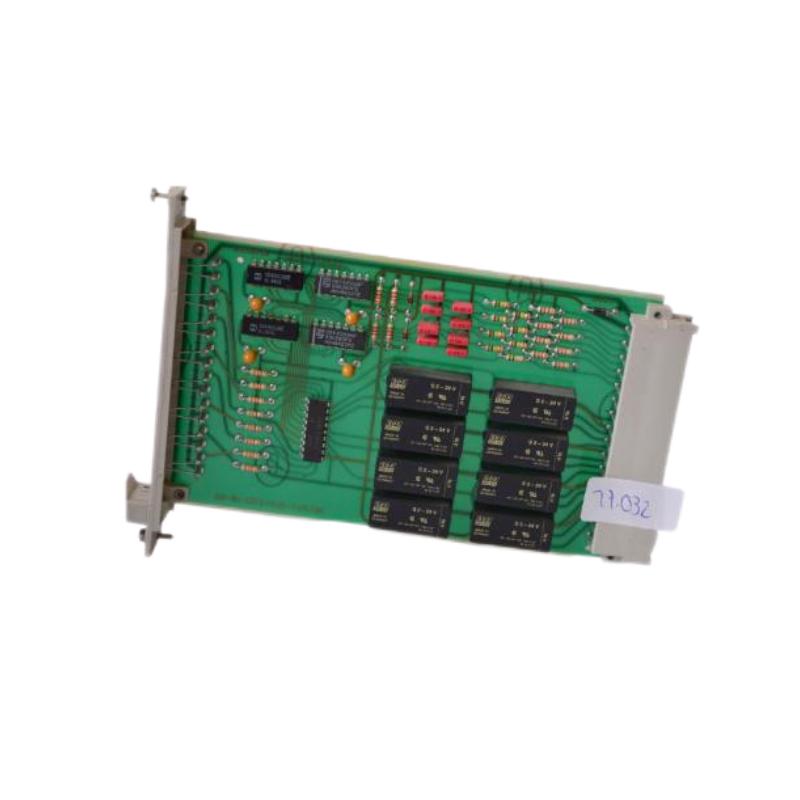

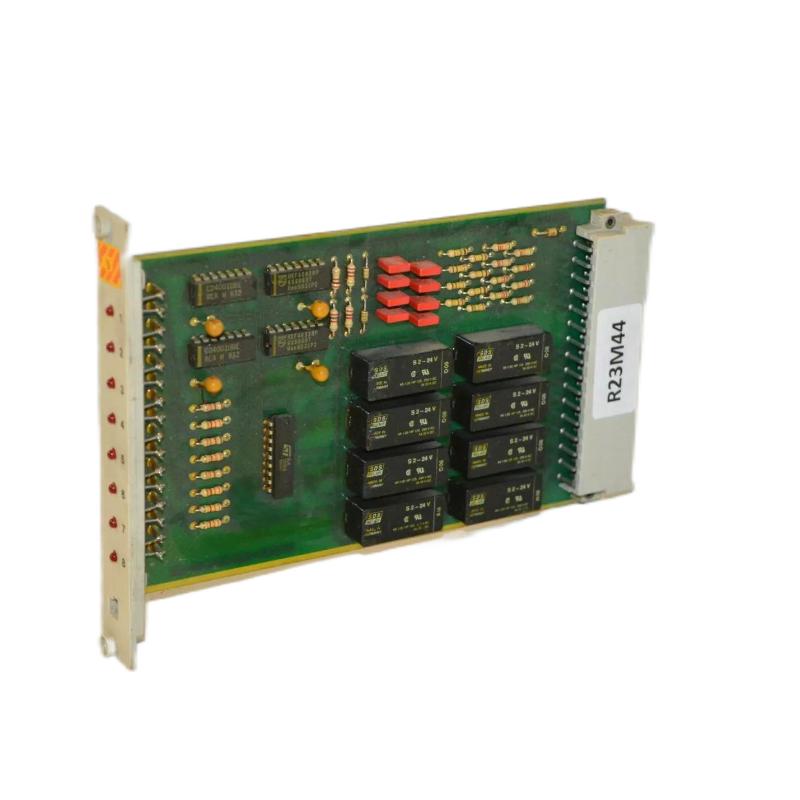

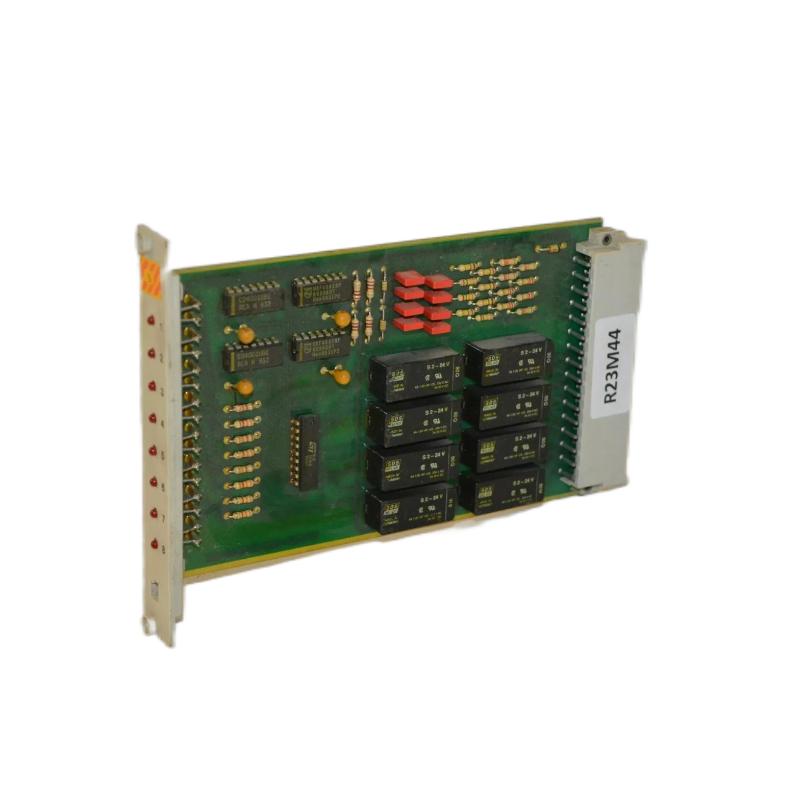

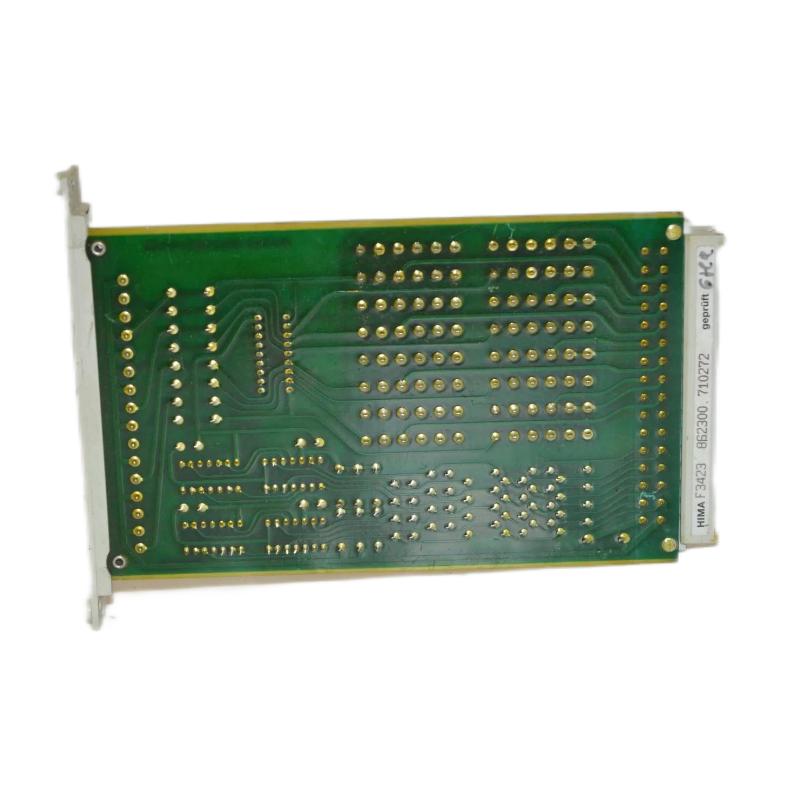

The HIMA F3423 8x Relay Amplifier Module is a highly reliable and performance-focused solution for industrial relay signal amplification. Designed for demanding safety automation systems, it combines multi-channel relay control, compact cabinet integration, and strong environmental durability. Whether used for system expansion, preventive maintenance, or legacy module replacement, the F3423 continues to be a highly sought-after component in Planar F safety platforms. Its proven field performance and robust design make it an excellent choice for mission-critical operations where output precision and safety integrity are paramount.
Technical Specifications
Specification
Details
Module Type
8x Relay Amplifier Module
Part Number
862300 710272/R23M44
System Platform
Planar F System
Function
Relay Signal Amplification & Output Control
Channels
8
Installation
Rack-mounted
Dimensions
32 x 210 x 333 mm
Weight
0.4 kg (0.8818 lb)
Cooling Method
Passive
Application Environment
Industrial / Safety System
Industrial Application Areas
The HIMA F3423 8x Relay Amplifier Module is developed for high-reliability signal amplification and relay output control in safety-critical industrial environments. It is widely deployed in petrochemical facilities, power generation plants, offshore platforms, process automation lines, and emergency shutdown systems where stable relay actuation is essential. As part of the Planar F system, this module is specifically suited for interfacing low-level controller signals with field relays, solenoids, actuators, and interlocking devices, ensuring fast and accurate execution of safety commands.
This model is especially valued in systems requiring multiple relay outputs within a compact rack footprint, making it an excellent choice for control cabinets where density and performance must be balanced.
Key Advantages & Commercial Value
8x Relay Amplification Channels
Supports eight relay amplification outputs, significantly improving system control density and reducing hardware complexity.
High-Speed Signal Response
Designed for fast signal amplification and switching, ensuring minimal response delay in critical shutdown and control sequences.
Industrial-Grade Reliability
Built for continuous operation under harsh environmental conditions including vibration, electrical noise, and temperature fluctuations.
Cabinet Space Optimization
Slim vertical structure allows efficient rack installation and high-density control panel design.
Excellent Legacy System Compatibility
A preferred replacement and upgrade option for existing Planar F system installations.
Technical FAQs
What is the main purpose of the F3423 module?
It amplifies control signals and provides 8 relay-driven outputs for field device switching.
How many relay outputs are available?
The module provides 8 relay amplifier channels.
Is it suitable for safety shutdown systems?
Yes, it is widely used in emergency shutdown and safety interlock applications.
What devices can it drive?
It can control relays, solenoids, actuators, and alarm outputs.
Is it part of the Planar F system?
Yes, it is specifically designed for Planar F architecture.
Can it operate continuously in industrial plants?
Yes, it is built for 24/7 continuous industrial operation.
Does it require external cooling?
No, it uses passive cooling.
Is it suitable for system retrofit projects?
Yes, it is frequently used in system upgrades and maintenance replacements.
How does it perform under electrical interference?
It offers strong resistance to industrial electromagnetic noise.
What makes it popular in legacy systems?
Its stable compatibility and proven long-term reliability make it highly trusted.
