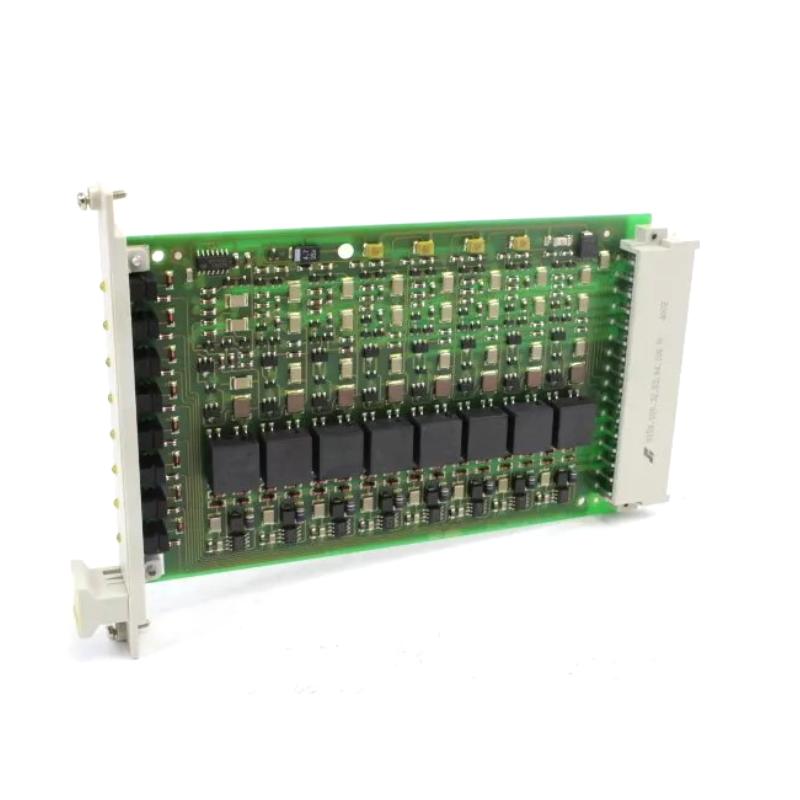

HIMA F4110A Security-Related Four-Channel AND Gate Module (Planar F System)

Industrial Application Overview
The HIMA F4110A Security-Related Four-Channel AND Gate Module is designed for logic-based signal evaluation in safety instrumented systems (SIS). It is widely used in high-risk industries such as oil & gas, petrochemical processing, power generation, offshore platforms, and industrial automation systems where multi-signal validation is required before executing safety actions.

Within the Planar F system architecture, this module performs critical logic voting functions by combining multiple input signals through AND logic, ensuring that safety outputs are only triggered when all defined conditions are simultaneously satisfied. This makes it a key component in interlock systems, emergency shutdown logic chains, and process safety verification circuits.

Key Advantages & Engineering Value

1. Four-Channel Safety Logic Processing
   Enables multi-signal AND logic evaluation across four independent channels, improving decision integrity in safety systems.
2. High-Integrity Signal Validation
   Ensures that outputs are only activated when all input conditions are met, reducing false triggering risks.
3. Compact Safety Logic Module Design
   Small footprint (100 x 50 x 30 mm) allows efficient integration into dense control cabinets.
4. Optimized for Safety Instrumented Systems (SIS)
   Specifically engineered for logic functions in SIL-oriented safety architectures.
5. Stable Operation in Industrial Environments
   Maintains reliable logic performance under electrical noise, vibration, and temperature variations.

Technical FAQs

1. What is the main function of the F4110A module?
   It performs four-channel AND logic operations for safety-related signal evaluation.
2. What does AND gate logic mean in this module?
   It means all input conditions must be true before an output is activated.
3. Is it used in safety shutdown systems?
   Yes, it is commonly used in emergency shutdown and interlock systems.
4. How many input channels does it support?
   It supports four independent input channels.
5. Can it prevent false triggering?
   Yes, it ensures output activation only when all required conditions are met.
6. Is it compatible with Planar F systems?
   Yes, it is fully integrated into the Planar F system architecture.
7. Does it require configuration software?
   No complex configuration is required; it operates as a hardware logic module.
8. Can it operate continuously in industrial environments?
   Yes, it is designed for 24/7 continuous operation.
9. Does it require active cooling?
   No, it uses passive cooling.
10. Where is it typically installed?
    It is installed in safety logic racks within control cabinets.
