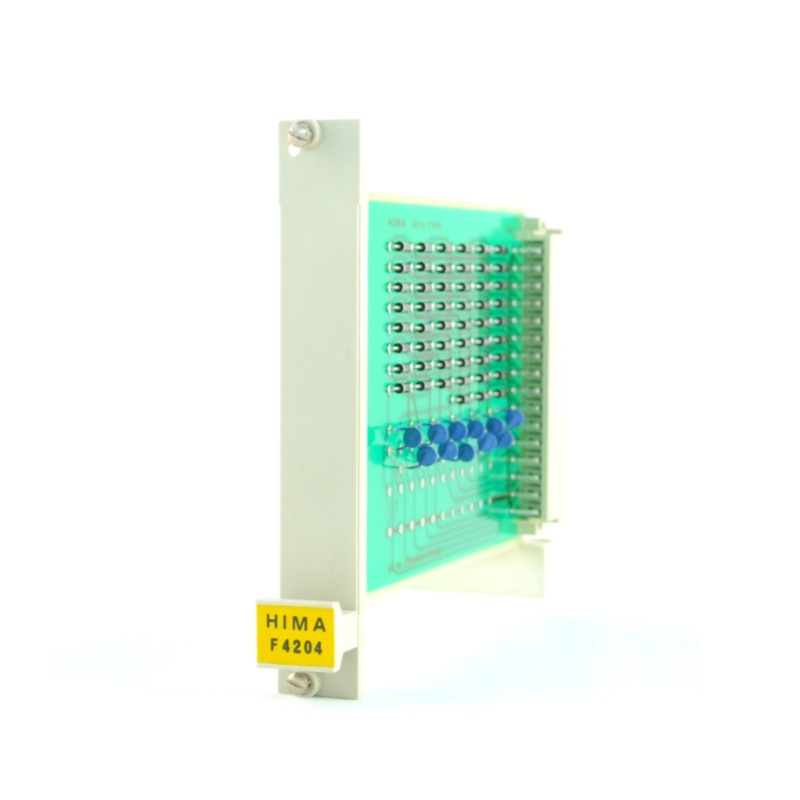

HIMA F4204 Safety Relay Module (Planar F System)

Industrial Application Overview
The HIMA F4204 Safety Relay Module is designed for reliable switching and control of safety-related circuits in industrial automation systems. It is widely used in sectors such as oil & gas, petrochemical processing, power generation, offshore platforms, and manufacturing plants where dependable relay switching is essential for emergency shutdown (ESD), interlock systems, and safety instrumented functions.

Within the Planar F system architecture, the F4204 serves as a critical execution interface between safety logic and field devices. It ensures that safety commands are transmitted through certified relay contacts, enabling safe activation or deactivation of actuators, valves, alarms, and shutdown mechanisms under both normal and fault conditions.

Key Advantages & Engineering Value

1. Dedicated Safety Relay Switching
   Provides reliable relay-based output switching for safety-critical control applications.
2. High Electrical Isolation
   Ensures strong separation between control logic and field circuits, improving system safety integrity.
3. Fast and Deterministic Response
   Enables rapid relay actuation for emergency shutdown and interlock functions.
4. Compact Industrial Design
   Slim housing (120 x 25 x 90 mm) allows high-density installation in control cabinets.
5. Optimized for Planar F Integration
   Fully compatible with Planar F system architecture for seamless deployment.

Technical FAQs

1. What is the main function of the F4204 module?
   It provides safety-related relay switching for industrial control systems.
2. Is it used in emergency shutdown systems?
   Yes, it is commonly used in ESD and safety interlock applications.
3. What type of output does it provide?
   It provides relay contact outputs for switching external devices.
4. Is it suitable for safety instrumented systems?
   Yes, it is designed for SIS applications requiring high reliability.
5. How does it improve system safety?
   It ensures galvanic isolation and controlled switching of safety circuits.
6. Is it compatible with Planar F systems?
   Yes, it integrates directly into the Planar F architecture.
7. Can it operate continuously in industrial environments?
   Yes, it is designed for 24/7 continuous operation.
8. Does it require active cooling?
   No, it operates using passive cooling.
9. What devices can it control?
   It can control actuators, alarms, valves, and shutdown circuits.
10. Is it suitable for retrofit applications?
    Yes, it is commonly used in system upgrades and replacements.
