Brand:Hima DCS Modules Item No.:F7508 Product Origin:Germany Product Dimensions:100 x 50 x 25 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Overview

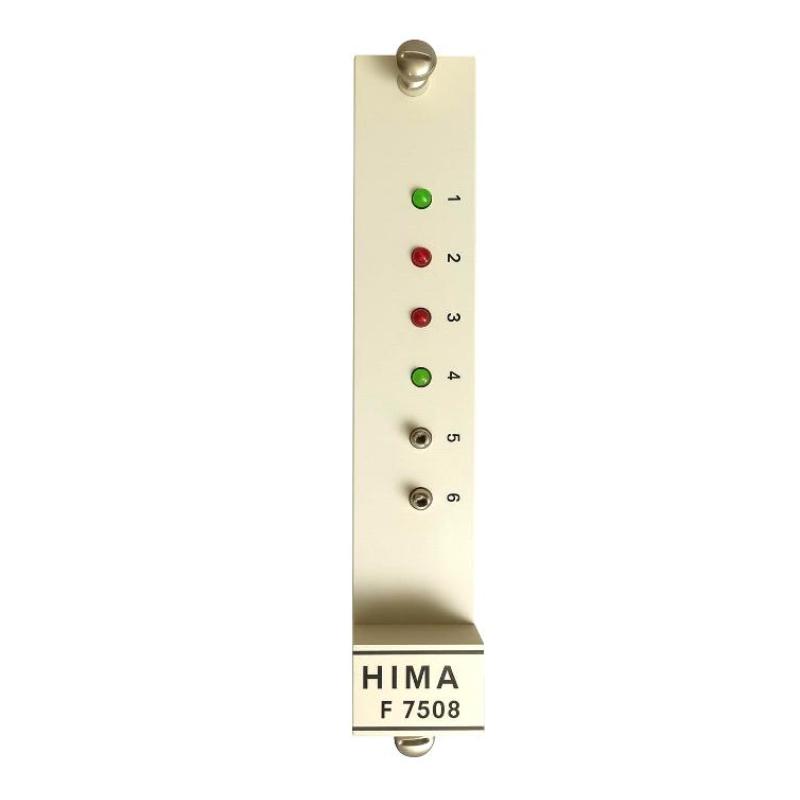

The HIMA F7508 Bypass Module provides safe and controlled bypass functionality for industrial safety systems. It allows maintenance and testing activities to be performed without fully interrupting system operations, improving uptime and operational efficiency. With its compact design and reliable performance, it integrates seamlessly into Planar F architectures, supporting safe maintenance workflows in demanding industrial environments.
Technical Specifications
Specification
Details
Module Type
Bypass Module
System Platform
Planar F System
Function
Signal/Logic Bypass Control
Installation
Rack-mounted
Dimensions
100 x 50 x 25 mm
Weight
0.1 kg (0.2205 lb)
Operating Environment
Industrial / Safety Systems
Cooling Method
Passive
Industrial Application Overview
The HIMA F7508 Bypass Module is designed to provide controlled bypass functionality within safety instrumented systems (SIS) and industrial automation environments. It is widely used in oil & gas facilities, petrochemical plants, power generation stations, offshore platforms, and process industries where temporary signal bypassing is required during maintenance, testing, commissioning, or system diagnostics.
Within the Planar F system architecture, the F7508 enables selective bypassing of safety-related signals or logic paths without disrupting overall system integrity. This allows maintenance teams to perform troubleshooting or calibration activities while maintaining controlled operational safety conditions. It is typically used in bypass management strategies for input/output channels, interlock systems, and safety loop verification.
Key Advantages & Engineering Value
Controlled Signal Bypass Functionality
Enables safe and selective bypass of system signals during maintenance or testing operations.
Enhanced Maintenance Efficiency
Reduces system downtime by allowing diagnostics without full system shutdown.
Safety-Oriented Design
Ensures bypass operations are managed under controlled and predictable conditions.
Compact Modular Structure
Space-efficient design (100 x 50 x 25 mm) supports easy integration into control cabinets.
Seamless Planar F Integration
Fully compatible with Planar F system architecture for reliable deployment.
Technical FAQs
What is the main function of the F7508 module?
It provides controlled bypass functionality for safety-related signals and logic paths.
When is the bypass function used?
It is used during maintenance, testing, calibration, or system diagnostics.
Does it affect system safety integrity?
It is designed to maintain controlled safety conditions during bypass operations.
Is it used in emergency shutdown systems?
It may be used in supporting bypass management for ESD-related loops.
Is it compatible with Planar F systems?
Yes, it is fully integrated into the Planar F system architecture.
Can it be used for troubleshooting?
Yes, it is commonly used for diagnostic and maintenance purposes.
Does it require software configuration?
No complex configuration is required; it operates as a hardware bypass control module.
Can it operate continuously?
Yes, it is designed for continuous industrial environments.
Does it require active cooling?
No, it uses passive cooling.
Is it suitable for retrofit applications?
Yes, it is widely used in system upgrades and maintenance strategies.
