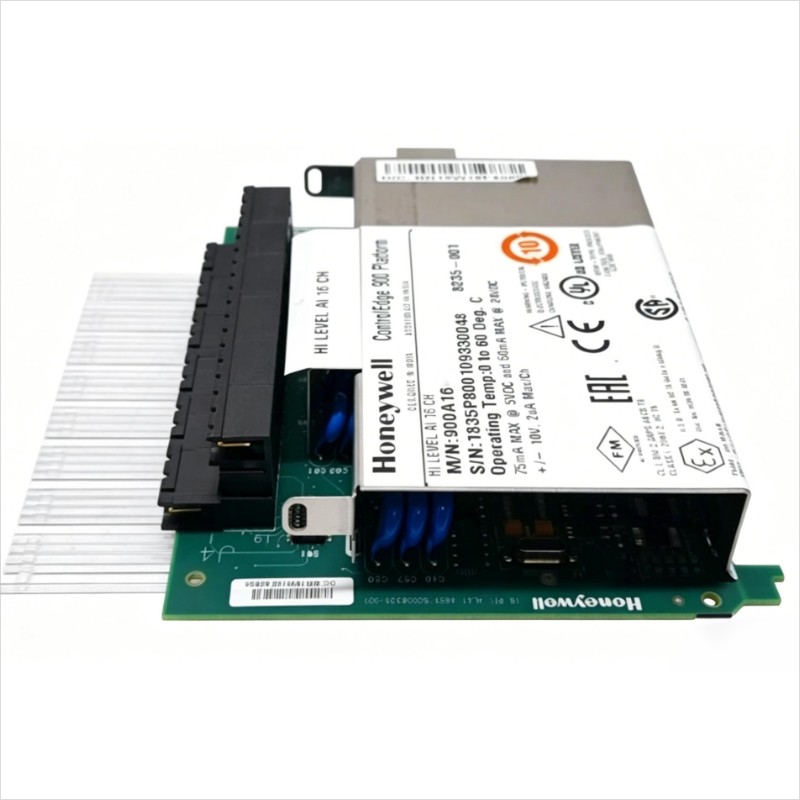

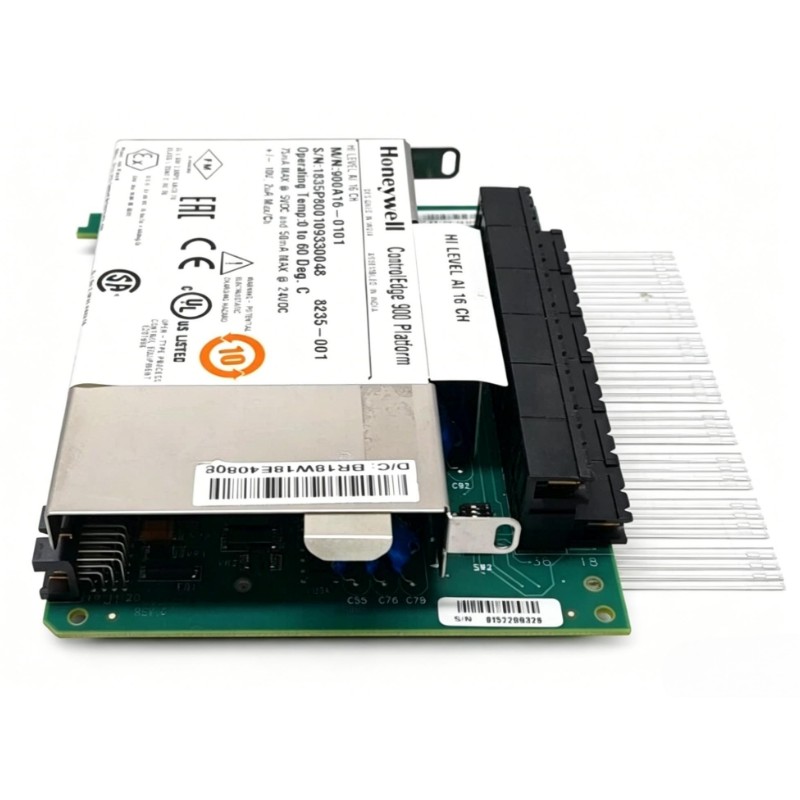

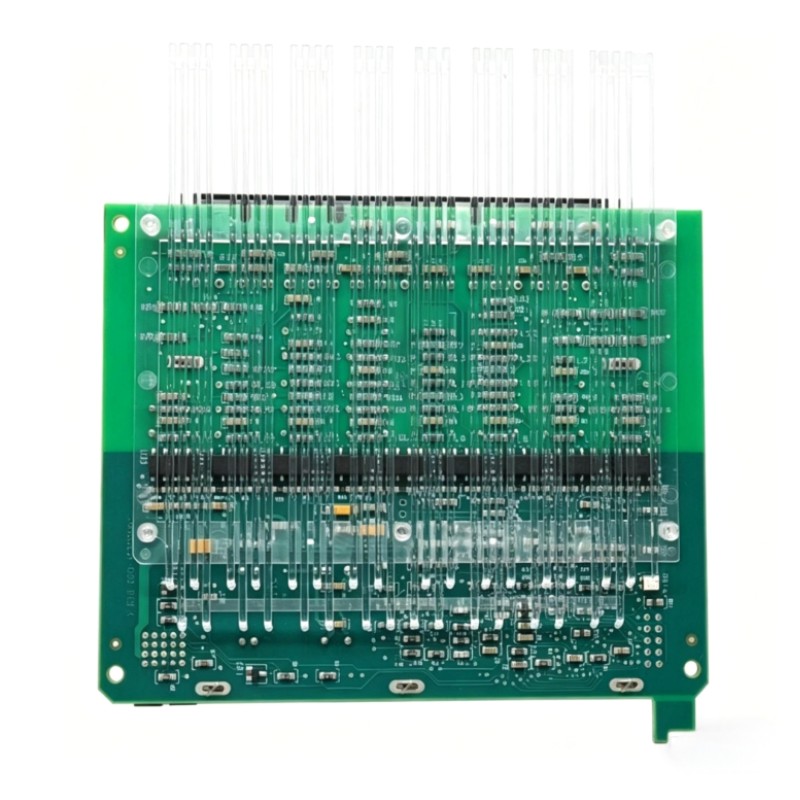

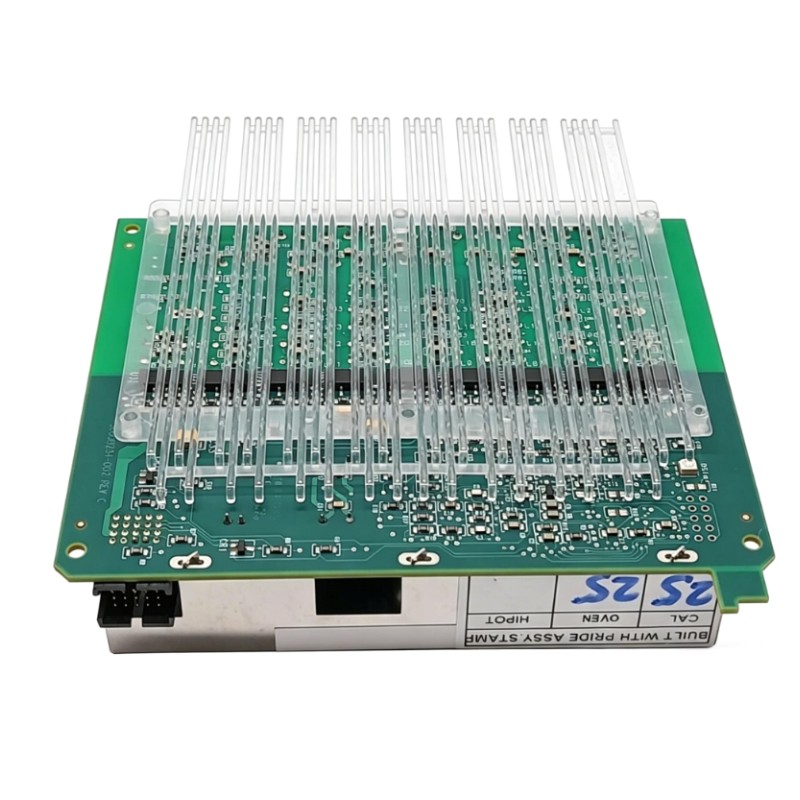

Honeywell 900A16-0301 HC900 High-Level Analog Input Module
Honeywell 900A16-0301 HC900 High-Level Analog Input Module
0.0
Points
Brand:Honeywell DCS Item No.:900A16-0301 Product Origin:USA Product Dimensions:144.2 x 127 x 30 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The 900A16-0301 is part of Honeywell’s HC900 control system I/O architecture, serving as a high-level analog input module for precise data acquisition from industrial field devices. It plays a critical role in converting real-world analog signals into reliable digital information used for process control and monitoring.
Designed for demanding industrial environments, the module emphasizes signal integrity, isolation, and system-level synchronization. Its architecture supports stable performance in complex automation systems where accuracy and reliability are essential for safe and efficient operations.
Technical Specifications
Parameter
Specification
Product Type
High-Level Analog Input Module
Model
900A16-0301
Input Channels
16 configurable channels
Input Types
Voltage (0–10 V), Current (0–20 mA, 4–20 mA)
System Compatibility
Honeywell ControlEdge HC900
Isolation
Channel-to-channel and system isolation
A/D Resolution
15-bit class
Update Rate
~100 ms per module
Operating Environment
Industrial automation systems
Dimensions
144.2 × 127 × 30 mm
Weight
0.25 kg
Recommended Related Models
Model
Product Name
900A01-0001
Honeywell HC900 Standard Analog Input Module
900A16-0302
Honeywell Enhanced Analog Input Module
900B16-0101
Honeywell Universal Input Module
900C50-0001
Honeywell Signal Conditioning Module
Popular Related Models
Model
Product Name
900A08-0201
Honeywell 8-Channel Analog Input Module
900A04-0101
Honeywell Compact Analog Input Module
900R08-0001
Honeywell Rack Interface Module
CPCHAS-0001
Honeywell HC900 Controller Chassis
Typical Industrial Applications
• Process control systems in chemical and petrochemical plants for monitoring pressure, temperature, and flow signals
• Oil and gas production facilities for real-time acquisition of critical analog field data
• Power generation plants for turbine, boiler, and auxiliary system signal monitoring
• Water and wastewater treatment systems for continuous process variable measurement and control
• Industrial automation systems requiring multi-channel high-level analog signal integration
Key Engineering Advantages
• 16-channel high-level analog input architecture supports flexible multi-signal acquisition
• High accuracy signal conversion ensures reliable process monitoring and control
• Channel-to-channel and system isolation improves noise immunity and operational safety
• Supports voltage and current input types for versatile field device compatibility
• Designed for synchronization with HC900 control execution for reduced data latency
• Industrial-grade design ensures stable performance in continuous operation environments
Technical FAQs
1. What is the main function of the 900A16-0301 module?
It acquires analog signals from field instruments and converts them into digital data for the HC900 control system.
2. How many input channels does it support?
It supports up to 16 configurable analog input channels.
3. What types of signals can it process?
It supports standard industrial voltage and current signals such as 0–10 V and 4–20 mA.
4. Does the module provide electrical isolation?
Yes, it includes channel-to-channel and channel-to-system isolation for improved safety.
5. Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 operation in process control environments.
6. How does it handle signal accuracy?
It provides high-precision conversion with low drift over long-term operation.
7. Can it be used in harsh environments?
Yes, it is built for industrial conditions with electrical noise and temperature variation.
8. Does it support real-time data acquisition?
Yes, it is synchronized with system control execution for low-latency data updates.
9. Is it compatible with Honeywell HC900 systems?
Yes, it is fully designed for integration with the HC900 controller platform.
10. Does it require frequent maintenance?
No, it is engineered for stable operation with minimal maintenance requirements.
