Introduction

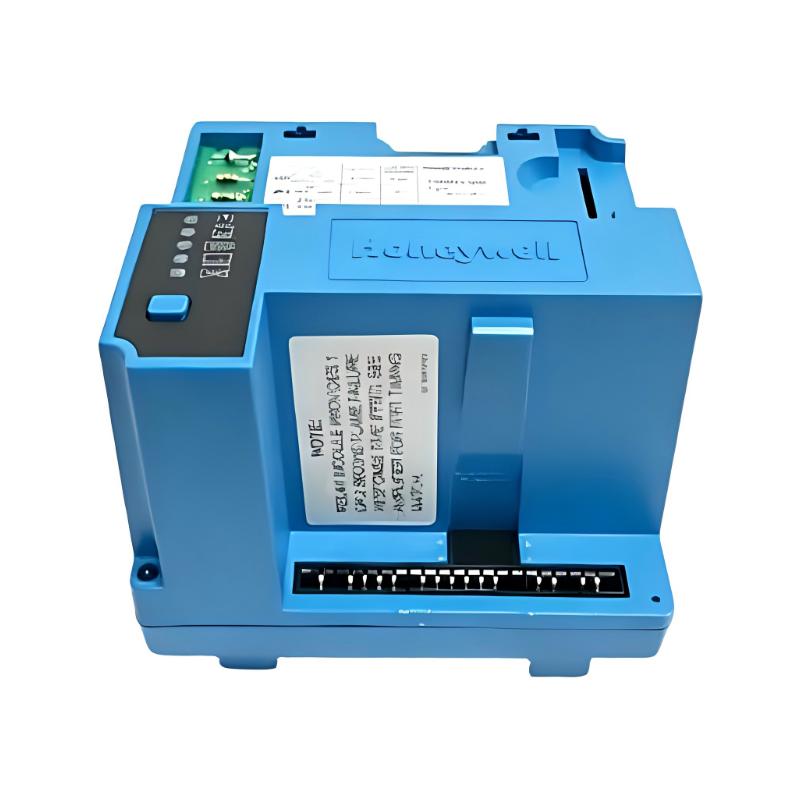

The RM7830A1011 is part of Honeywell’s 7800 series burner control platform, widely used for industrial combustion safety and automation. It functions as the central logic controller for burner sequencing, ensuring precise ignition timing, flame monitoring, and safe shutdown procedures.

Designed for demanding industrial heating systems, it combines advanced control logic with real-time diagnostics to enhance operational safety and efficiency. Its modular architecture allows integration with various flame detection technologies and system configurations, making it a flexible solution for modern burner management applications.

Technical Specifications

Parameter	Specification
Product Type	Integrated Burner Control Module
Model	RM7830A1011
Series	Honeywell 7800 Series
Control Type	Microprocessor-based burner management
Voltage	120 VAC
Frequency	50/60 Hz
Function	Burner sequencing, flame supervision, modulation control
Diagnostics	Built-in LED and fault history memory
Safety Features	Lockout interlocks, flame failure detection
Operating Environment	Industrial combustion and heating systems
Dimensions	127 x 127 x 133 mm
Weight	0.73 kg

Recommended Related Models

Model	Product Name
RM7840L1016	Honeywell Burner Control Module (Advanced Sequencing)
RM7800L1087	Honeywell Standard Burner Control Relay Module
EC7850A1010	Honeywell Burner Management Relay Module
S7810A1009	Honeywell Purge Timer Module for Burner Systems

Popular Related Models

Model	Product Name
RM7823A1016	Honeywell Burner Control Relay Module
RM7838A1014	Honeywell Enhanced Burner Management Controller
C7012A1145	Honeywell Flame Detector Sensor
R7847A1026	Honeywell Flame Signal Amplifier Module

Typical Industrial Applications

• Industrial boilers for safe burner sequencing and combustion control

• Oil and gas heating systems requiring precise flame supervision and modulation

• Power plant auxiliary burners for controlled ignition and shutdown sequences

• Process heating equipment in chemical and petrochemical industries

• Commercial HVAC and large-scale heating systems requiring automated burner management

Key Engineering Advantages

• Microprocessor-based control ensures precise burner sequencing and timing accuracy

• Integrated flame supervision enhances combustion safety and reliability

• Built-in self-diagnostics simplify troubleshooting and reduce downtime

• Supports fully modulating burner operation for improved energy efficiency

• Non-volatile memory retains fault history and system status after power loss

• Plug-in flame amplifier compatibility allows flexible system configuration

Technical FAQs

1. What is the main function of the RM7830A1011?
It manages burner sequencing, ignition control, and flame supervision in industrial combustion systems.

2. Is it suitable for modulating burners?
Yes, it is specifically designed for fully modulating burner applications.

3. How does it ensure burner safety?
It continuously monitors flame presence and initiates lockout if unsafe conditions are detected.

4. Does it support diagnostic functions?
Yes, it includes built-in diagnostics and LED indicators for system status and fault identification.

5. What happens after a power failure?
Non-volatile memory retains operational history and lockout status for system recovery.

6. Can it integrate with flame detectors?
Yes, it supports multiple plug-in flame amplifier types for different detection technologies.

7. Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 burner management in industrial environments.

8. Does it support post-purge functionality?
Yes, it includes a timed post-purge cycle to improve combustion safety and efficiency.

9. Can it be used in retrofit systems?
Yes, it is compatible with existing Honeywell 7800 series burner control architectures.

10. What ensures its operational reliability?
Its microprocessor control, diagnostics, and industrial-grade design ensure stable long-term performance.
