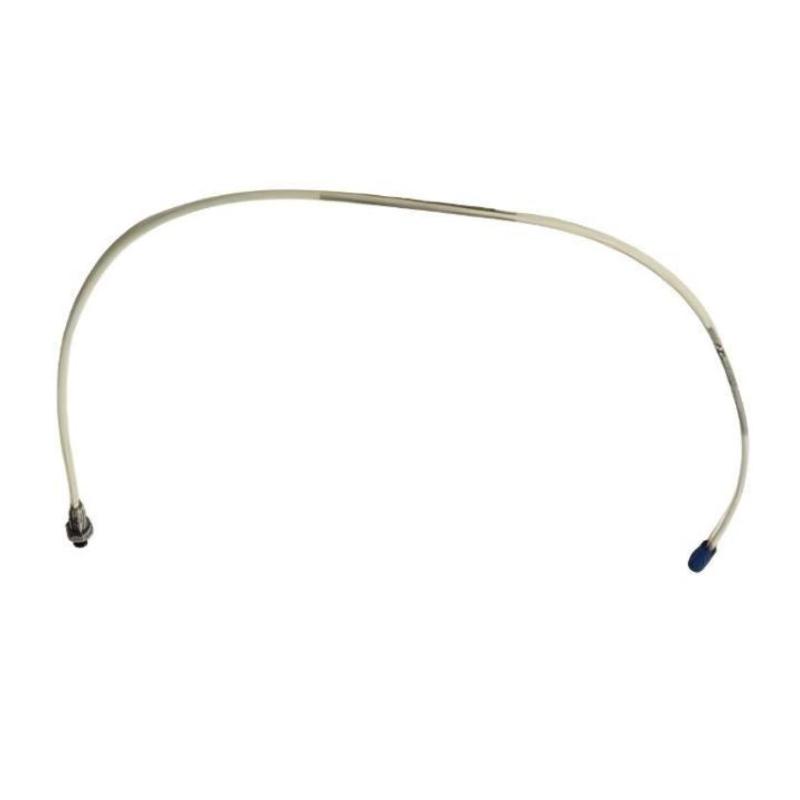

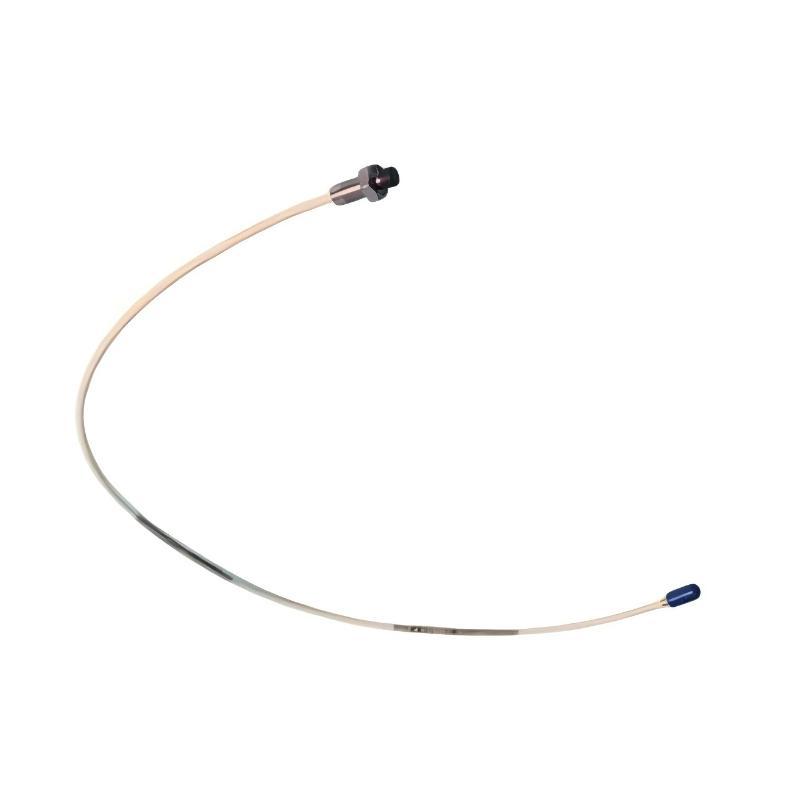

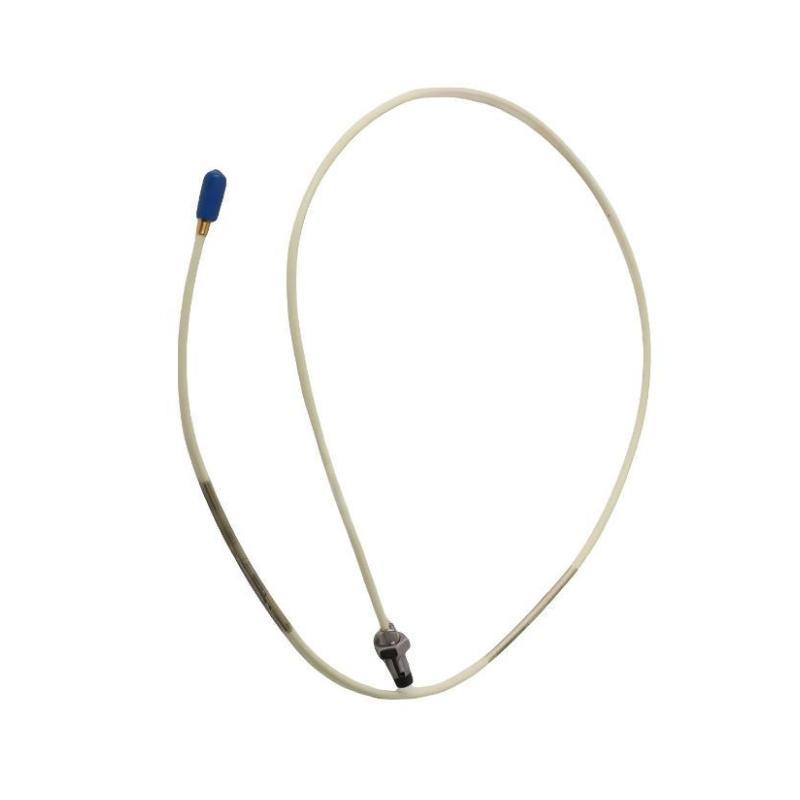

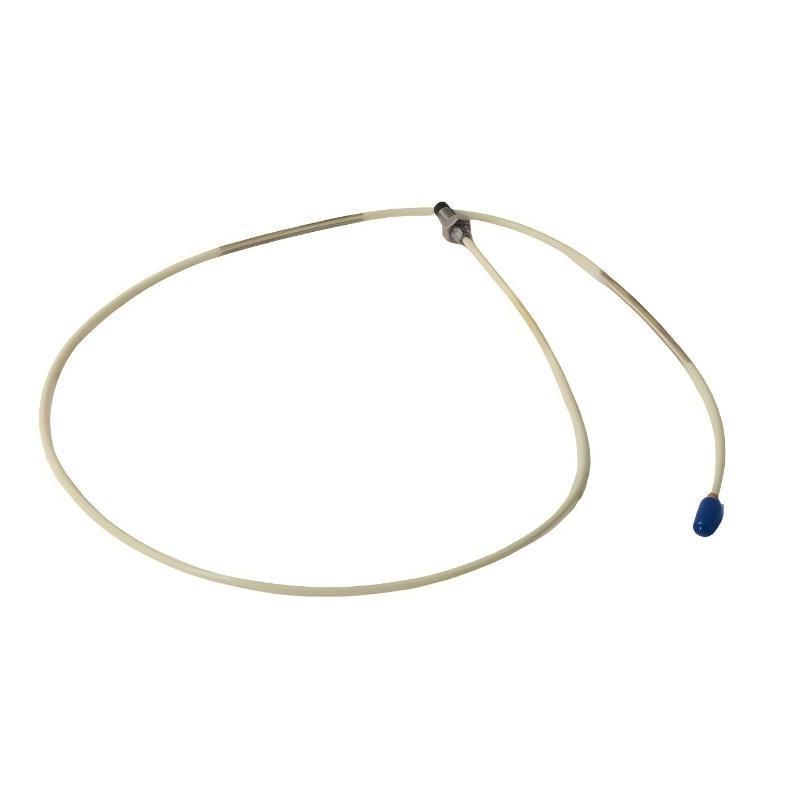

Bently Nevada 21504-000-016-05-02 7200 8 mm Standard Mounting Probe
Bently Nevada 21504-000-016-05-02 7200 8 mm Standard Mounting Probe
0.0
Points
Brand:Bently Nevada PLC Item No.:21504-000-016-05-02 Product Origin:USA Product Dimensions:Total Length: 0.5 meter Product Weight:0.22 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 21504 series probes are widely recognized in industrial vibration monitoring systems for their reliability and precision. The 21504-000-016-05-02 model features an 8 mm sensing tip and a 0.5-meter cable, making it suitable for compact installations while maintaining high-performance measurement capabilities.
As part of the 7200 proximity transducer system, it works in combination with extension cables and signal conditioners to form a complete monitoring solution. Its rugged design and consistent performance make it ideal for mission-critical rotating machinery applications.
Technical Specifications
Parameter
Specification
Product Type
Standard Mounting Proximity Probe
Model
21504-000-016-05-02
Series
7200 Proximity Transducer System
Probe Diameter
8 mm
Measurement Type
Non-contact displacement & vibration
Measurement Principle
Eddy current
Mounting Type
Standard threaded (3/8-24)
Connector Type
Miniature coaxial connector
Total Length
0.5 meter
Application
Rotating machinery monitoring
Operating Environment
Industrial systems
Weight
0.22 kg
Recommended Related Models
Model
Product Name
21504-00-08-05-02
Bently Nevada 7200 8 mm Standard Mount Probe
21504-00-16-10-02
Bently Nevada 7200 8 mm Standard Mount Probe
330103-00-05-10-02-00
Bently Nevada 3300 XL 8 mm Proximity Probe
330130-040-00-00
Bently Nevada Proximitor Sensor
Popular Related Models
Model
Product Name
3500/42M
Bently Nevada Proximitor/Seismic Monitor Module
3500/22M
Bently Nevada Transient Data Interface Module
3300 XL Series
Bently Nevada Proximity Transducer System
190501-09-99
Bently Nevada Velomitor CT Velocity Sensor
Typical Industrial Applications
• Shaft vibration monitoring in turbines, compressors, and pumps
• Axial position measurement for thrust bearing protection systems
• Gearbox and rotating equipment condition monitoring
• Power generation and petrochemical process machinery diagnostics
• Predictive maintenance systems for early fault detection
Key Engineering Advantages
• Eddy current sensing technology enables precise non-contact displacement measurement
• 8 mm probe diameter balances compact installation with high measurement accuracy
• Standard mounting design simplifies installation and system integration
• Stable signal output supports real-time vibration monitoring
• مقاust stainless-steel construction ensures durability in harsh environments
• Compatible with Bently Nevada 7200 proximity transducer systems
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and displacement using non-contact eddy current technology.
2. What systems is it compatible with?
It is designed for Bently Nevada 7200 series proximity transducer systems.
3. What type of measurement does it provide?
It provides displacement and vibration measurements of rotating shafts.
4. Is it a contact sensor?
No, it operates without physical contact with the measured surface.
5. What mounting type does it use?
It uses a standard threaded mounting configuration.
6. Can it be used in high-temperature environments?
Yes, it is designed for a wide range of industrial operating conditions.
7. Does it require additional components?
Yes, it works together with extension cables and proximitor sensors.
8. Is it suitable for continuous monitoring?
Yes, it is designed for continuous operation in machinery protection systems.
9. What ensures measurement accuracy?
Stable eddy current sensing and precise probe construction ensure accuracy.
10. What industries commonly use this probe?
Power generation, oil & gas, petrochemical, and heavy industry sectors.
