Honeywell 900A16-0101 50008235-001 HC900 High-Level Analog Input Module
Honeywell 900A16-0101 50008235-001 HC900 High-Level Analog Input Module
0.0
Points
Brand:Honeywell DCS Item No.:900A16-0101 Product Origin:USA Product Dimensions:137 x 35.6 x 137.16 mm Product Weight:0.397 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

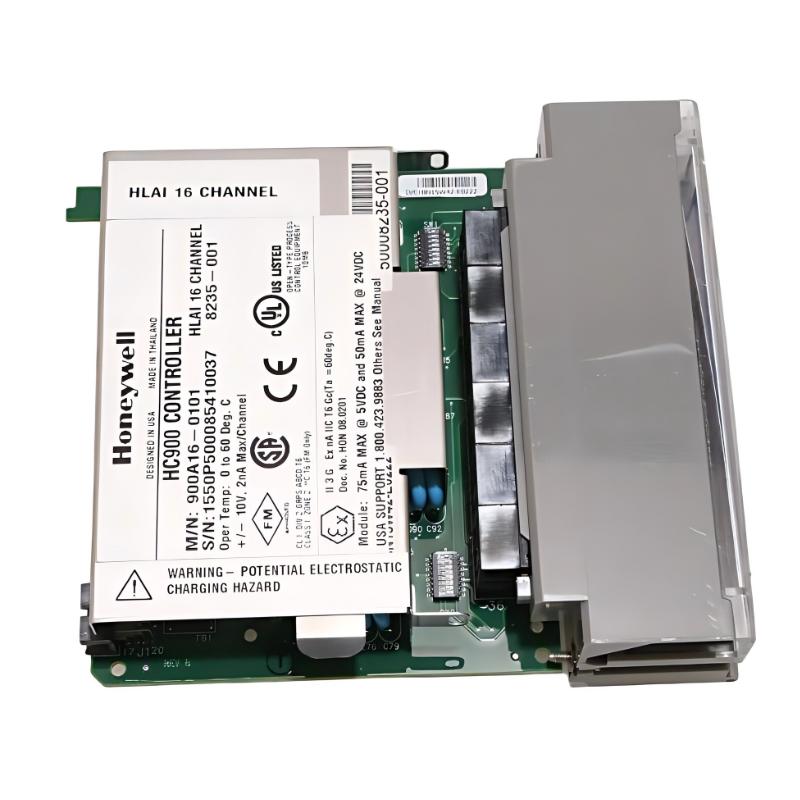

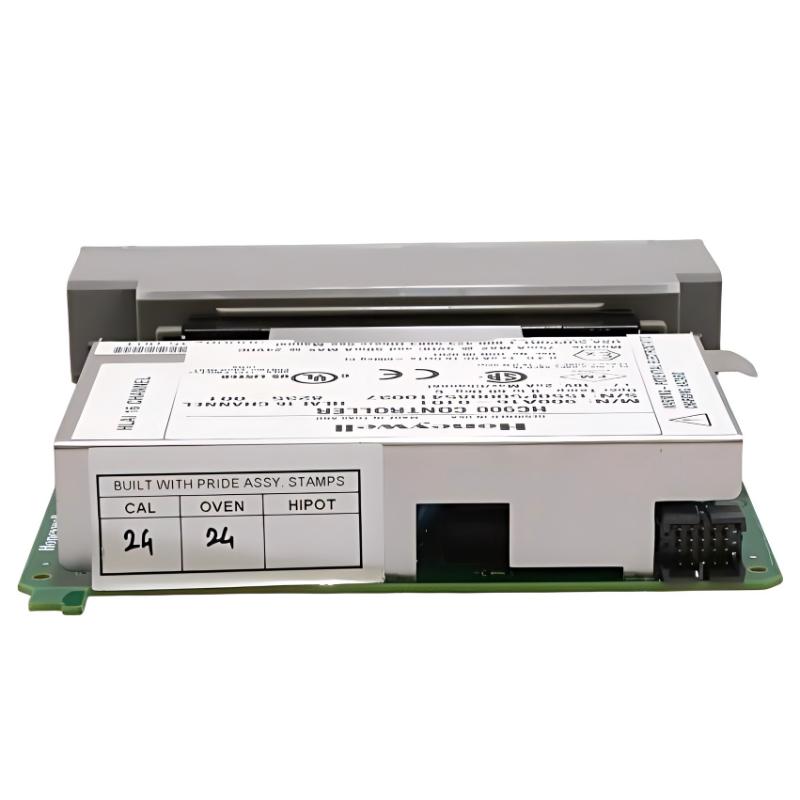

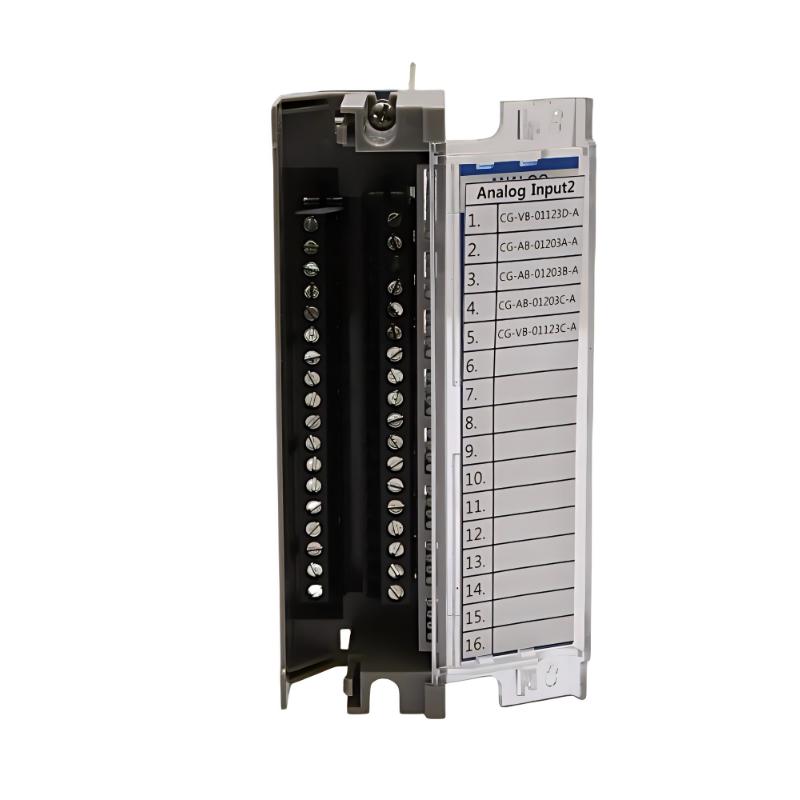

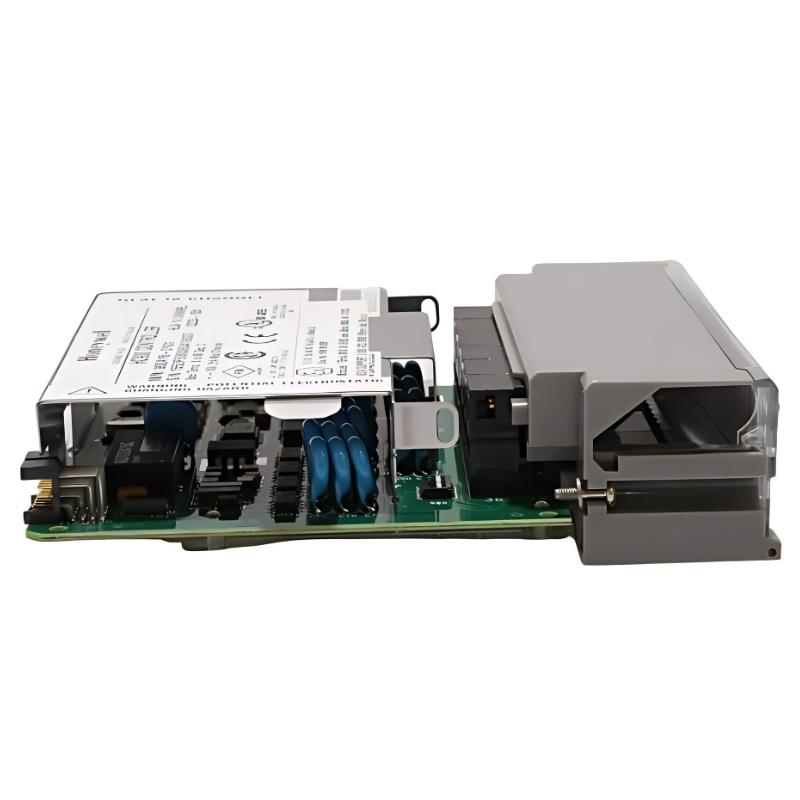

The 900A16-0101 HC900 High-Level Analog Input Module is a key component in Honeywell’s distributed control architecture, designed to interface directly with field instruments and process sensors. It enables reliable acquisition of analog signals and converts them into high-precision digital data for control and monitoring purposes.
Widely used in process industries such as oil & gas, power generation, and chemical processing, this module supports stable and accurate data acquisition even in electrically noisy environments. Its isolated multi-channel architecture ensures both safety and measurement integrity in critical automation systems.
Technical Specifications
Parameter
Specification
Product Type
High-Level Analog Input Module
Model
900A16-0101 (50008235-001)
System Compatibility
Honeywell HC900
Input Channels
16 isolated channels
Input Types
Voltage (V), Current (mA)
Input Impedance
>1 MΩ (voltage), 250 Ω (current)
Isolation
400 VDC point-to-point, 1 kV to logic
A/D Resolution
±15 bits
Update Rate
100 ms
Accuracy
±0.1% typical
Function
Analog signal acquisition and conversion
Operating Environment
Industrial process control
Dimensions
137 × 35.6 × 137.16 mm
Weight
0.397 kg
Recommended Related Models
Model
Product Name
900A16-0103
Honeywell HC900 Advanced Analog Input Module
900A01-0001
Honeywell Low-Level Analog Input Module
900B01-0101
Honeywell Analog Output Module
900C52-0141
Honeywell CPU Module for HC900
Popular Related Models
Model
Product Name
Honeywell HC900
Process Control System Platform
Honeywell ControlEdge
Distributed Control Architecture
900U01 Series
Universal Input/Output Modules
Honeywell Experion PKS
Advanced Process Control System
Typical Industrial Applications
• Process variable acquisition in chemical and petrochemical plants
• Temperature, pressure, and flow signal monitoring in power generation systems
• Industrial automation and batch control systems
• SCADA and DCS data acquisition for field instrumentation
• General-purpose analog signal integration in HC900 control architectures
Key Engineering Advantages
• 16-channel high-level analog input design supports dense signal acquisition
• Flexible support for voltage and current inputs on each channel
• High-resolution A/D conversion ensures accurate process measurement
• Point-to-point galvanic isolation improves signal integrity and system safety
• Parallel processing architecture reduces scan time impact
• Stable long-term drift performance for continuous industrial operation
Technical FAQs
1. What is the main function of this module?
It converts analog field signals into digital values for the HC900 control system.
2. How many input channels does it support?
It supports 16 isolated analog input channels.
3. What types of signals can it accept?
It supports voltage (V) and current (mA) inputs, configurable per channel.
4. Is each channel isolated?
Yes, it provides point-to-point galvanic isolation for improved noise immunity.
5. What is the role of the A/D converter?
It performs analog-to-digital conversion for all input signals.
6. Does it support real-time processing?
Yes, inputs are processed in synchronization with the controller execution cycle.
7. Is calibration required?
Factory and field calibration data are stored in non-volatile memory.
8. What ensures signal stability?
Electrical isolation and high common-mode noise rejection ensure stable readings.
9. Can it handle industrial noise environments?
Yes, it is designed for high electromagnetic noise rejection.
10. What system is it used with?
It is used in the Honeywell ControlEdge HC900 system.
