Introduction

The RM7840E1016 is part of Honeywell’s 7800 series burner control system, designed to provide integrated flame safety and burner sequencing for industrial combustion applications. It acts as the central safety and control module between the burner hardware and the supervisory system.

In industrial heating and power generation environments, it ensures safe fuel admission only after proper flame establishment and continuously monitors flame presence during operation. Its microprocessor-based architecture enables reliable, deterministic control while supporting advanced safety interlocks and diagnostic capabilities.

Technical Specifications

Parameter	Specification
Product Type	Burner Management Controller
Model	RM7840E1016
System Series	Honeywell 7800 Series
Control Type	Microprocessor-based relay control
Application	Single burner combustion systems
Fuel Types	Gas, oil, coal, combination fuels
Supply Voltage	120 Vac (±10%)
Frequency	50/60 Hz
Flame Establishing Time	Pilot: 4–10 sec, Main: 10–15 sec
Post Purge Time	Up to 15 sec
Memory Type	Non-volatile memory
Communication	Optional system interface modules
Safety Functions	Flame monitoring, interlock control, lockout protection
Operating Environment	Industrial combustion systems
Dimensions	127 × 127 × 133 mm
Weight	0.822 kg

Recommended Related Models

Model	Product Name
RM7840G1015	Honeywell Burner Control Relay Module
RM7800L	Honeywell Burner Management System Module
R7847	Honeywell Flame Signal Amplifier
S7800A	Honeywell Keyboard Display Module

Popular Related Models

Model	Product Name
Honeywell 7800 Series	Burner Control System Platform
Honeywell RM7890	Burner Control Relay Module
Honeywell C7024	Flame Detector Series
Honeywell Experion PKS	Process Automation System

Typical Industrial Applications

• Industrial boiler burner management systems

• Power plant combustion control systems

• Oil and gas fired furnace control applications

• Process heating systems in petrochemical plants

• Industrial steam generation and thermal systems

Key Engineering Advantages

• Microprocessor-based control ensures precise burner sequencing

• Integrated flame safeguard logic improves operational safety

• Supports multiple fuel types (gas, oil, coal, or combination)

• Built-in interlock monitoring enhances system protection

• Non-volatile memory retains fault and history data after power loss

• Flexible ignition timing (pilot and main flame establishing periods)

Technical FAQs

1. What is the main function of this controller?
It manages burner ignition, flame detection, and safety interlocks in combustion systems.

2. What types of fuel does it support?
It supports gas, oil, coal, and combination fuel systems.

3. Is it a PLC?
No, it is a dedicated burner management relay controller.

4. What does it control in a burner system?
It controls ignition sequence, fuel valves, and flame supervision.

5. Does it store fault history?
Yes, it uses non-volatile memory to retain lockout and event history.

6. What ensures burner safety?
Flame detection, interlock monitoring, and lockout logic ensure safe operation.

7. Can it operate continuously?
Yes, it is designed for continuous industrial burner applications.

8. Does it require external programming?
No programming is required; configuration is done via system setup components.

9. What type of flame detection is supported?
It is compatible with Honeywell flame detectors (UV, IR, and rectification types).

10. What is its role in combustion systems?
It ensures safe startup, operation, and shutdown of industrial burners.

Look forward to your comments!Comment

Latest comments

Tags:	RM7840E1016

Honeywell DCS

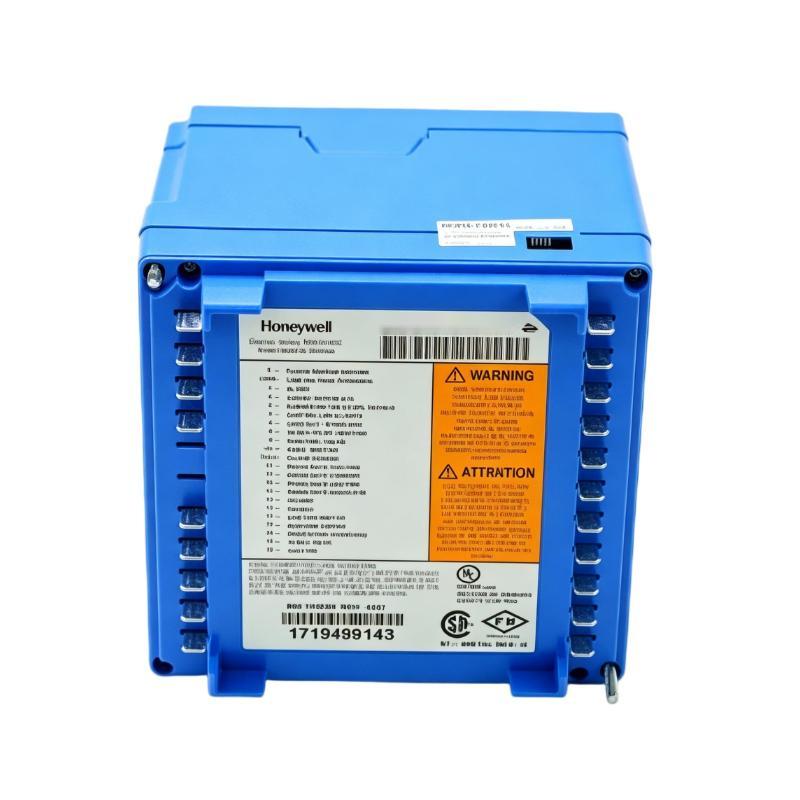

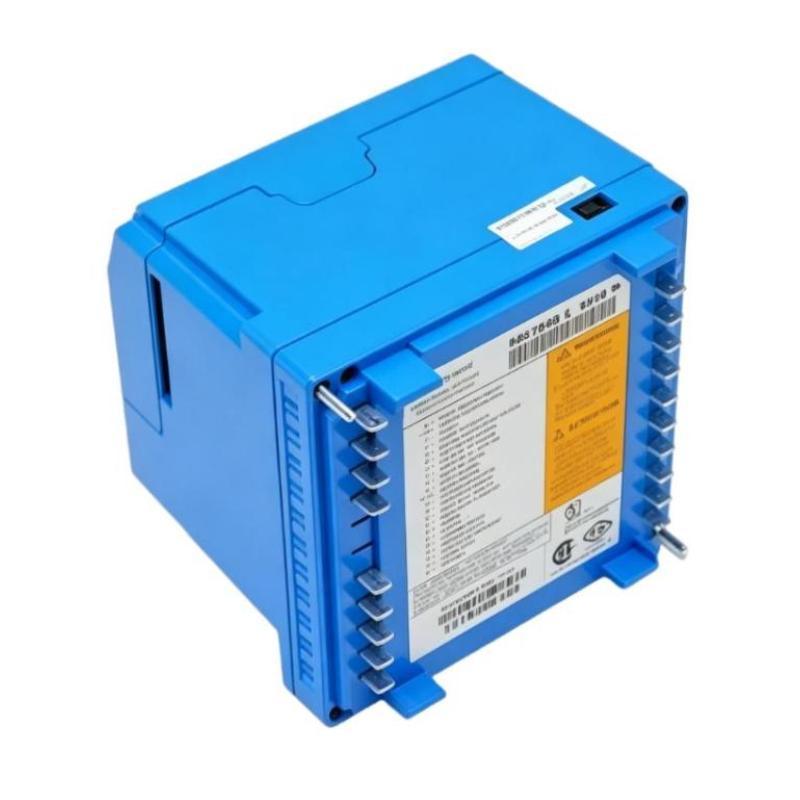

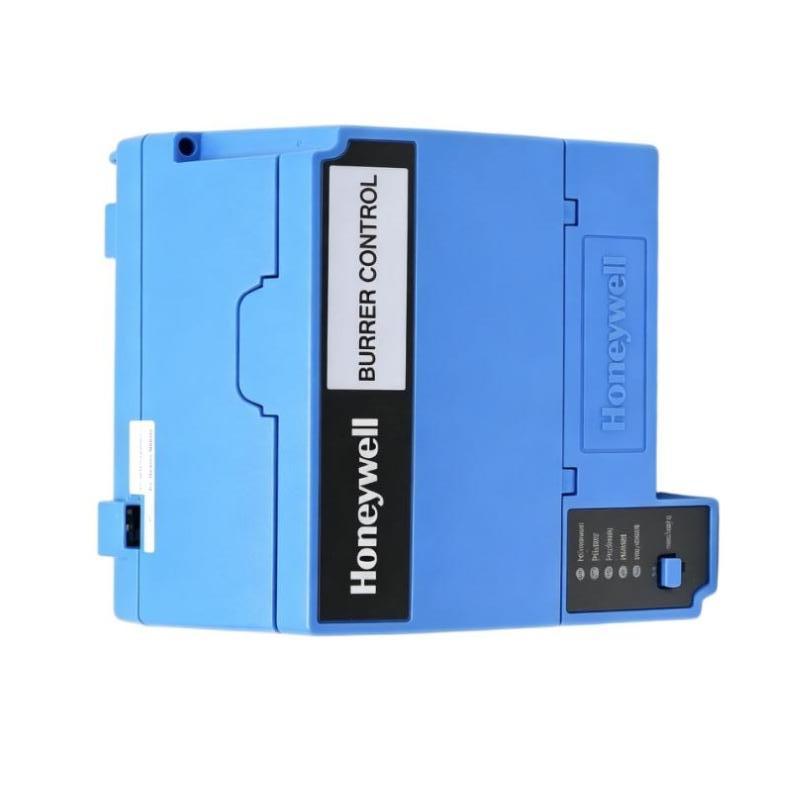

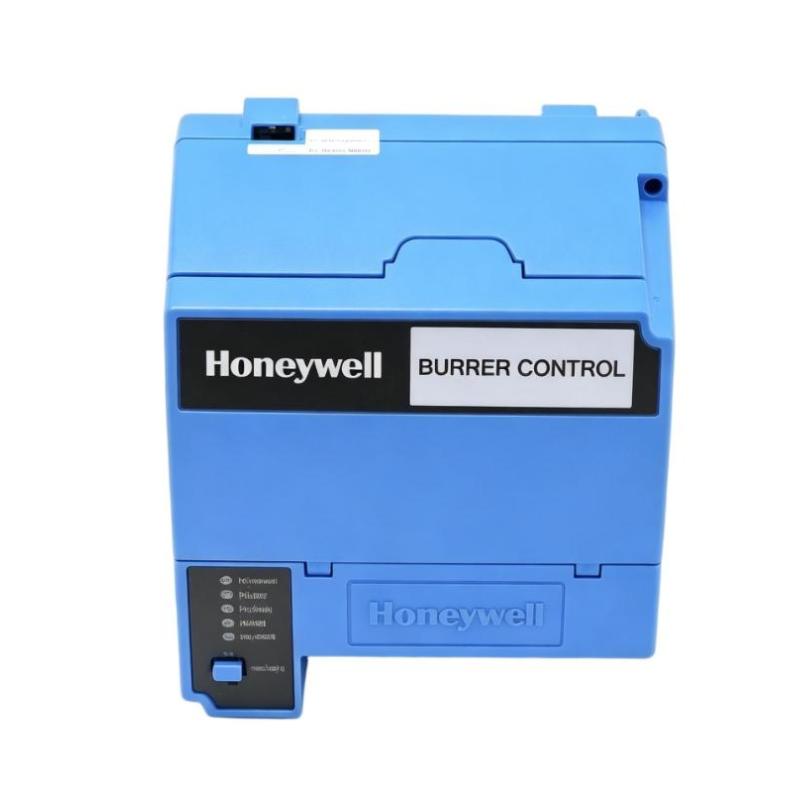

Honeywell RM7840E1016 Burner Controller
