Brand:GE Fanuc PLC Item No.:GE IC697MDL341 Product Origin: USA Product Dimensions:35 mm × 130 mm × 135 mm Product Weight:1.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

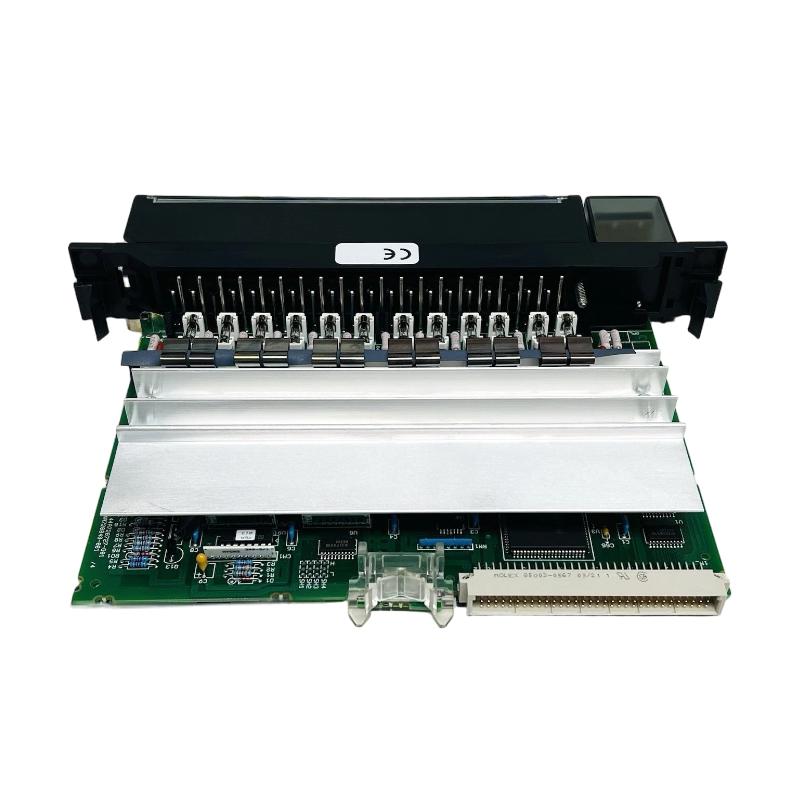

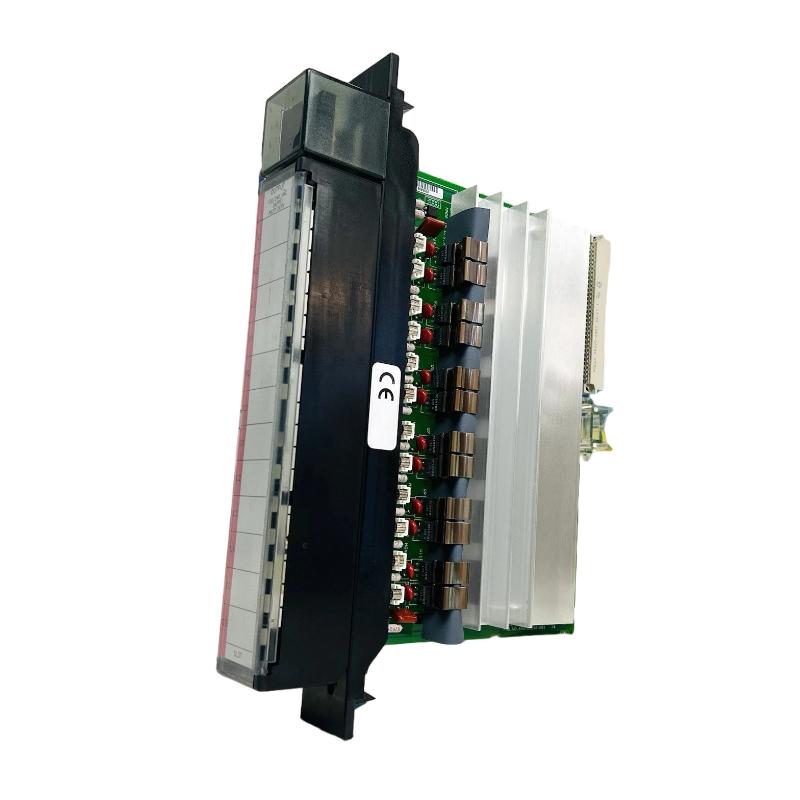

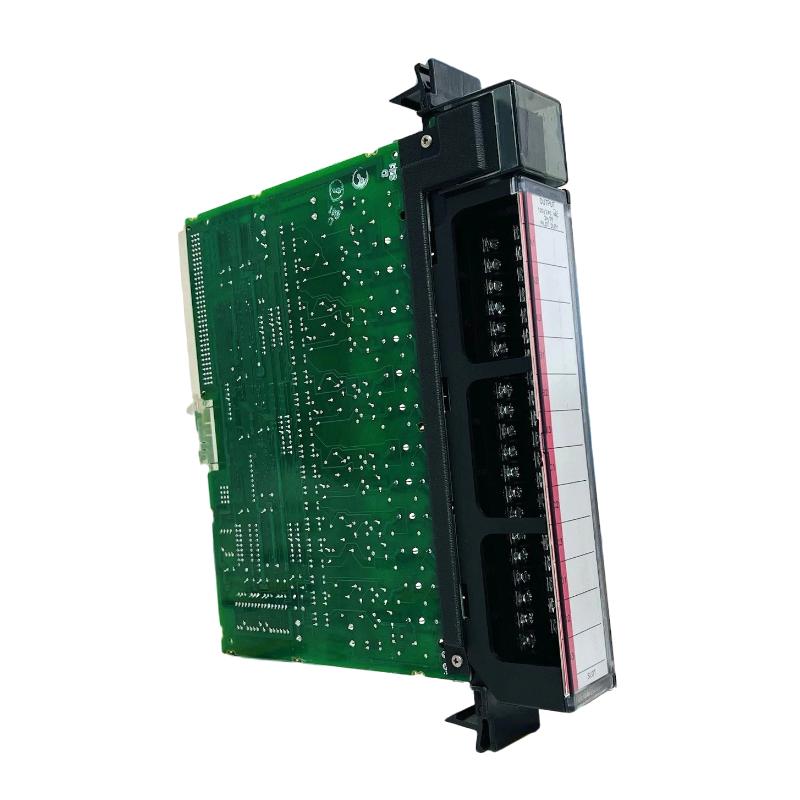

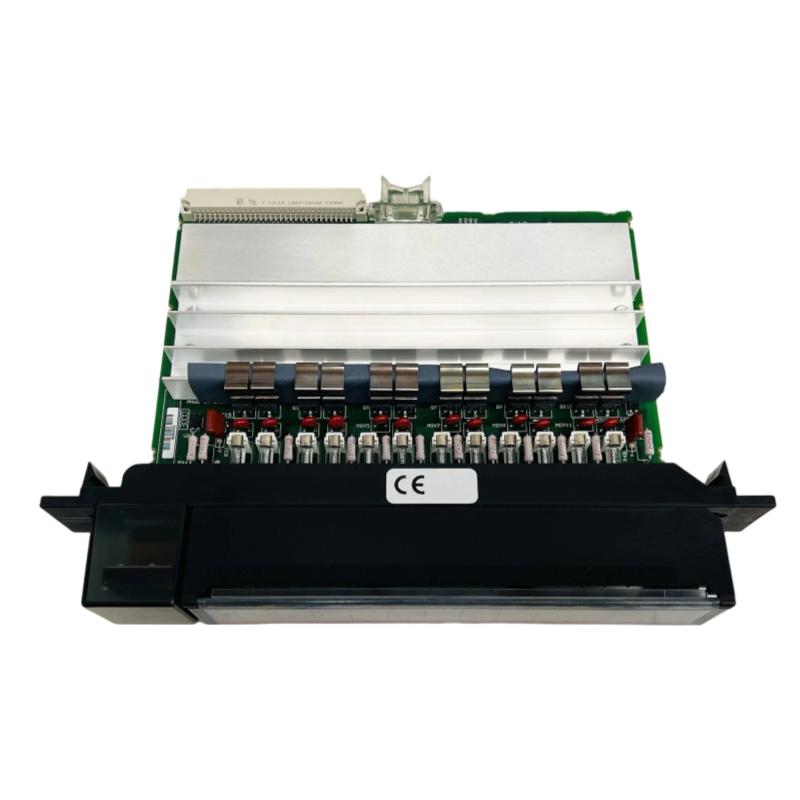

The GE IC697MDL341 is a discrete AC output module for the GE Fanuc Series 90-70 PLC system. It is designed to control industrial AC loads such as relays, solenoids, contactors, motor starters, and indicator lamps, providing reliable switching for automation systems.
It is a medium-density, high-isolation output module widely used in industrial environments requiring multi-phase wiring flexibility and strong inductive load capability.
Technical Specifications
The IC697MDL341 is a 12-point 120/240 VAC AC output module with individual isolation.
Parameter
Specification
Model
IC697MDL341
Product Type
Discrete Output Module
Series
GE Fanuc Series 90-70
Output Type
AC Digital Output
Number of Outputs
12 points
Output Configuration
Individually isolated points
Rated Voltage
120 / 240 VAC
Operating Range
85–264 VAC
Frequency
47–63 Hz
Output Current
2 A per point
Total Module Current
~16 A
Inrush Capacity
Up to 10× rated current (short duration)
Protection
Each output fused (3.15 A replaceable fuse)
Isolation
1500 VAC (output to backplane), group isolation support
